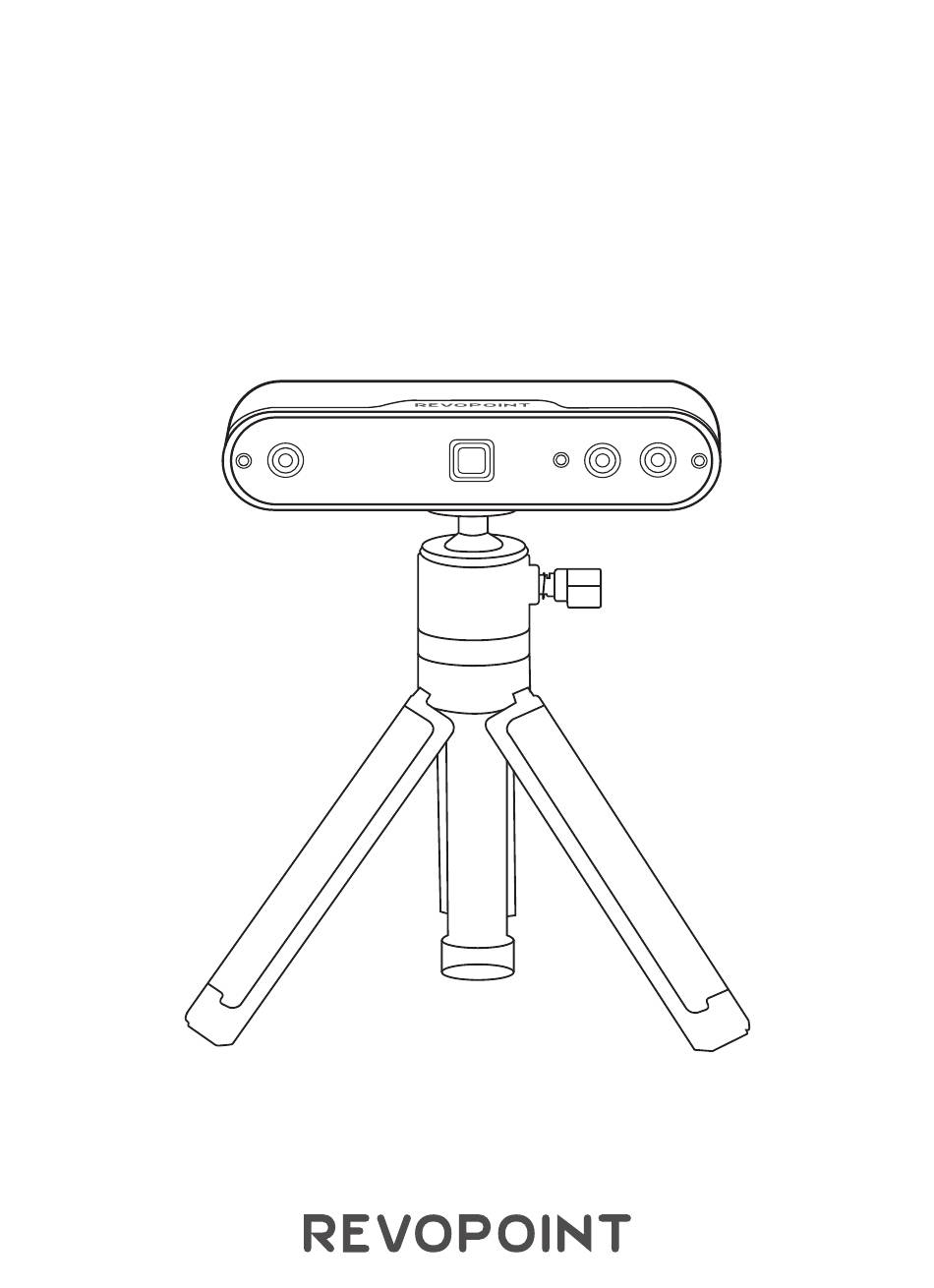

- Page 1 INSPIRE 3D SCANNER Quick Start Guide V1.0...
-
Page 2: Table Of Contents
Connect INSPIRE to a PC via USB Connect INSPIRE to a Phone via Wi-Fi Mini Turntable Connection Setup the Scanning Environment Introduction to Revo Scan 5 Scanning Workflow Post-processing Export the Model Online Support 2023 REVOPOINT 3D ALL RIGHTS RESERVED... -
Page 3: About Inspire
Infrared Fill Light What’s in the Box? Mini Turntable INSPIRE 3D Scanner USB Type-A to C Cable Type-C Adapter Turntable USB Cable Tripod Turntable Topper Sample Bust Calibration Board Markers, Glue Tack, Magic Mat 2023 REVOPOINT 3D ALL RIGHTS RESERVED... -
Page 4: Software Download
Revo Scan 5 .... Get it on Google Play .... Download on the APP Store Download it at www.revopoint3d.com/download/ Scanner Connection Connect INSPIRE to a PC via USB 2023 REVOPOINT 3D ALL RIGHTS RESERVED... - Page 5 Ensure your USB 3.0 port is not damaged or worn out and its output meets the minimum power requirements 5V/1A. · If there is no Type-A port on your computer, use the Type-C Adapter. · The scanner is powered when the INSPIRE’s power indicator turns solid green. 2023 REVOPOINT 3D ALL RIGHTS RESERVED...
-
Page 6: Connect Inspire To A Phone Via Wi-Fi
· The Power Bank Handle is sold separately. You can use your own power bank if it’s rated 5V/1A or power it with an outlet. · The scanner is powered when the INSPIRE’s power indicator turns solid green. 2023 REVOPOINT 3D ALL RIGHTS RESERVED... - Page 7 .... · Go to your smartphone’s Wi-Fi settings, search for the network called INSPIRE-REVO-XXXXXXX, and connect (No password is required). · Wait a few seconds for the scanner to connect. Wi-Fi Android & iOS 2023 REVOPOINT 3D ALL RIGHTS RESERVED...
-
Page 8: Mini Turntable Connection
· AC Adapter is not included. · The Mini Turntable's indicator turns solid green when powered. Then, move the switch left or right to adjust rotation direction and twist the dial to adjust the rotation speed. 2023 REVOPOINT 3D ALL RIGHTS RESERVED... -
Page 9: Setup The Scanning Environment
· Use the Magic Mat or a black bin bag as the background. · Check the Sample Bust to ensure that there are no shadows on its surface and that the overall lighting is even and bright. 2023 REVOPOINT 3D ALL RIGHTS RESERVED... -
Page 10: Introduction To Revo Scan 5
Toggle Color Scanning: The scanner captures the color and shape information of the object when scanning. [Texture Mapping] can be applied during post-processing. Untoggle Color Scanning: The scanner only captures the shape information of the object when scanning. [Texture Mapping] is not supported during post-processing. 2023 REVOPOINT 3D ALL RIGHTS RESERVED... - Page 11 · Drag the slider bar to increase or decrease exposure. · If there are large red areas on the object, it indicates overexposure. If there are large blue areas on the objects, it indicates underexposure. Correct Exposure Underexposed Overexposed 2023 REVOPOINT 3D ALL RIGHTS RESERVED...
- Page 12 · Blue shows the already scanned area, while green shows the area currently seen by the scanner. · For handheld scanning, slowly and steadily move the scanner around the object to prevent tracking loss. 2023 REVOPOINT 3D ALL RIGHTS RESERVED...
-
Page 13: Post-Processing
PLY, OBJ, or STL formats. Apply textures or color information to the mesh. It can be exported in PLY or Texture OBJ formats. Export the Model Export the point clouds, mesh model, or texture model file. 2023 REVOPOINT 3D ALL RIGHTS RESERVED... -
Page 14: Online Support
Online Support WE ARE HERE FOR YOU Contact Revopoint Contact Revopoint Tech Support Customer Support SUBSCRIBE FOR MORE INFO This content is subject to change. COPYRIGHT © 2023 REVOPOINT 3D ALL RIGHTS RESERVED.
