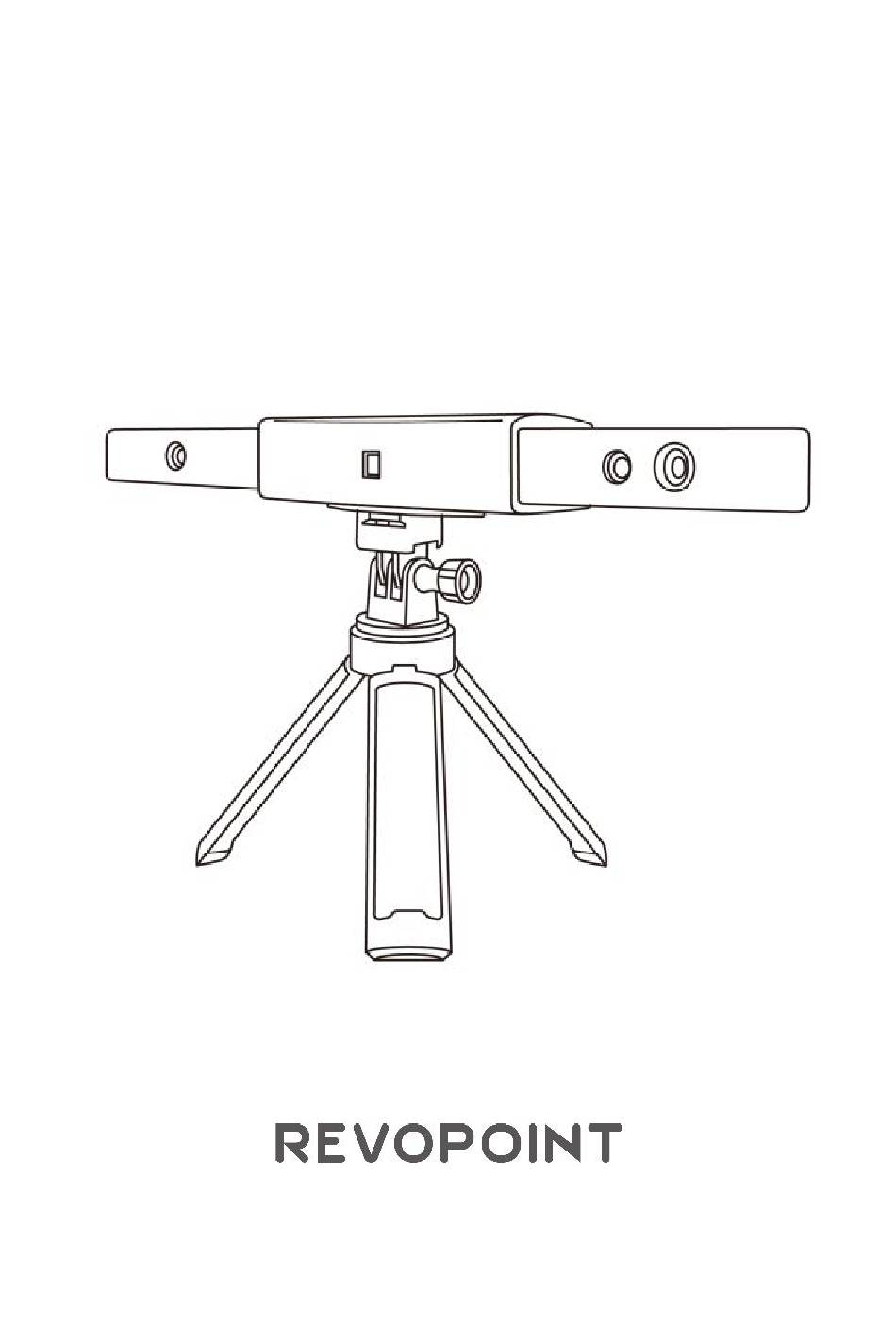

- Page 1 RANGE 3D SCANNER Quick Start Guide V1.0...
-
Page 4: Table Of Contents
System Requirements ................6 Connection Methods ................6 Connect the RANGE to a PC Via USB............. 6 Connect the RANGE to a PC Via Wi-Fi ........... 8 RANGE on Smartphones ................... 9 System Requirements ................9 Connection Methods ................9 Connect the RANGE to an Android Phone via USB ......10... -
Page 5: Read Before Your First Scan
Read Before Your First Scan Software Download To use your Revopoint RANGE 3D Scanner, you must download the Revo Scan software. It can be found on Revopoint’s website for Windows and macOS systems, and for Android or iOS smartphones, it can be found by searching for “Revo Scan”... -
Page 6: Color Scanning
Color Scanning If you want to accurately capture an object’s color during a scan, please ensure that the object is evenly lit with soft light and that there are no dark or hard shadows. ©2023 REVOPOINT 3D ALL RIGHTS RESERVED 3... -
Page 7: About The Scanner

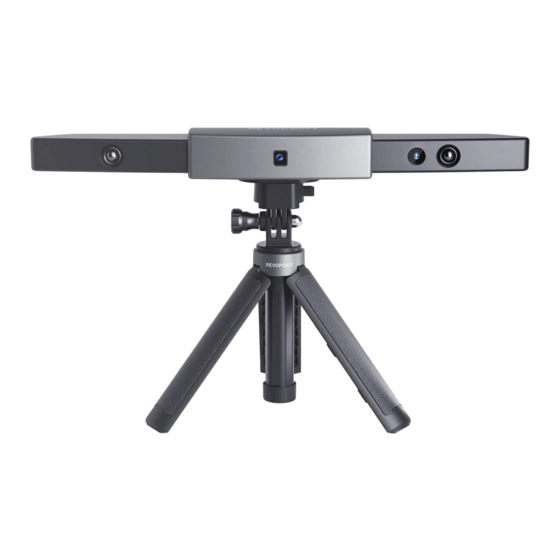

Its self-developed chip and intelligent algorithms combined with its more powerful projector and dual IR cameras with aspheric lens enable a single capture range of 360mm x 650mm, a working distance of 300mm to 800mm, a scanning speed of 12fps to 18fps, and a single- frame precision of up to 0.1mm. -
Page 8: What's In The Box
6. USB Cable (Micro-B to 2. Quick Mount Kit Type-A) 3. Tripod 7. Type-C Adapter 4. Phone Holder 8. 2-in-1 Mobile Cable 5. Power Bank Handle 9. Gifts (Markers, Glue Tack, Black Sheet) ©2023 REVOPOINT 3D ALL RIGHTS RESERVED 5... -
Page 9: Range On A Windows Or Mac Device
USB Mode √ √ Wi-Fi Mode √ √ Connect the RANGE to a PC Via USB Step 1: Screw the Quick Mount Kit onto the Tripod. Step 2: Clip the RANGE to the top. 6 ©2023 REVOPOINT 3D ALL RIGHTS RESERVED... - Page 10 Step 5: Open Revo Scan on your computer. Windows or macOS Note: 1) Connect the RANGE to a USB 3.0 port or above, as USB 2.0 will not supply sufficient operating power. Ensure your USB 3.0 port is not damaged or worn out.
-
Page 11: Connect The Range To A Pc Via Wi-Fi
Connect the RANGE to a PC Via Wi-Fi Step 1: Power the RANGE on with a power bank or an AC adapter. (Note: Do not plug it into your PC, or it will be in USB mode by default. ) Step 2: Connect the PC to the RANGE. -
Page 12: Range On Smartphones
Harmony OS is supported. RAM: iPhone: iPhone 8 Plus or models after iPad: 6th generation iPad or models after System Version: iOS 13.0 Connection Methods Android iOS/iPadOS USB Mode √ × Wi-Fi Mode √ √ ©2023 REVOPOINT 3D ALL RIGHTS RESERVED 9... -
Page 13: Connect The Range To An Android Phone Via Usb
USB Step 1: Screw the Phone Holder onto the Power Bank. Step 2: Clip the RANGE to the top of the Phone Holder. Step 3: Pull open the Phone Holder’s clamps and fit your smartphone. Step 4: Connect the Micro-B end of the 2-in-1 Mobile Cable to the RANGE’s port, Type-A to the Power Bank, and Type-C to an Android... -
Page 14: Connect The Range To A Phone Via Wi-Fi
RANGE Quick Start Guide Connect the RANGE to a Phone Via Wi-Fi Both Android and iOS Phones are compatible. Step 1: Power the RANGE on via the Power Bank Handle or a Socket. Socket Power Bank Handle Step 2: Connect the Smartphone to the RANGE. - Page 15 Step 3: Open Revo Scan on your phone. Note: If you have an iPhone, and want to use the 2-in-1 Mobile Cable to scan, it works like: Wi-Fi Type-C cable can’t connect to iPhones. For power supply 12 ©2023 REVOPOINT 3D ALL RIGHTS RESERVED...
-
Page 16: Appendix
Tracking Methods Feature, Marker Color Scanning Output Formats PLY, OBJ, and STL Point Distance/ 0.3mm Resolution Use scanning spray for transparent, Special Object Scanning dark, or highly reflective objects. Scanning Environment Indoors and Outdoors ©2023 REVOPOINT 3D ALL RIGHTS RESERVED 13... - Page 17 RANGE Quick Start Guide The RANGE cannot scan objects well Outdoor Scanning in direct bright sunlight. Scanner Weight 210g Scanner Dimensions 295mm x 41.5mm x 28.2mm 3D Printing Compatible Windows 8/10/11 (64-bit), Android, Compatible OS iOS, macOS PC Display Screen >1344x768...
-
Page 18: Led Indicators
Indicator in Green: Working properly Update the Firmware When you connect your RANGE to Revo Scan, a pop-up will notify you of any firmware updates. If you want to update your firmware, follow the install wizard’s prompts and ensure that your RANGE has a stable power supply. -
Page 19: Safety Maintenance Instructions
5. Handle the scanner with care to avoid hitting the cameras. 6. The operating temperature range of this product is 0°C to 40°C (32°F to 104°F). 7. Do not take apart the scanner. If there are any problems or questions,... -
Page 20: Troubleshooting
If you can access this website, it means Revopoint’s server is working correctly. 2. What to do if my RANGE turns on but its LED never turns solid green, indicating that it's ready to connect? Connect your RANGE to a power source, then press the RANGE’s Start/Pause scan button ten times to reset the RANGE. -
Page 21: Customer Service
Studio to make a whole model once you’ve finished scanning the object. 7. How do I reset the scanner? Connect your RANGE to a power source, then press the RANGE’s Start/Pause scan button ten times to reset the RANGE. Customer Service If you need any assistance with your scanner, please don’t hesitate to... - Page 22 RANGE Quick Start Guide Warning The product cannot be returned if the "Warranty Void If Seal Is Broken" label is damaged or removed. ©2023 REVOPOINT 3D ALL RIGHTS RESERVED 19...
- Page 23 RANGE Quick Start Guide Follow Revopoint 20 ©2023 REVOPOINT 3D ALL RIGHTS RESERVED...
- Page 24 RANGE Quick Start Guide This content is subject to change. www.revopoint3d.com If you have any questions about this document, Please contact Revopoint by sending a message to support@revopoint3d.com or our forum https://forum.revopoint3d.com/. ©2023 REVOPOINT 3D ALL RIGHTS RESERVE ©2023 REVOPOINT 3D ALL RIGHTS RESERVED 21...
