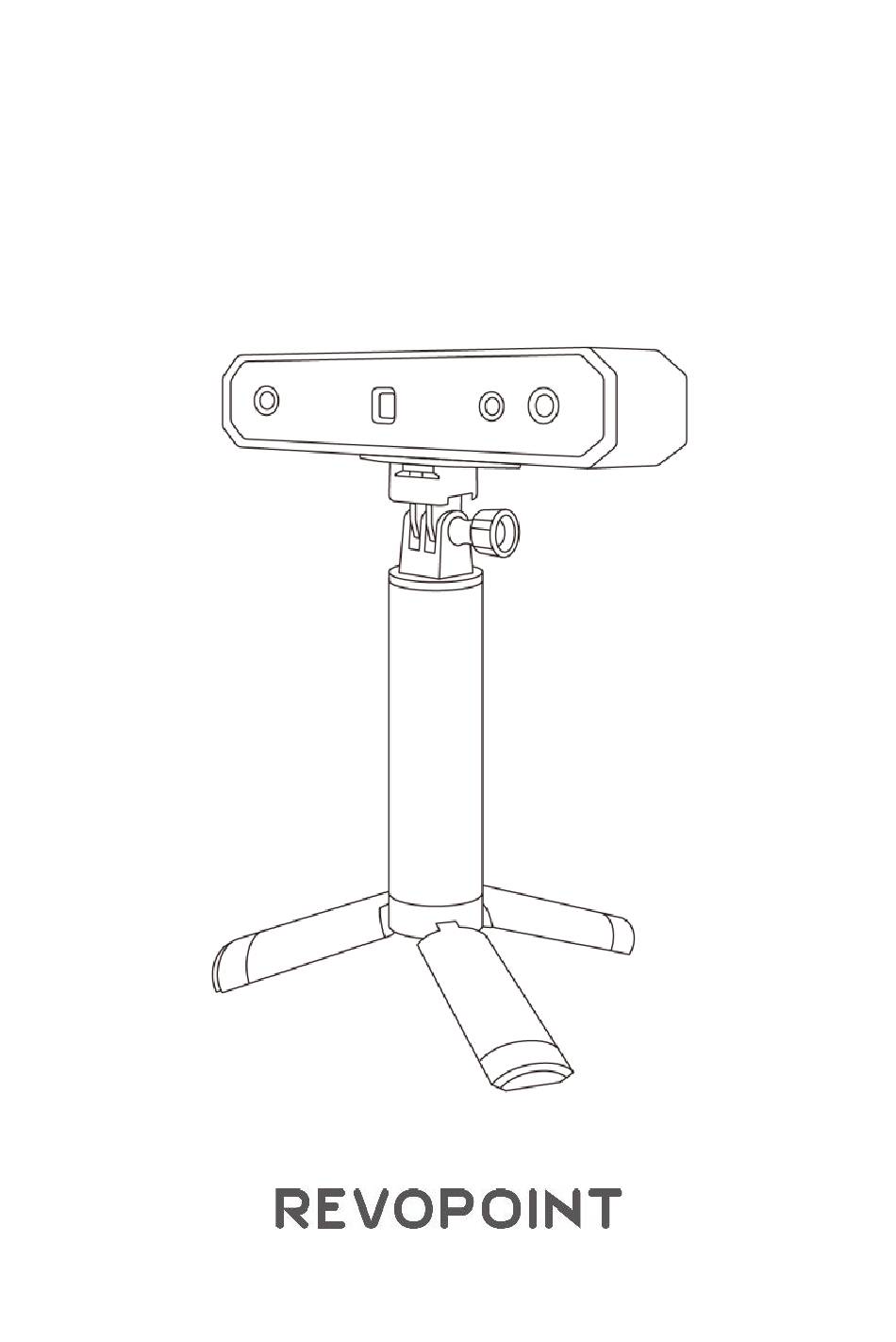

- Page 1 MINI 3D SCANNER Quick Start Guide V 2.0...
-
Page 2: Table Of Contents
Connect the MINI to a PC Via Wi-Fi ............7 MINI on Smartphones ..................8 System Requirements ................9 Connection Methods ................9 Connect the MINI to an Android Phone via USB ....... 9 Connect the MINI to a Phone Via Wi-Fi ..........10 Appendix ......................12 Specifications....................12 LED Indicators ..................14... -
Page 3: Read Before Your First Scan
Read Before Your First Scan Software Download To use your Revopoint MINI 3D Scanner, you must download the Revo Scan software. It can be found on Revopoint’s website for Windows and macOS systems, and for Android or iOS smartphones, it can be found by searching for “Revo Scan”... -
Page 4: Scanning Objects With Plain Surfaces
Color Scanning If you want to accurately capture an object’s color during a scan, please ensure that the object is evenly lit with soft light and that there are no dark or hard shadows. ©2023 REVOPOINT 3D ALL RIGHTS RESERVED 3... -

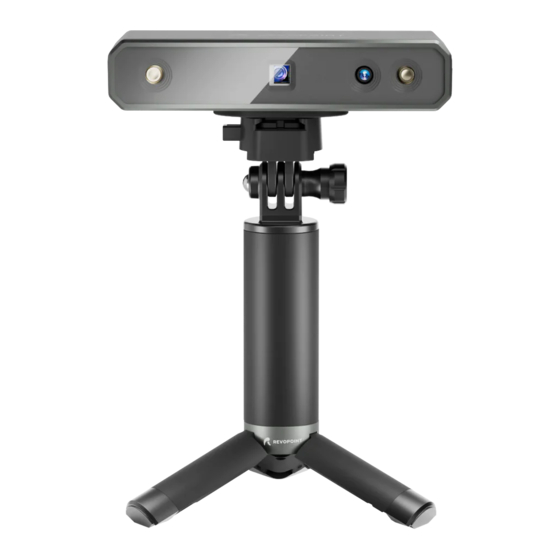

Page 5: About The Scanner
0.05mm and a single-frame precision of up to 0.02mm. The MINI is a necessary modeling tool for professionals such as designers, engineers, makers, and medical and scientific research workers, and dramatically lowers the threshold for 3D creative production, allowing you to quickly build a 3D digital world while improving modeling efficiency by more than ten times. -
Page 6: What's In The Box
Black Sheet) Note: Except the parts listed above, there is a turntable added in the MINI Standard Package. Refer to sales page for the MINI Premium Package and others. MINI on a Windows or Mac Device Both Windows and macOS computers are compatible. -
Page 7: System Requirements
* Minimum PC Display Screen Resolution: 1344×768 (1920×1080 is recommended.) Connection Methods Windows macOS USB Mode √ √ Wi-Fi Mode √ √ Connect the MINI to a PC Via USB Step 1: Clip the MINI to the top. 6 ©2023 REVOPOINT 3D ALL RIGHTS RESERVED... -
Page 8: Connect The Mini To A Pc Via Wi-Fi
Step 4: Open Revo Scan on your computer. Windows or macOS Note: 1) Connect the MINI to a USB 3.0 port or above, as USB 2.0 will not supply sufficient operating power. Ensure your USB 3.0 port is not damaged or worn out. -
Page 9: Mini On Smartphones
MINI Quick Start Guide Step 2: Connect the PC to the MINI. 1) Go to your Wi-Fi setting, search for a network called MINI-XXXXXX and connect. (No password is required.) 2) Wait a few seconds for the scanner to be connected. -
Page 10: System Requirements
√ √ Connect the MINI to an Android Phone via Step 1: Screw the Phone Holder onto the Power Bank Handle. Step 2: Clip the MINI to the top of the Phone Holder. ©2023 REVOPOINT 3D ALL RIGHTS RESERVED 9... -
Page 11: Connect The Mini To A Phone Via Wi-Fi
MINI Quick Start Guide Step 3: Pull open the Phone Holder’s clamps and fit your smartphone. Step 4: Connect the Micro-B end of the 2-in-1 Mobile Cable to the MINI’s port. Note: You can prepare a power bank yourself or go to Revopoint Store to buy one. - Page 12 MINI Quick Start Guide 1) Go to your Wi-Fi setting on your smartphone, search for a network called MINI-XXXXXX and connect. (No password is required.) 2) Wait a few seconds for the scanner to be connected. Step 3: Open Revo Scan on your phone.
-
Page 13: Appendix
Dual Camera Blue Light Single-frame Precision Up to 0.02mm Single-frame Accuracy Up to 0.05mm Single Capture MINI 64mm x 118mm Working Distance 100mm - 200mm Minimum Scan Volume 10mm x 10mm x 10mm 12 ©2023 REVOPOINT 3D ALL RIGHTS RESERVED... - Page 14 Actual results might vary, subject to the operation environment. 2. Windows 7 is not supported. 3. Class 1 Laser: Avoid direct eye exposure for extended periods! Refer to Standards for Class 1 Lasers for details. ©2023 REVOPOINT 3D ALL RIGHTS RESERVED 13...
-
Page 15: Led Indicators
Indicator in Green: Working properly Update the Firmware When you connect your MINI to Revo Scan, a pop-up will notify you of any firmware updates. If you want to update your firmware, follow the install wizard’s prompts and ensure that your MINI has a stable power supply. -
Page 16: Troubleshooting
Check your device's Firewall Settings and confirm Revo Scan is not being blocked or the Firewall is off. 2. What to do if my MINI turns on but its LED never turns solid green, indicating that it's ready to connect? Connect your MINI to a power source, then press the MINI’s... -
Page 17: Customer Service
7. How do I reset the scanner? Connect your MINI to a power source, then press the MINI’s Start/Pause scan button ten times to reset the MINI. Customer Service If you need any assistance with your scanner, please don’t hesitate to... - Page 18 MINI Quick Start Guide This content is subject to change. www.revopoint3d.com If you have any questions about this document, Please contact Revopoint by sending a message to support@revopoint3d.com ©2023 REVOPOINT 3D ALL RIGHTS RESERVED ©2023 REVOPOINT 3D ALL RIGHTS RESERVED 17...
