POP 2 3D SCANNER
User Manual
V 2.0
2022.1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the POP 2 and is the answer not in the manual?

Questions and answers

Related Manuals for Revopoint POP 2

Summary of Contents for Revopoint POP 2

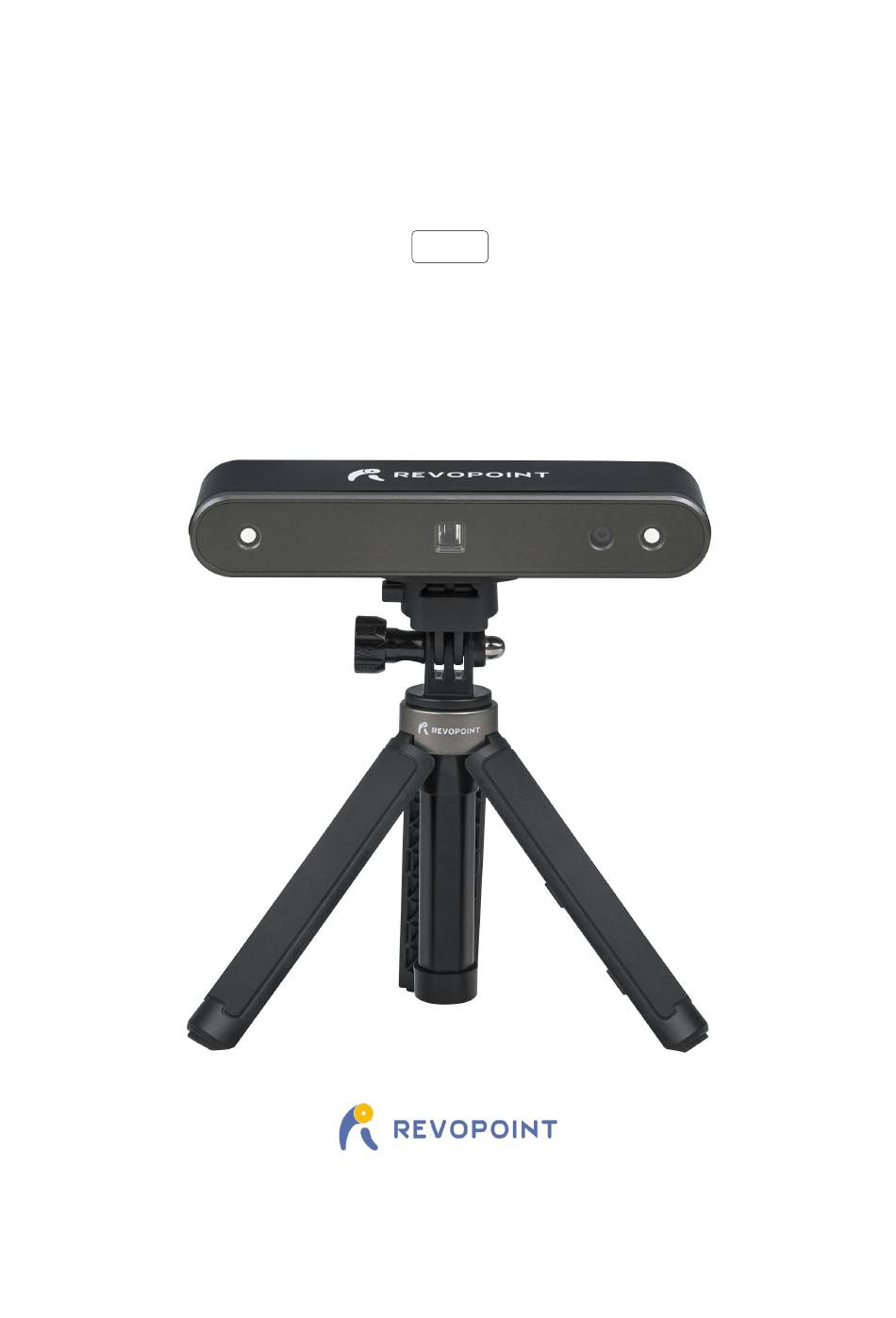

  • Page 1 POP 2 3D SCANNER User Manual V 2.0 2022.1...
  • Page 2 The operating temperature range of this product is 0°C to 40°C (32°F to 104°F). It does not meet military, industrial or � � � even the full commercial operating temperature range. Operate the product appropriately and only in situations limited to this temperature range. COPYRIGHT ©2022 REVOPOINT 3D ALL RIGHTS RESERVED...

  • Page 3: Table Of Contents

    POP 2 3D Scanner User Manual Table of Content Product Profile ................................... 3 Introduction ..................................3 Specifications ..................................4 Packing List ..................................5 Hardware Connection ................................6 Laptop Connection ................................6 Wireless Connection to a Smartphone ........................... 6 Indicator Legend ................................7 Software Installation ..................................

  • Page 4: Product Profile

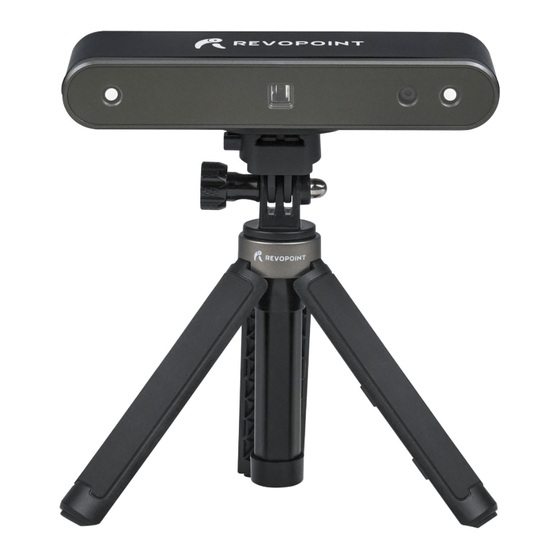

    The core hardware of POP 2 applies the principle of binocular & Micro-structured light, and with the help of the proprietary micro projecting chip, POP 2 ensures fast acquiring high-accuracy (up to 0.05mm) 3D point cloud data. And it supports texture scanning to directly generate vivid 3D models for color 3D printing.

  • Page 5: Specifications

    POP 2 3D Scanner User Manual Specifications Product Name 3D Scanner Product Model POP 2 Technology Dual camera infrared structured light Dual core ARM Cortex-A7 Accuracy 0.05 mm Single capture range 210mm x 130mm Working distance 150 mm ~ 400 mm Minimum scan volume 20×20×20 (mm)

  • Page 6: Packing List

    POP 2 3D Scanner User Manual Packing List POP 2 Standard POP 2 Premium COPYRIGHT ©2022 REVOPOINT 3D ALL RIGHTS RESERVED...

  • Page 7: Hardware Connection

    *The display screen resolution recommended is 1920×1080. Wireless Connection to a Smartphone For Wi-Fi settings, Host mode is default. In this mode, a smartphone could connect to the Wi-Fi provided by the POP 2 3D scanner. The default SSID is: POP2-REVO-XXXXXXXX...

  • Page 8: Indicator Legend

    The Revo Scan is a scan software that assists in scanning objects and obtaining 3D models; the Revo Studio is a post- process software for postprocessing the scanned 3D models; the Revo Calibration is a Calibration Software that adjusts the parameters of POP 2 for ensuring good results. Download the Revo softwares at our website ：...

  • Page 9: Revo Scan- Ui Introduction

    , to submit ideas or any other feedback about our products. ④ System Settings: Specify language and data storage location, plus the hardware accelerated rendering switch for the computer’s GPU. Display the version information for the POP/POP 2 and Revo Scan, confirm or configure Wi-Fi and ⑤ About: report bugs.

  • Page 10: New Scan

    Designed to scan objects that have large, smooth areas or regularly-repeating features that could fool the POP/POP 2’s internal pattern recognition capabilities. Flat planes like a board or symmetrical objects like balls or bowls are usually suitable to scan with this mode. Place tracking markers irregularly on or around the objects.

  • Page 11: Scanning Ui

    POP 2 3D Scanner User Manual the scanning process. Dark: Designed to scan objects with darker surfaces, such as black or dark gray clothes, black boxes, etc. However, not all dark objects can be successfully scanned. One example would be black leather shoes because leather absorbs light (or they are so shiny that they reflect too much light).
  • Page 12 Too near, Excellent, Good, Too Far. ~ Placing the POP/POP 2 or the object to be scanned so that it is in the Excellent zone will have the best balance of resolution and tracking. Adjust the optimal distance according to the prompt.

  • Page 13: Model List

    POP 2 3D Scanner User Manual 4. Model List ① Model Viewing Area: Lists all models scanned, creation timestamps and status. The icon sequence means that the model has completed scanning. The icon sequence means that the model has been scanned and its point cloud has been fused.

  • Page 14: Confirm "Device Is Connected

    If the device is connected successfully, the left end of the status bar displays: Device is connected. Otherwise, please check the connection. This happens typically 8-10 seconds after the POP/POP 2’s status LED on the rear panel turns blue. COPYRIGHT ©2022 REVOPOINT 3D ALL RIGHTS RESERVED...

  • Page 15: Click New Scan To Select Accuracy, Scan Mode And Texture

    After specifying the Accuracy, Scan Mode and Texture options, press “OK” to enter the scanning page. The top area of the 3D Model Preview window shows the distance. Position the POP 2 scanner or the object to confirm an "Excellent" distance and keep it during scanning.

  • Page 16: Start Or Pause Scanning

    POP 2 3D Scanner User Manual Start or Pause Scanning Click to Start/Pause scan. The number above the Start button is the countdown before scanning starts. During scanning, please make sure the point cloud in the lower-left window is adequate and the distance remains "Excellent".

  • Page 17: Complete/Restart Scanning

    Preview section (p. 8). After clicking Stop, it is possible to resume scanning (say, after repositioning either the POP/POP 2 or the object being scanned). If this is desired, then be sure to move the slider switch for “Fuse point cloud immediately?” to the right before clicking “Complete”.
  • Page 18 POP 2 3D Scanner User Manual Inactive button in the Stop’s popup (so that Fusing is a manual operation, allowing changes in the preset): After clicking “Complete”, the next step is to fuse the point cloud data, as shown below:...

  • Page 19: Mesh

    The pitch point is at a minimum of 0.15 mm for the POP 2. Smaller pitch points result in more resolution, but also more processing time.

  • Page 20: Texture

    POP 2 3D Scanner User Manual In the drop-down box, settings for Mesh Quality and Denoise are provided ： The higher the Mesh Quality setting, the more detailed the result, and a longer processing time, too. The higher the Denoise setting, the smoother the result. Depending on the actual scanned object, more noise reduction may result in lost detail.

  • Page 21: Export

    POP 2 3D Scanner User Manual Export Click to export the 3D model. Select a file name and. a file format (.PLY, .OBJ & .STL, are supported). COPYRIGHT ©2022 REVOPOINT 3D ALL RIGHTS RESERVED...
  • Page 22 POP 2 3D Scanner User Manual File Naming Conventions Save the 3D model as a .PLY file NAME.ply (Point Cloud) NAME_mesh.ply (Mesh no color) NAME_mesh_tex.ply (Mesh with color) NAME_mesh_tex.jpg (Texture color image) Save the 3D model (no Color/Texture) as an .STL file: NAME.ply (Point Cloud) *...

  • Page 23: Operation Tips

    Too Few Points If the "Few Point Amount" prompts appear, check whether the distance between POP 2 and the object is too close or too far and adjust the distance between the POP 2 and the object so that the distance indicator highlights “Excellent” before scanning is continued.

  • Page 24: Detect Plane

    Detect Plane This prompt appears when a plane or object with too few features is scanned and the POP 2 cannot properly relate the frame’s point cloud to the other frames. If no usable data has been scanned, the best course of action is to Stop scanning, select Restart to clear out the useless data, then start a new project, this time selecting Marker mode after attaching markers to the scanning surface or the surrounding area to solve this problem.

  • Page 25: Continue Scan

    POP 2 3D Scanner User Manual clean enough to continue or save. Otherwise, if the point cloud is deleted more frames mistakely, you can click “Redo” to find them. Continue Scan Continue Scan After Point Cloud Fusing: · It is possible to continue scanning an object after the point cloud data has been fused. This can be necessary if the scanning controller (a computer or smartphone) runs out of RAM to capture more frames or if holes in the scan data are discovered.

  • Page 26: Batch Processing

    POP 2 3D Scanner User Manual Batch Processing "Batch processing" improves workflow by automatically applying the same settings for each operation to a selected group of scanned models. Fast speed: the model processing will be completed as quickly as possible;...

  • Page 27: Warning

    The product cannot be returned if the "Warranty Void If Seal Is Broken" label is damaged or removed. Follow Revopoint 3D Technologies This content is subject to change. Download the latest version from https://www.revopoint3d.com/download/3d-scanner-app/ If you have any questions about this document, please contact support@revopoint3d.com COPYRIGHT ©2022 REVOPOINT 3D ALL RIGHTS RESERVED...

  • Page 28: Support & Help

    POP 2 3D Scanner User Manual Support & Help If you need any help, please visit our official website or official Forum: www.revopoint3d.com/support/ https://forum.revopoint3d.com/ Contact Us Tel (US): Toll-free +1 (888) 807-3339 Tel (China): +86 18124196779 Live Chat: https://www.revopoint3d.com Email: customer@revopoint3d.com...
