Revopoint MINI 2 Quick Start Manual

3d scanner
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

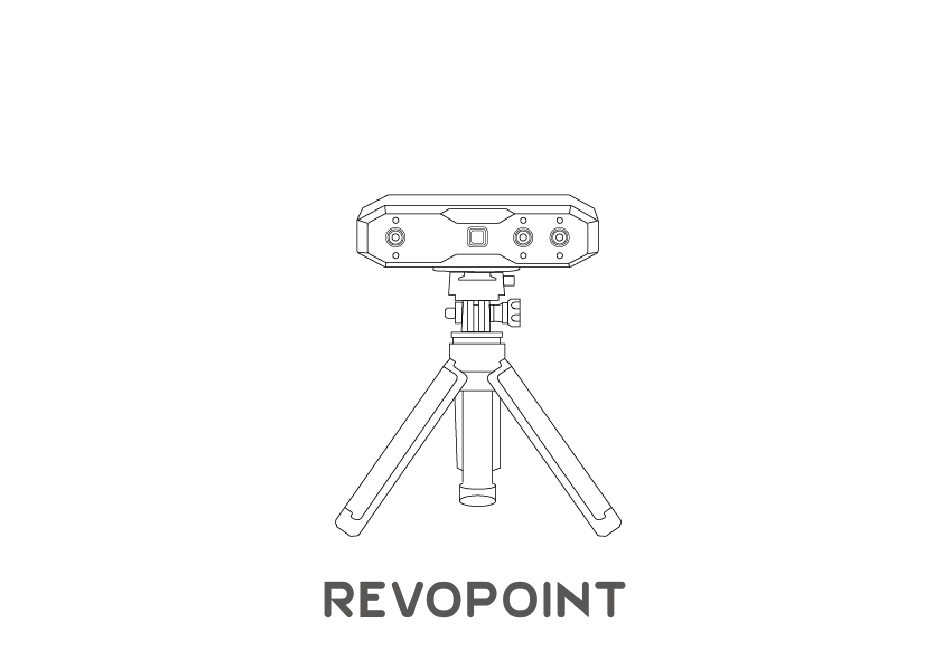

MINI 2 3D SCANNER
Quick Start Guide
V1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MINI 2 and is the answer not in the manual?

Questions and answers

Related Manuals for Revopoint MINI 2

Summary of Contents for Revopoint MINI 2

  • Page 1 MINI 2 3D SCANNER Quick Start Guide V1.0...
  • Page 2 Go to the bottom of Download page to get the latest Quick Start Guide and User Manual. You can also follow our YouTube account, Revopoint 3D, for tutorial videos. This content is subject to change. Please refer to the latest version.

  • Page 3: Table Of Contents

    Table of Content ▎What's in the box? ........................................1 ▎Product Profile.......................................... 2 ▎System Requirements......................................3 ▎Connecting MINI 2 to a PC....................................4 Via USB Cable........................................4 Via Wi-Fi........................................... 5 ▎Connecting MINI 2 to Phones..................................7 To Android Phones via USB Cable................................. 7 To Android or iOS Phones via Wi-Fi..............................9 ▎Mini Turntable Connection....................................
  • Page 4 Your First Scan Using Revo Scan (PC).............................. 14 Your First Scan Using Revo Scan (Android)..........................16 Your First Scan Using Revo Scan (iOS) .............................18 ▎Sharing Models from a Phone to a PC..............................21 IC Warning............................................22 FCC Warning..........................................23...

  • Page 5: What's In The Box

    ▎What's in the box?

  • Page 6: Product Profile

    ▎Product Profile...

  • Page 7: System Requirements

    ▎System Requirements Please download the Revo Scan software before your first scan. The system requirements are as follows: Windows: Win 10/11 (64-bit) Android: Android 9.0 or better RAM: 8GB or better RAM: 6GB or better Processor: Intel Core i5 10th Gen or better Mac with Intel x86 chip: macOS 10.15 and models after iPhone: iPhone 8 Plus or models after iPad: 6th generation iPad or models after...

  • Page 8: Connecting Mini 2 To A Pc

    ▎Connecting MINI 2 to a PC Via USB Cable Step 1: Connect the Quick Mount Kit to the scanner, then screw the Tripod to the Quick Mount Kit. Step 2: Use the USB Type-A to C Cable to connect the scanner to a PC. When the scanner’s indicator ②...

  • Page 9: Via Wi-Fi

    Via Wi-Fi Step 1: Connect the Quick Mount Kit to the scanner, then screw the Power Bank Handle to the Quick Mount Kit. Note: The Power Bank Handle can be purchased from the Revopoint online store.
  • Page 10 Step 2: Use the USB Type-A to C Cable to connect the scanner and Power Bank Handle. When scanner’s indicator ② turns solid green, it’s powered. Step 3: Search for a Wi-Fi network called MINI 2-REVO-XXXXXXXX in your PC’s Wi-Fi settings, and connect (no password is required).

  • Page 11: Connecting Mini 2 To Phones

    Step 4: Open Revo Scan, when the software shows Scanner Connected and the scanner’s indicator ① turns solid blue, it’s ready. ▎Connecting MINI 2 to Phones To Android Phones via USB Cable Step 1: Connect the Phone Holder and Power Bank Handle to the scanner.
  • Page 12 Step 2: Put a phone in the Phone Holder, and use the 2-in-1 Mobile Cable to connect to the ports shown. When the ② scanner’s indicator turns solid green, it’s powered. Note: The 2-in-1 Mobile Cable only connects the scanner to Android phones. Step 3: Open Revo Scan, when the software shows Scanner Connected and the scanner’s indicator ①...

  • Page 13: To Android Or Ios Phones Via Wi-Fi

    To Android or iOS Phones via Wi-Fi Step 1: Connect the Phone Holder and Power Bank Handle to the scanner. Step 2: Put a phone in the Phone Holder, and use the USB Type-A to C Cable or 2-in-1 Mobile Cable to connect the scanner to the Power Bank Handle.
  • Page 14 Step 3: Search for a Wi-Fi network called MINI 2-REVO-XXXXXXXX your smartphone’s Wi-Fi settings, and connect (no password is required). Step 4: Open Revo Scan, when the software shows Scanner Connected (iOS devices will show the scanning preview window) and the scanner’s indicator ①...

  • Page 15: Mini Turntable Connection

    Note: For Dual-axis Turntable users, visit the Support section on Revopoint’s website at www.revopoint3d.com to download the Quick Start Guide.

  • Page 16: Scanning Tips

    Camera's exposure when scanning objects Note: Scanning spray can be purchased from the with colored surfaces that absorb blue light. Revopoint Store on our website. ④ Please stick markers irregularly on the object’s surface or use the Magic Mat when scanning...
  • Page 17 ⑤ Adjust the tripod to a suitable height and aim the scanner at the object. The distance between the scanner and the object can be between 120 – 250 mm. In the 3D scanning interface in Revo Scan, refer to the distance indicator bar to ensure an excellent distance between the scanner and the object.

  • Page 18: Your First Scan

    ▎Your First Scan Your First Scan Using Revo Scan (PC) After the scanner is connected, click the New Project button on Revo Scan’s Home Page, then set parameters and start your scan using the following steps: ※ Please refer to the interface of Revo Scan.
  • Page 19 ① Choose Accuracy, Tracking Mode, and Object Type according to your requirements. ② Toggle Color Scanning if you need a color model. ③ Move the scanner closer or further away from the object until the scanning distance indicator bar shows Excellent or Good. ④...

  • Page 20: Your First Scan Using Revo Scan (Android)

    Your First Scan Using Revo Scan (Android) ① Open Revo Scan on your phone and tap the New Project button. ② Choose Accuracy, Tracking Mode, and Object Type according to your needs. Choose Color in Texture if you need a color model. ③...
  • Page 21 ④ Move the scanner closer or further away from the object until the scanning distance indicator bar shows Excellent or Good. ⑤ Tap the icon in the Depth Camera preview window to adjust the Depth Cameras’ exposure until there are as few blue and red areas on the object in the preview window as possible. ⑥...

  • Page 22: Your First Scan Using Revo Scan (Ios)

    ⑦ Tap the icon to start scanning. While scanning, hold the scanner steady and move slowly. Try not to scan the same areas repeatedly. Tap the button to finish the scan and enter the post-processing window when the scan is over. ⑧...
  • Page 23 ① Tap the icon to choose Accuracy, Tracking Mode, and Object Type. Toggle Color Scanning if you need a color model. ② Move the scanner closer or further away from the object until the scanning distance indicator bar shows Excellent or Good. ③...
  • Page 24 ⑦ Tap the icon to fill holes in the model (optional). ⑧ Tap the Post-processing button for Fusing and Meshing. You can share the model to Revo Scan on your PC for more editing options. See Sharing Models from a Phone to a PC on page 21 of this guide for details.

  • Page 25: Sharing Models From A Phone To A Pc

    ▎Sharing Models from a Phone to a PC ① Open Revo Scan on your PC and click the New Project button. ② Choose File - Import from Phone on the Menu Bar. ③ Open Revo Scan on your phone and find the project to transfer.

  • Page 26: Ic Warning

    IC Warning This device complies with Industry Canada’s licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

  • Page 27: Fcc Warning

    FCC Warning This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
  • Page 28 Follow Us: Contact Us: Scan the QR code left with your phone and contact us for help. ©2024 REVOPOINT 3D ALL RIGHTS RESERVED...
