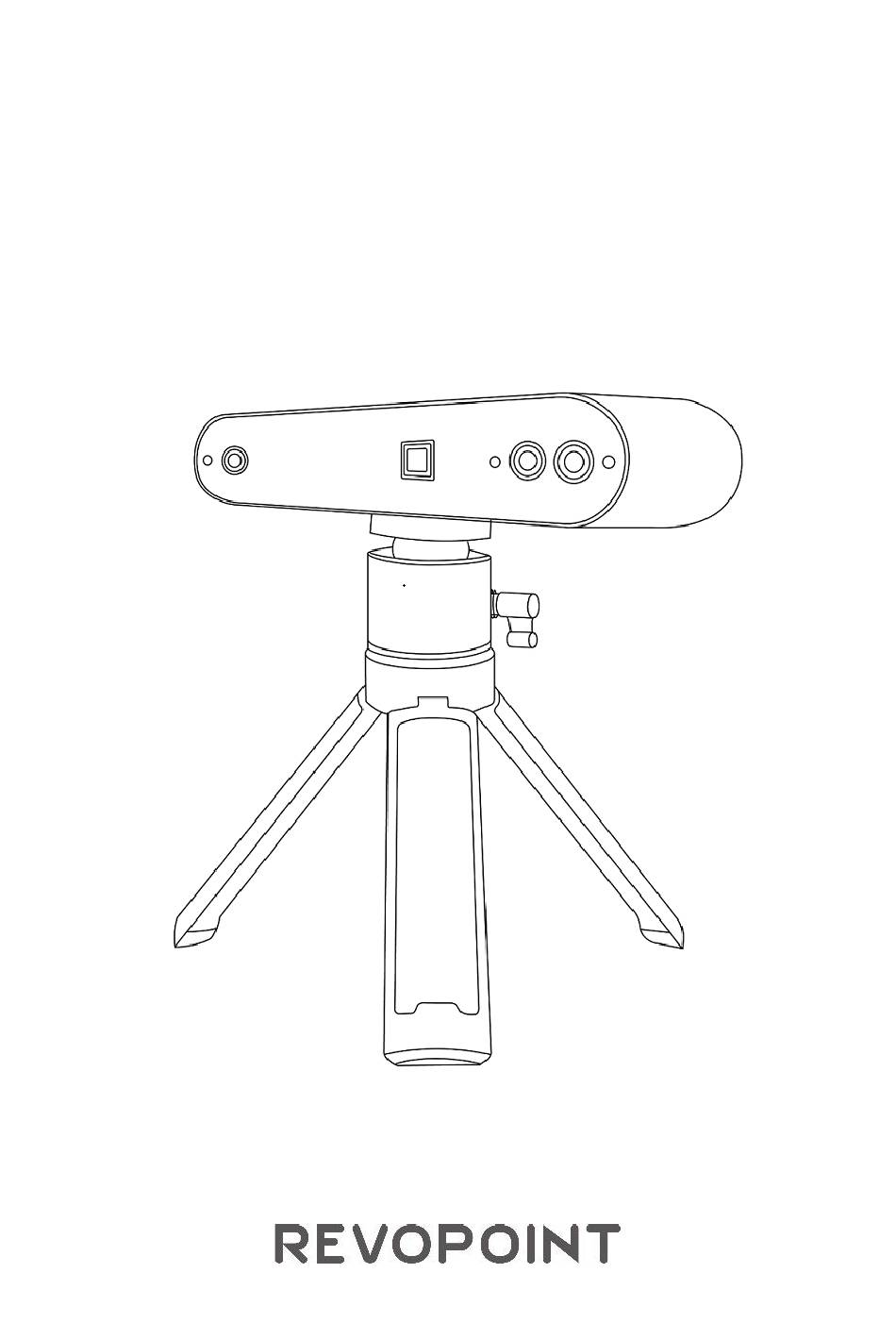

Page 1 INSPIRE 3D SCANNER Quick Start Guide V1.0...
Page 3: Table Of Contents
What’s in the Box? ..............4 INSPIRE on Windows or macOS Devices ........5 System Requirements............5 Connection Methods ............5 Connecting INSPIRE to a PC via USB .......5 Connecting INSPIRE to a PC via Wi-Fi ......6 INSPIRE on Smartphones ............7 System Requirements............7 Connection Methods ............8 Connecting INSPIRE to Phones via Wi-Fi ......8...
Page 4: Read Before Your First Scan
INSPIRE Quick Start Guide Read Before Your First Scan Software Download To use your INSPIRE 3D Scanner, you must first download the Revo Scan software. You can download the Windows or macOS versions from Revopoint’s website https://www.revopoint3d.com/download/. And for Android or iOS smartphones, search for “Revo Scan” in the Google Play or Apple App Store.
Page 5: Scanning Objects With Plain Surfaces
Please scan the QR code to watch a Marker stickers video tutorial. Color Scanning For optimal color scanning, please ensure that the object is evenly lit with soft light and that there are no dark or hard shadows. ©2023 REVOPOINT 3D ALL RIGHTS RESERVED 2...
Page 6: About Inspire
INSPIRE Quick Start Guide About INSPIRE The Revopoint INSPIRE is an infrared structured light 3D scanner. It’ s packed with smart technology designed to make capturing detailed scans as easy as possible. And with its versatility and adaptability, it’ s capable of various applications like 3D printing, 3D animation design, VR/AR, historic preservation, and many more.
Page 7: What's In The Box
1. INSPIRE 3D Scanner 7. Marker Topper 2. Tripod 8. Turntable USB Cable 3. USB Type-C Cable 9. Markers, Glue Tack, Magic 4. Type-C Adapter 5. Calibration Board 10. Sample Bust 6. Mini Turntable ©2023 REVOPOINT 3D ALL RIGHTS RESERVED 4...
Page 8: Inspire On Windows Or Macos Devices
√ Wi-Fi Mode √ √ Connecting INSPIRE to a PC via USB Step 1: Screw the Universal Ball Head onto the Tripod. Step 2: Screw the INSPIRE onto the top of the Tripod. 5 ©2023 REVOPOINT 3D ALL RIGHTS RESERVED...
Page 9: Connecting Inspire To A Pc Via Wi-Fi
Step 5: Open Revo Scan on your computer. Notes: 1) Connect INSPIRE to a USB 3.0 port or above (USB 2.0 will not supply sufficient operating power). Ensure your USB 3.0 port is not damaged or worn out. 2) If there is no Type-A port on your computer, use the Type-C Adapter.
Page 10: Inspire On Smartphones
INSPIRE Quick Start Guide Step 2: Connect a PC to INSPIRE. 1) Go to your Wi-Fi settings, search for the network called INSPIRE- REVO-XXXXXXX, and connect (No password is required). 2) Wait a few seconds for the scanner to be connected.
Page 11: Connection Methods
√ Note: Android devices support both USB and Wi-Fi connections. A 2-in-1 Mobile USB Cable is needed to connect INSPIRE to a phone and power bank. One can be purchased from the Revopoint store. The following provides a detailed introduction to Wi-Fi connection for both Android and iOS OS.
Page 13: Appendix
Use scanning spray for transparent, Special Object Scanning dark, or highly reflective objects. Scanning Environment Indoors and Outdoors The INSPIRE cannot scan objects well Outdoor Scanning in direct bright sunlight. Scanner Dimensions 132 mm x 45 mm x 27 mm...
Page 14 3. Class 1 Laser: Avoid direct eye exposure for extended periods! Refer Standards Class Lasers details. 4. Warning: This product has flashing lights which may not be suitable for people with photosensitive epilepsy. 11 ©2023 REVOPOINT 3D ALL RIGHTS RESERVED...
Page 15: Led Indicators
Properly Updating the Firmware A Revo Scan (PC) pop-up will notify you when you connect your INSPIRE if a firmware update is available. If you want to update your firmware, follow the install wizard’s prompts and ensure your INSPIRE has a stable power supply.
Page 16: Troubleshooting
Check your device's Firewall Settings and confirm Revo Scan is not being blocked or the Firewall is off. 2. What to do if my INSPIRE turns on, but its LED never turns solid green, indicating it's ready to connect? Connect your INSPIRE to a power source, then press the INSPIRE’s Start/Pause scan button ten times to reset the INSPIRE.
Page 17: Customer Service
7. What should I do if the firmware upgrade fails and the LED light keeps showing blue? Connect your INSPIRE to a power source, then press the Start/Pause button 10 times continuously to restore the scanner to the normal scanning mode.
Page 18 ......................... 1 ....................... 1 ..............1 ................2 ....................... 2 ......................... 3 ......................... 4 INSPIRE PC Windows & macOS ............5 ....................... 5 ....................... 5 INSPIRE PC............. 5 INSPIRE Wi-Fi PC ............6 INSPIRE Android & iOS .............. 7 ....................... 7 .......................
Page 19 INSPIRE Revopoint INSPIRE Revo Scan Windows macOS Revopoint Android “Revo Scan” Apple App Store Revo Scan Revo Scan INSPIRE ©2023...
Page 21 INSPIRE Revopoint INSPIRE INSPIRE VR/AR 9. Type-C...
Page 23 INSPIRE INSPIRE PC Windows & macOS Windows Win 10/11 (64 ≥ �GB macOS 10.15 Apple M1 Mac macOS 11.0 ≥ �GB * PC 1344×768 1920×1080 Windows macOS √ √ Wi-Fi √ √ INSPIRE INSPIRE © 2023...
Page 24 INSPIRE Type-C INSPIRE Type-A USB 3.0 Revo Scan 5V/1 A 1) USB 2.0 INSPIRE INSPIRE USB 3.0 Type-A Type-C INSPIRE Wi-Fi INSPIRE INSPIRE 5V/1A Revopoint © 2023...
Page 25 INSPIRE INSPIRE ” “ Wi-Fi “INSPIRE-REVO-XXXXXXX” Wi-Fi Revo Scan INSPIRE Android & iOS Android ≥ Android 9.0 ≥ �GB iPhone iPhone 8 Plus iPad iPad ≥ iOS ��.� © 2023...
Page 26 INSPIRE Android iOS/iPadOS √ × √ √ Wi-Fi Android Wi-Fi INSPIRE Revopoint Android Wi-Fi INSPIRE Wi-Fi Android & iOS INSPIRE INSPIRE ” “Wi-Fi “INSPIRE-REVO-XXXXXXX” Wi-Fi © 2023...
Page 28 INSPIRE INSPIRE 0.3 mm 230 mm × 140 mm@310 mm 250 mm - 500 mm 50 mm × 50 mm × 50 mm 14 fps -18 fps PLY OBJ STL 0.3 mm 132 mm × 45 mm × 27 mm...
Page 30 INSPIRE INSPIRE Revo Scan INSPIRE 0℃ 40℃ 32℉ 104℉ 7. 请勿私自拆卸扫描仪。如有问题，请致电 17316644510或400-168-1992转 2 联系我们，也可登录官网https://www.revopoint3d.com.cn/或点击“在线咨询”咨询。 Revo Scan INSPIRE INSPIRE INSPIRE © 2023...
Page 47 If you need any help with your scanner, please scan the QR code and send messages to our support team. 如果您需要任何帮助，请扫描以下二维码，寻求Revopoint售后团队的支持。スキャナーに関して何か問題がございましたら、QRコードをスキャンしてサポートチームにお問い合わせください。...
Page 48 This content is subject to change. www.revopoint3d.com If you have any questions about this document, Please contact Revopoint by sending a message to support@revopoint3d.com or our forum https://forum.revopoint3d.com/. ©2023 REVOPOINT 3D ALL RIGHTS RESERVED...
