RANGE 3D Scanner User Manual
RANGE 3D SCANNER
User Manual V 1.0
2022.11

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RANGE and is the answer not in the manual?

Questions and answers

Related Manuals for Revopoint RANGE

Summary of Contents for Revopoint RANGE

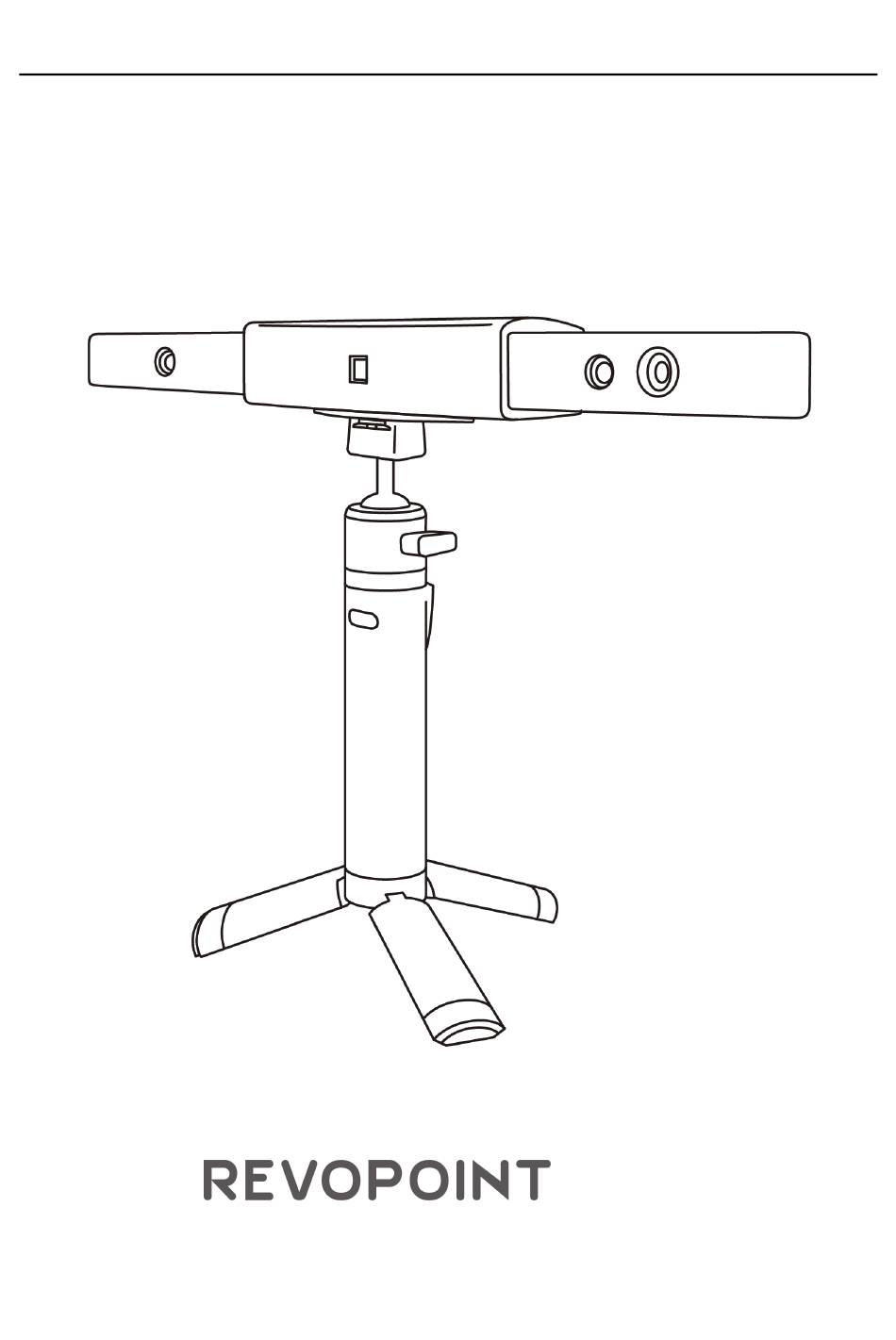

  • Page 1 RANGE 3D Scanner User Manual RANGE 3D SCANNER User Manual V 1.0 2022.11...

  • Page 2: Table Of Contents

    Connect the RANGE to a PC Via Wi-Fi ........9 RANGE on Smartphones ..............10 System Requirements ..............10 Connection Methods ..............11 Connect the RANGE to an Android Phone via USB ....11 Connect the RANGE to a Phone Via Wi-Fi ....... 12 Appendix ..................... 15 Specifications ................15 LED Indicators ................17...
  • Page 3 RANGE 3D Scanner User Manual Safety Maintenance Instructions ..........18 Troubleshooting ................19 Customer Service ................ 20 COPYRIGHT ©2022 REVOPOINT 3D ALL RIGHTS RESERVED...

  • Page 4: Read Before Your First Scan

    Revo Scan. Scanning Dark, Transparent, or Reflective Objects Like most 3D scanners, the RANGE will struggle to scan transparent, reflective, or black objects without first treating the object's surface with scanning spray, baby powder, or dry shampoo.

  • Page 5: Color Scanning

    Color Scanning If you want to accurately capture an object’s color during a scan, please ensure that the object is evenly lit with soft light and that there are no dark or hard shadows. COPYRIGHT ©2022 REVOPOINT 3D ALL RIGHTS RESERVED...

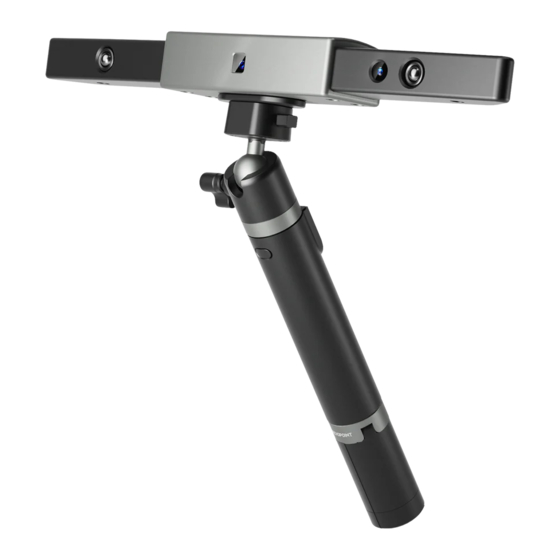

  • Page 6: About The Scanner

    Its self-developed chip and intelligent algorithms combined with its more powerful projector and dual IR cameras with aspheric lens enable a single capture range of 360mm x 650mm, a working distance of 300mm ~ 800mm, a scanning speed of 12fps to 20fps, and a single- frame precision of up to 0.1mm.

  • Page 7: What's In The Box

    3. Power Bank Handle 7. Phone Holder 4. USB Cable (Micro-B to 8. 2-in-1 Mobile Cable Type-A) 9. Gifts(100 pcs Marker, Glue Tack, Black Plastic Sheet) RANGE on a Windows or Mac Device COPYRIGHT ©2022 REVOPOINT 3D ALL RIGHTS RESERVED...

  • Page 8: System Requirements

    Wi-Fi Mode √ √ Connect the RANGE to a PC Via USB Step 1: Screw the Universal Ball onto the Power Bank Handle. Step 2: Screw the Mini Tripod onto the bottom of the Power Bank. Step 3: Clip the RANGE to the top.
  • Page 9 Step 6: Open Revo Scan on your computer. Note: 1) Connect the RANGE to a USB 3.0 port or above, as USB 2.0 will not supply sufficient operating power. Ensure your USB 3.0 port is not damaged or worn out.

  • Page 10: Connect The Range To A Pc Via Wi-Fi

    Adaptor. Connect the RANGE to a PC Via Wi-Fi Step 1: Power the RANGE on with a power bank or an AC adapter. Note: Do not plug it into your PC, or it will be USB mode by default. COPYRIGHT ©2022 REVOPOINT 3D ALL RIGHTS RESERVED...

  • Page 11: Range On Smartphones

    RANGE 3D Scanner User Manual Step 2: Connect the PC to the RANGE. 1) Go to your Wi-Fi setting, search for a network called RANGE- XXXXXX and connect. (No password is required) 2) Wait a few seconds for the scanner to be connected.

  • Page 12: Connection Methods

    Step 3: Pull open the Phone Holders clamps and fit your smartphone. Step 4: Step 4: Connect the Micro-B end of the 2-in-1 Mobile Cable to the RANGE’s port, Type-A to the Power Bank, and Type-C to an Android smartphone.

  • Page 13: Connect The Range To A Phone Via Wi-Fi

    RANGE 3D Scanner User Manual Connect the RANGE to a Phone Via Wi-Fi Both Android and iOS Phones are compatible. Step 1: Power the RANGE on via a Power Bank Handle or a Socket. COPYRIGHT ©2022 REVOPOINT 3D ALL RIGHTS RESERVED...
  • Page 14 RANGE 3D Scanner User Manual Step 2: Connect the Smartphone to the RANGE. 1) Go to your Wi-Fi setting on your smartphone, search for a network called RANGE-XXXXXX and connect. (No password is required) 2) Wait a few seconds for the scanner to be connected.
  • Page 15 RANGE 3D Scanner User Manual Note：If you have an iPhone, and want to use the 2-in-1 Mobile cable to scan, it can works like: COPYRIGHT ©2022 REVOPOINT 3D ALL RIGHTS RESERVED...

  • Page 16: Appendix

    Class 1 Infrared Light Scanning Modes Feature, Marker, Body, and Dark Color Scanning Output Formats PLY, OBJ, and STL Point Distance/Resolution 0.3mm Use scanning spray for transparent, Special Object Scanning dark, or highly reflective objects. COPYRIGHT ©2022 REVOPOINT 3D ALL RIGHTS RESERVED...
  • Page 17 2. Windows 7 is not supported. 3. iOS devices only support Wi-Fi connection. 4. Class 1 Laser: Avoid direct eye exposure for extended periods! Refer to Standards for Class 1 Lasers for details. COPYRIGHT ©2022 REVOPOINT 3D ALL RIGHTS RESERVED...

  • Page 18: Led Indicators

    LED Indicators Update the Firmware When you connect your RANGE to Revo Scan, a pop-up will notify you of any firmware updates. If you want to update your firmware, follow the install wizard’s prompts and ensure that your RANGE has a stable power supply.

  • Page 19: Scanner Calibration

    5. Handle the scanner with care to avoid hitting the cameras. 6. The operating temperature range of this product is 0°C to 40°C (32°F to 104°F). 7. Do not take apart the scanner. If there are any problems or questions, contact the Revopoint customer service team at customer@revopoint3d.
  • Page 20 If you can access this website, it means Revopoint’s server is working correctly. 2. What to do if my RANGE turns on but its LED never turns solid green, indicating that it's ready to connect? Connect your RANGE to a power source, then press the RANGE’s Start/Pause scan button ten times to reset the RANGE.
  • Page 21 Studio to make a whole model once you’ve finished scanning the object. 7. How do I reset the scanner? Connect your RANGE to a power source, then press the RANGE’s Start/Pause scan button ten times to reset the RANGE. Customer Service If you need any assistance with your scanner, please don’t hesitate to...
  • Page 22 This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. Note:5150-5250MHz only use indoor. This content is subject to change. COPYRIGHT ©2022 REVOPOINT 3D ALL RIGHTS RESERVED...
  • Page 23 RANGE 3D Scanner User Manual https://www.revopoint3d.com/ If you have any questions about this document, Please contact Revopoint by sending a message to support@revopoint3d.com COPYRIGHT ©2022 REVOPOINT 3D ALL RIGHTS RESERVED...
