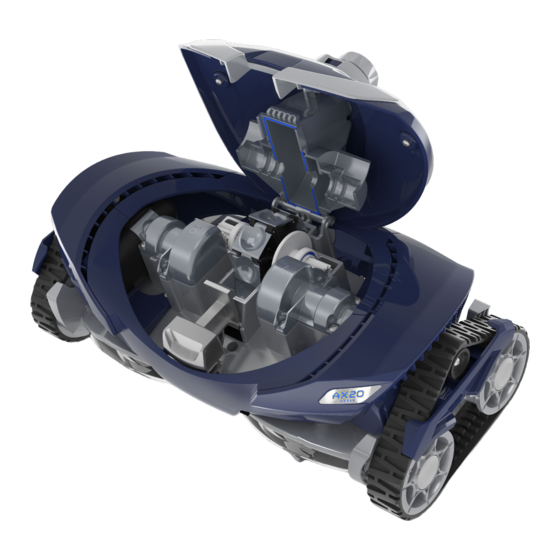

Zodiac AX20 ACTIV Quick Start Manual

a
b
x 1
d
x 1
1
c
Before You Start
g
WARNING
1. Clean the weir basket, pump basket and clean the lter before installing the
cleaner.
2. Always disconnect the cleaner from the Weir/Skimmer Box before cleaning or
backwashing the pool lter.
3. After cleaning or backwashing, let the ltration system run for at least ve (5)
minutes before re-connecting the cleaner.
4. Remove the cleaner from the pool before chemical or shock treatments.
5. Wait a minimum of four (4) hours after super chlorination before re-installing the
cleaner.
Ensure all return lines point toward the
bottom of the pool.
Read owner's manual
Do not operate cleaner
completely before
outside of pool.
operating.
2
Assemble the Hoses
e
f
h x 7
x 1
3
Determine Required Hose Length
x 1
x 11
x 1
4
Submerge the Cleaner
Do not let children play
with cleaner.
5
Measure the hose length to the furthest
point of the pool plus one hose.
6
1. Temporarily disconnect hose from skimmer.
Turn on pool lter pump.
2. Flood the hose with water by placing the
end in front of one of the pool water return
inlets.
3. Turn o pool lter pump, reconnect hose to
skimmer, attach cleaner, and then turn pool
lter pump back on.
Connect the Weir Fittings
1. Connect 90 degree elbow.
2. Connect Weir Valve.
3. Add hose protector to the hose.
4. Place hose in one half of hose protector.
5. Place the other half over hose ensuring male clips line up with the female clips.
90 o Elbow
Male Hose Cu
Automatic Weir Valve
Insert Into the Weir
Connect to Weir
NOTE: Before connecting to the weir
valve, ensure that all the hoses are
lled with water and all the air has been
expelled.
Into Automatic Pool Cleaner
(APC)
