Owner's Manual
1

Advertisement

loading

Related Manuals for Zodiac AX20 ACTIV

Summary of Contents for Zodiac AX20 ACTIV

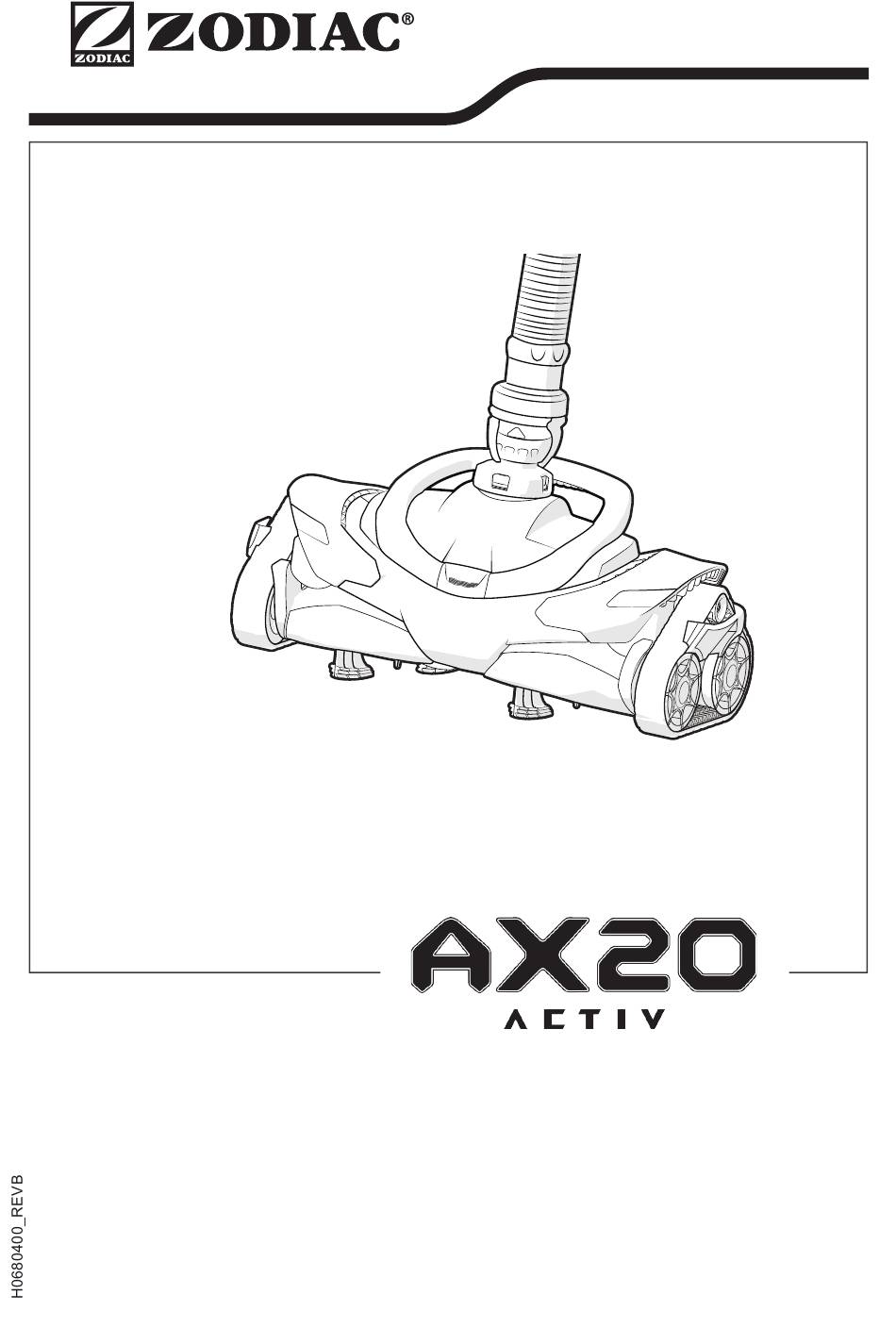

  • Page 1 Owner’s Manual...
  • Page 2 Zodiac Group Australia Pty Ltd (Zodiac) will not be responsible for liner damage caused by a cleaner which is in disrepair, pattern removal from a vinyl liner, or a cleaner used in a pool having an aged or deteriorated liner. If any components are missing, contact: Zodiac Customer Support: 1300 763 021 •...
  • Page 3 Zodiac dealer or service center. Always insist on genuine Zodiac replacement parts. Non-Zodiac parts are not made to our specifications. They may have an adverse effect on the operation of your AX20 Activ or may even damage it. AX20 Activ Complete Cleaner a.

  • Page 4: Installation

    If return inlet directional fittings can’t be directed far enough down to prevent water flow affecting the natural movement of the Zodiac hose, you will need to install Zodiac return line diverters. These are available from your local Zodiac dealer.
  • Page 5 Installation 4th case: with any other type of Skimmer Box and Vac plate Simply insert the AD Flow valve directly into the universal weir cuff which will then fit into the top of the Vac plate. AD Flow valve Universal Weir Cuff Note: The AD Flow valve has three settings: High (3), Medium (2) and Low (1).
  • Page 6 1. Connect the Flow Regulator Valve (f) to the leader hose (g), if necessary. The leader hose is the hose section with the foam float pre-attached. Connect AX20 Activ cleaner head to the Flow Regulator Valve (f). 5. Re-connecting to Skimmer Box 1.

  • Page 7: Care And Maintenance

    The climbing ability of the cleaner is dependent on the pool’s shape and available water flow. If AX20 Activ cleaner is not climbing your walls, ensure the flow is correct by checking wheel speed. Also, ensure the pool’s surface is not covered in algae as this slippery surface will affect the cleaner’s traction.
  • Page 8 Care and Maintenance Removing the Inlet Throat Adaptor If you are experiencing high levels of larger debris that clog the throat of the cleaner simply remove the inlet throat adapter to enhance the size of the throat inlet, thus allowing larger debris to be picked up by the cleaner.
  • Page 9 Care and Maintenance Replacing Brushes Regularly To maintain optimal cleaning, it is recommended to replace the scrubbing brushes each season or when significant wear is visible. To remove brushes, squeeze the plastic clip between two fingers and pull out. Type of pool surface may also increase rate of wear to brushes. WORN brush brush...

  • Page 10: Troubleshooting

    Troubleshooting If you experience a problem with your AX20 Activ cleaner, please follow the troubleshooting steps below to restore performance. If further assistance is required, contact Zodiac Technical Support Department at 1300 763 021. Please have your serial number and date of purchase available when you call.
  • Page 11 NOTES...
  • Page 12 219 Woodpark Road Smithfield NSW 2164 Australia 1300 763 021 2021 Zodiac Pool Systems LLC. All rights reserved. Zodiac is a registered trademark of Zodiac International, © ® S.A.S.U. used under license. All other trademarks referenced herein are the property of their respective owners.
