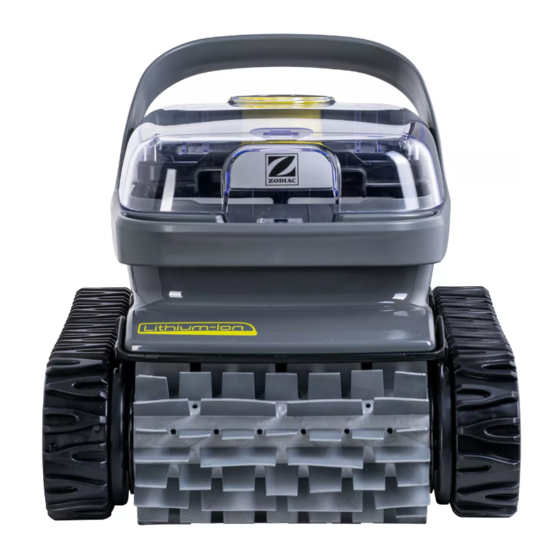

- Page 1 Instructions for installation and use - English Battery-powered electric cleaner Translation of the original instructions in French More documents on: www.zodiac.com according to product marking H0783900_REVA - 2023/10 - EB31--...
- Page 2 WARNINGS GENERAL WARNINGS • Failure to respect the warnings may cause serious damage to the pool equipment or cause serious injury, even death. • Only a person qualified in the technical fields concerned (electricity, hydraulics or refrigeration) is authorised to perform any servicing or repairs to the appliance. The qualified technician working on the appliance must use/wear personal protective equipment (such as safety goggles and protective gloves, etc.) in order to reduce the risk of injury occurring when working on the appliance.
- Page 3 in which it is installed. • Do not use any extension lead when connecting the appliance; connect the appliance directly to a suitable power supply. • Before carrying out any operations, check that: - The required input voltage indicated on the appliance information plate corresponds to the mains voltage;...
- Page 4 leaking fluids come in contact with eyes, do not rub eyes, immediately flush eyes with cool running water for at least 15 minutes and do not rub them. Seek medical attention as soon as possible. SPECIFIC FEATURES APPLICABLE TO “Pool cleaners” •...
-
Page 5: Table Of Contents
• Before handling the appliance, it is vital that you read this installation and user manual, as well as the "Warranty" booklet delivered with the appliance. Failure to do so may result in material damage or serious or fatal injury and will void the warranty. • Keep and pass on these documents for reference during the appliance's service life. • The distribution or modification of this document in any way is prohibited, without prior authorisation from Zodiac®. • Zodiac® is constantly developing its products to improve their quality. The information contained herein may therefore be modified without notice. CONTENTS 1. Information before using the appliance 1.1. Description 1.2. Technical specifications and parts list 2. Use 2.1. Operating principle 2.2. -
Page 6: Information Before Using The Appliance
1. Information before using the appliance 1.1. Description Cleaner Charger (for indoor use) 150µ fine debris filter Hook A pool pole (standard model, not included) is required to remove the cleaner from the water. Floating ring Supplied with a nylon cord Charging pin replacements Detachable power supply (external adaptor) Use ONLY the detachable power supply provided with this appliance. -
Page 7: Technical Specifications And Parts List
1.2. Technical specifications and parts list 1.2.1. Technical specifications Power supply voltage 110 - 240 VAC, 50/60Hz, Class II* Cleaner power supply voltage 21.6 V Charge voltage 25.2 V Charger maximum power 25 W Battery capacity 5.1 Ah Cleaner rated power 100 W Filter capacity Cleaner size (L x W x h) 36 x 29 x 29 cm Package size (L x W x H) -
Page 8: Use
2. Use 2.1. Operating principle The cleaner is independent from the filtration system and can, once charged, operate autonomously. It finds the best route to move around and clean the areas of the pool for which it has been designed (floor only). Debris are sucked in and stored in the cleaner’s filter. -
Page 9: Starting A Cleaning Cycle
2.5. Starting a cleaning cycle In order to avoid any risk of injury or material damage, follow the instructions below: • Bathing is prohibited when the appliance is in the pool. • Do not use the appliance during a shock chlorination. Wait until the chlorine level has reached the recommended value before immersing the cleaner. 2.5.1. Starting the cleaning cycle • Wait until the cleaner is sufficiently charged to start a cycle (green light flashing). • Once charged, unplug the charger cable and put the protective cap back on the charging port. •... -
Page 10: Removing The Cleaner From The Water
2.5.3. Immersing the cleaner Do not immerse the cleaner if the protective cap hasn’t been put back in the charging port. After a cycle is started (slider pushed down, green LED on) you have 30 seconds to put the cleaner in the water. Otherwise you must start over. • Place the cleaner vertically into the water and hold it there while moving it slightly in all directions so that the air inside it comes out. -
Page 11: Maintenance
3. Maintenance Tip: To ensure the longest possible lifetime for the cleaner Inspect all of the parts for which servicing is detailed in this chapter once a month. 3.1. Cleaning the cleaner The appliance must be cleaned regularly using clean or slightly soapy water. Do not use solvents. • Rinse the appliance thoroughly with clean water. •... -
Page 12: Cleaning The Propeller
3.5. Cleaning the propeller To avoid serious injury: • Wear gloves when maintaining the propeller • Always dry the appliance before cleaning the propeller and clean the propeller in a dry area. • Ensure cleaner is in the OFF mode before attempting maintenance (see the first step below). Be careful to force the cleaner to stop before cleaning the propeller (maintain the slider down for 20 seconds). Check that the cleaner is completely off by moving the slider - no indicator should light up. 1. Open the filter access hatch by pressing on the lock. 2. Remove the filter. 3. -
Page 13: Replacing The Brush
3.6. Replacing the brush 1. The brush is equipped with wear indicators; the distance between the indicators and the end of the brush indicates whether the brush is in good condition. 2. When the wear indicators appear, the brush is worn and should be replaced. 3. -
Page 14: Replacing The Tracks
3.7. Replacing the tracks Pull the inside of the track to separate it from the wheel. Place the cleaner on its side Then remove the track from the cleaner. To install the new track, position the inside of the track on the first wheel’s grooves. 1. -
Page 15: Troubleshooting
4. Troubleshooting If a problem occurs, before you contact your retailer, please carry out these few simple checks using the following tables. If the problem persists, contact your retailer. : Actions to be performed by a qualified technician only 4.1. Appliance behaviour • Repeat the immersion steps (see “2.5.3. Immersing the cleaner”), varying the Cleaner does not clean the entire immersion location until you find the right place in the pool. pool • The filter is full or dirty: clean it (see “3.2. Cleaning the filter”). •... -
Page 16: User Alerts
4.2. User alerts • The indicator on the rear of the cleaner blinks to report an alert to the user. • Depending on the number of consecutive blinks, the error is as such : Blinks Error Solutions • Check that debris is not preventing the brushes or tracks from moving freely. •... - Page 17 For more information, product registration and customer support: www.zodiac.com A Fluidra Brand ©2023 Zodiac Pool Systems LLC. All rights reserved. ZODIAC® is a registered trademark of Zodiac International, S.A.S.U., used under license. All other trademarks are the property of their respective owners.
