- Page 1 User’s Manual SRP-F310/F312/F313II THERMAL RECEIPT PRINTER Ver. 2.00 www.bixolon.com...
-
Page 2: Copyright
BIXOLON Co., Ltd. The information contained herein is designed only for use with this BIXOLON product. BIXOLON is not responsible for any direct or indirect damages, arising from or related to use of this information. - Page 3 SRP-F310/F312/F313II Warning Hazardous moving parts Keep fingers and other body parts away Pull the print head lever can be stop all moving parts. IEC 60417-6057 (2011-05) for other moving parts. Mise en garde Les appareils électroniques, tels que les imprimantes, risquent d'être endommagés par l'électricité...
- Page 4 SRP-F310/F312/F313II Compliance information This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.
- Page 5 SRP-F310/F312/F313II Waste Electrical and Electric Equipment (WEEE) This marking shown on the product or its literature, indicates that is should not be disposed with other household wastes at the end of its working life, to prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources.
-
Page 6: Warning & Caution
Do not connect multiple products to a Only use authentic products from BIXOLON. The company will not provide single or faulty power outlet. Use only grounded power outlets that meet the post-sale support for damaged or other industry standard. - Page 7 Do not place heavy product, please contact the original place of purchase or through objects, liquids, or metals on the product. This could cause damage to BIXOLON website’s product repair the product or a fire. page (www.bixolon.com). Ver. 2.00 - 7 -...
-
Page 8: Manual Introduction
SRP-F310/F312/F313II Manual Introduction This manual provides basic information on printers and provides ways to install, use, and check them. In order to protect the safety of users and prevent property damage, be fully familiar with this manual before using the product. Please use it. Manual Symbol Introduction It describes death, physical injuries, serious financial Precaution... -
Page 9: Printer Introduction

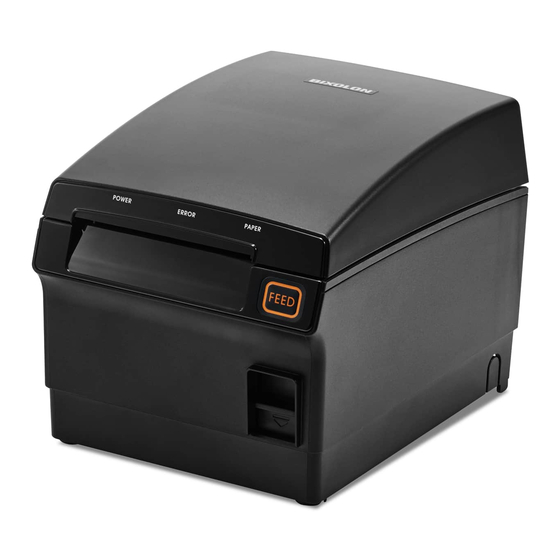

SRP-F310/F312/F313II Printer Introduction The SRP-F310II is a powerful 3-inch (80mm) thermal printing solution, producing high quality receipts and tickets at 180dpi and 203dpi. Featuring a robust, ergonomic front-exit design, with IP12 certification, patented Liquid-Barrier™ technology and built-in power supply, to provide the perfect under counter or space constrained printing solution. -
Page 10: Table Of Contents
SRP-F310/F312/F313II Table of Contents Copyright ........................2 WARNING & CAUTION ....................6 Manual Introduction ....................8 Printer Introduction ....................9 1. Content Confirmation .................... 11 2. Product Part Names ....................12 2-1 Printer Part Names .....................12 2-2 Interface Part Names ....................13 2-2-1 USB (Built-in) ......................13 2-2-2 Ethernet (Built-in) ....................14 2-2-3 Single Serial Interface Card (RS-232C) ..............15... -
Page 11: Content Confirmation
SRP-F310/F312/F313II 1. Content Confirmation • If there is any part missing, please contact the place of purchase. • The actual part may look different from the image. SRP-F310/312/313II Installation Guide AC/DC Adapter Power Cord Roll Paper Ver. 2.00 - 11 -... -
Page 12: Product Part Names
SRP-F310/F312/F313II 2. Product Part Names 2-1 Printer Part Names Manual Cutter Printer Cover Feed Botton Power Switch Cover Open Lever Ver. 2.00 - 12 -... -
Page 13: Interface Part Names
SRP-F310/F312/F313II 2-2 Interface Part Names • Connect the printer to the host computer using the right interface cable that complies with the specifications of the interface. USB Port Ethernet port 2-2-1 USB (Built-in) Pin No. Signal Name Assignment (Color) Function Shell Shield Drain Wire... -
Page 14: Ethernet (Built-In)
If power is on, your data may be lost. - IP and MAC information can be obtained from the self-test - Refer to the utility and network connection manual for Interface connection information. (www.bixolon.com) Ver. 2.00 - 14 -... -
Page 15: Single Serial Interface Card (Rs-232C)
SRP-F310/F312/F313II 2-2-3 Single Serial Interface Card (RS-232C) Serial Port Connect or disconnect the communication cable while the printer power is off. If power is on, your data may be lost. Ver. 2.00 - 15 -... -
Page 16: Parallel Interface Card (Ieee1284)
SRP-F310/F312/F313II 2-2-4 Parallel Interface Card (IEEE1284) Parallel Port Compatibility Pin No. Source Nibble Mode Byte Mode Mode Host nStrobe HostClk HostClk Host / Printer Data 0 (LSB) Data 0 (LSB) Host / Printer Data 1 Data 1 Host / Printer Data 2 Data 2 Host / Printer... -
Page 17: Powered Usb Interace Card
SRP-F310/F312/F313II 2-2-5 Powered USB Interace Card Powered USB Port Pin No. Signal Name Function Shield Shield Frame Ground PGND Main Power Ground VPP24V Main Power Signal Ground Data Line (D+) Data Line (D-) VBUS Hose Power VPP24V Main Power PGND Main Power Ground Connect or disconnect the communication cable while the printer power is off. -
Page 18: Wlan Interface Card
(PDA, PC, smartphone, tablet PC, etc.). Refer to the Network Connection Manual for more detailed instructions about how to establish the connection. The Network connection manual is on the BIXOLON website (www.bixolon.com) We're offering it. Ver. 2.00 - 18 -... -
Page 19: Bluetooth Interface Card
(PDA, PC, smartphone, tablet PC, etc.) Refer to the Bluetooth Connection Manual for more detailed instructions about how to establish the connection. The Bluetooth Connection manual is on the BIXOLON website (www.bixolon.com) We're offering it. Ver. 2.00 - 19 -... -
Page 20: Drawer Kick-Out Port
SRP-F310/F312/F313II 2-2-8 Drawer Kick-out Port Connect the Drawer Kick-out connection cable to the drawer kick-out port on the rear side of the printer. Pin No. Signal name Direction Frame ground Drawer kick- out drive signal 1 Output Drawer open/close signal Input +24V Drawer kick- out drive signal 2... -
Page 21: Installation & Usage
SRP-F310/F312/F313II 3. Installation & Usage 3-1 Printer Installation Placings - Allow sufficient space around the printer for proper ventilation. - Do not place objects close to the back or bottom of the printer, which may hinder the air circulation. - Install the printer on a flat and level surface. - Avoid humid environment. -
Page 22: Power Connection
2) Press the “ON” switch to turn on the printer. - Check the power supply’s label to check its electronic specs. - Only use a power supply provided by BIXOLON. BIXOLON shall bear no responsibility for damage caused by using a third-party power supply. -
Page 23: Inserting And Changing The Paper Roll
SRP-F310/F312/F313II 3-3 Inserting and changing the paper roll - Use paper roll that complies with the specifications Use paper roll that complies with the specifications. If you use a paper roll including paper core attached to paper, the paper may not be properly recognized as paper Empty due to not proper releasing of paper. - Page 24 SRP-F310/F312/F313II 2) When you change the paper, remove the used paper roll. 3) Check the orientation of the roll paper when inserting it into the printer. Ver. 2.00 - 24 -...
- Page 25 SRP-F310/F312/F313II 4) Pull out a small amount of paper as shown in the picture, and close the Pinter Cover. When closing the cover, hold down the center of printer cover firmly so that paper roll is loaded correctly. 5) Cut out the paper as indicated. Ver.
-
Page 26: Using Controller
SRP-F310/F312/F313II 3-4 Using Controller Explanation Power LED The Power LED light is on whenever the printer is on. Error LED is on when there is an error Error LED such as no paper roll, open cover, etc. Paper LED is on when the paper roll is almost used up or there is no paper roll inside. -
Page 27: Printer Setting Change
SRP-F310/F312/F313II 4. Printer Setting Change 4-1 Serial Interface • DIP Switch 1 Function Default Auto-Cutter Selection Disable Enable Handshaking XON / OFF DTR / DSR Word length 7 bits 8 bits Parity check Parity selection EVEN Baud rate selection Refer to the Following Table 1 4-2 Parallel / USB / Ethernet / Wireless LAN / Powered USB Interface •... -
Page 28: Bluetooth Interface
SRP-F310/F312/F313II 4-3 Bluetooth Interface • DIP Switch 1 Function Default Auto-Cutter Selection Disable Enable Reserved SSP Mode Enabled Disabled Reserved Reserved Reserved Reserved Reserved Transmission speed SW1 – 6 SW1 – 7 SW1 – 8 Default 2400 baud 4800 baud 9600 baud 19200 baud 9600... -
Page 29: Order Of Change Settings
SRP-F310/F312/F313II 4-4 Order of Change Settings 1) Turn off the printer. 2) Open the DIP switch cover located at the back of the printer. 3) Set the DIP switch number. 4) Close the DIP switch cover after the settings have been completed. 5) Position the printer in front and turn it on. -
Page 30: Self-Test
SRP-F310/F312/F313II 5. Self-Test The self-test checks whether the printer has any problems. If the self-diagnostics reveal no error in the printer, please see other device or software. If the printer does not run normally, please contact the place of purchase. - Do not open the top cover while the printer is running. -
Page 31: Hexadecimal Dumping
SRP-F310/F312/F313II 6. Hexadecimal Dumping This function allows experienced users to see exactly what data is coming to the printer. This can be useful in finding software problems. When you turn on the hexadecimal dump function, the printer prints all commands and data in hexadecimal format along with a guide section to help you find specific commands. -
Page 32: Maintenance
SRP-F310/F312/F313II 7. Maintenance 7-1 Paper Jam 1) Power cycling the printer will return the movable blade to its home position and clear minor paper jams. 2) Open and close the printer cover if power cycling does not solve the problem. - If a paper jam occurs, do not use force to pull the paper out. -
Page 33: Cleaning Printer
SRP-F310/F312/F313II 7-2 Cleaning Printer • The presence of dust, foreign matter, adhesive matter, or other pollutants inside the printer’s head and internal capacity may undermine printing quality. It is recommended to clean printer at every paper roll change. 1) Open the printer cover and remove the paper currently in use. 2) Residue or contamination of printer head should be wiped out by alcohol for medical. -
Page 34: Specifications
SRP-F310II: 72mm Printing width SRP-F312II: 72mm SRP-F313II: 80mm Paper width 79.5±0.5mm/82.5±0.5mm SRP-F310II: 42(Font A), 56(Font B) Characters per line (default) SRP-F312II: 48(Font A), 64(Font B) SRP-F313II :53(Font A), 71(Font B) SRP-F310II: 82.74 lines/sec, Max. 350mm/sec Printing speed SRP-F312II: 93.33 lines/sec, Max. 350mm/sec SRP-F313II: 93.33 lines/sec, Max. -
Page 35: Recommended Papers
- The use of papers other than those recommended above may cause damage to the printer’s TPH or degrade the printing quality. BIXOLON is not responsible for the damage caused by non-recommended papers. - If you have to use other products, we recommend that you use papers with a similar level of quality to the recommended ones. - Page 36 SRP-F310/F312/F313II Revision History Ver. Date Description 2.00 17-11-2023 New form Ver. 2.00 - 36 -...
