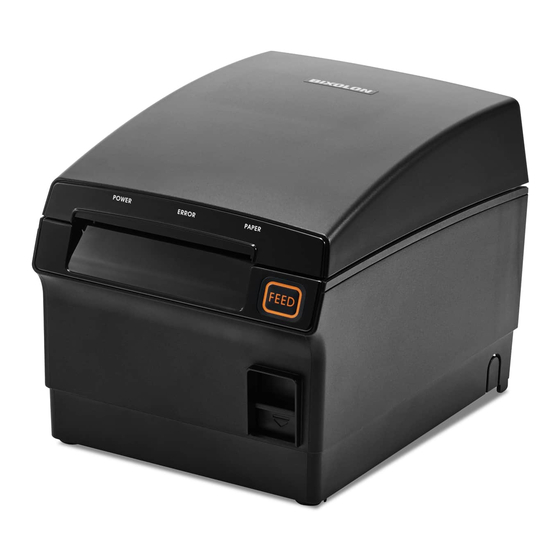

BIXOLON SRP-F310 User Manual
Front exit thermal printer
Hide thumbs
Also See for SRP-F310:
- Command manual (128 pages) ,
- Service manual (66 pages) ,
- Reference manual (42 pages)
Subscribe to Our Youtube Channel
Related Manuals for BIXOLON SRP-F310
Summary of Contents for BIXOLON SRP-F310
- Page 1 User’s Manual SRP-F310/312 Front Exit Thermal Printer Rev. 1.00 http://www.bixolon.com...
-
Page 2: Safety Precautions
SRP-F310/312 ■ Safety Precautions In using the present appliance, please keep the following safety regulations in order to prevent any hazard or material damage. WARNING Violating following instructions can cause serious injury or death. Do not plug several products in one multi-outlet. You must use only the supplied adapter. - Page 3 SRP-F310/312 CAUTION Violating following instructions can cause slight wound or damage the appliance. If you observe a strange smoke, odor or noise from Keep the desiccant out of children’s reach. the printer, unplug it before taking following measures. • If not, they may eat it. •...
-
Page 4: Label Material
SRP-F310/312 ■ Warning - U.S.A This equipment has been tested and found to comply with the limits for a Class A digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. - Page 5 ※ NOTE The socket-outlet shall be near the equipment and it shall be easy accessible. We at BIXOLON maintain ongoing efforts to enhance and upgrade the functions and quality of all our products. In following, product specifications and/or user manual content may be changed without prior notice.
-
Page 6: Table Of Contents
SRP-F310/312 ■ Table of Contents 1. Setting Up the Printer ....................7 1-1 Unpacking........................7 1-2 Connecting the Cables ....................8 1-2-1 Serial Interface (RS-232C) ................8 1-2-2 Parallel Interface (IEEE1284) ................ 9 1-2-3 USB Interface ....................10 1-3 Connecting the Drawer .................... 10 1-4 Setting the Dip Switches.................. -
Page 7: Setting Up The Printer
SRP-F310/312 1. Setting Up the Printer 1-1 Unpacking Your printer box should include these items. If any items are damaged or missing, please contact your dealer for assistance. SRP-F310/312 Roll Paper Manual Power Cord - 7 - Rev. 1.00... -
Page 8: Connecting The Cables
SRP-F310/312 1-2 Connecting the Cables You can connect up the three cables to the printer. They all connect to the connector panel on the back of the printer, which is shown below: ※ NOTE Before connecting any of the cables, make sure that both the printer and the host are turned off. -
Page 9: Parallel Interface (Ieee1284)
SRP-F310/312 1-2-2 Parallel Interface (IEEE1284) IFE-P TYPE Interface connector ETHERNET connector connector Pin No. Source Compatibility Mode Nibble Mode Byte Mode Host nStrobe HostClk HostClk Host / Printer Data 0 (LSB) Data 0 (LSB) Host / Printer Data 1 Data 1 Host / Printer Data 2 Data 2... -
Page 10: Usb Interface
SRP-F310/312 1-2-3 USB Interface ETHERNET connector connector Pin No. Signal Name Assignment (Color) Function Shell Shield Drain Wire Frame Ground VBUS Host Power White Data Line(D-) Green Data Line(D+) Black Signal Ground 1-3 Connecting the Drawer ※ WARNING Use a drawer that matches the printer specification. Using an improper drawer may damage the drawer as well as the printer. -
Page 11: Setting The Dip Switches
SRP-F310/312 1-4 Setting the Dip Switches 1-4-1 Serial Interface Function Default Auto-Cutter Selection Disable Enable Handshaking XON/OFF DTR/DSR Word length 7 bits 8 bits Parity check Parity selection EVEN Baud rate selection Refer to the Following Table 1 DIP switch 1 Setting Function Transmission speed SW1 –... -
Page 12: Installing Or Replacing The Paper Roll
SRP-F310/312 1-5 Installing or Replacing the Paper Roll ※ NOTE Be sure to use paper rolls that meet the specifications. Do not use paper rolls that have the paper glued to the core because the printer cannot detect the paper end correctly. 1-5-1 Make sure that the printer is not receiving data;... - Page 13 SRP-F310/312 1-5-5 Be sure to note the correct direction that the paper comes off the roll. 1-5-6 Pull out a small amount of paper, as shown. Then close the cover. ※ NOTE When closing the cover, press the center of printer cover firmly to prevent paper miss-loading.
-
Page 14: Adjustments And Settings
SRP-F310/312 1-6 Adjustments and Settings The SRP-F310 is set up at the factory to be appropriate for almost all users. It does, however, offer some settings for users with special requirements. It has DIP switches that allow you to change communication settings, such as handshaking and parity check, as well as print density. -
Page 15: Connecting The Computer
SRP-F310/312 1-8 Connecting the computer You need an appropriate interface cable. 1-8-1 Plug the cable connector securely into the printer’s interface connector. 1-8-2 Tighten the screws on both sides of the cable connector. 1-8-3 Attach the other end of the cable to the computer. 1-9 Connecting the Power Supply ※... -
Page 16: Self Test
SRP-F310/312 2. Self Test The self-test checks whether the printer has any problems. If the printer does not function properly, contact your dealer. The self-test checks the following; 2-1 Make sure paper roll has been installed properly. 2-2 Turn on the power while holding down the FEED button with beep. The self-test begins. 2-3 The self-test prints the current printer status, which provides the control ROM version and the DIP switch setting. -
Page 17: Hexadecimal Dumping
SRP-F310/312 3. Hexadecimal Dumping This feature allows experienced users to see exactly what data is coming to the printer. This can be useful in finding software problems. When you turn on the hexadecimal dump function, the printer prints all commands and data in hexadecimal format along with a guide section to help you find specific commands. -
Page 18: Specification
SRP-F310/312 4. Specification Printing method Thermal line printing SRP-F310: 180dpi(7dots/mm) Dot density SRP-F312: 203dpi(8dots/mm) Printing width SRP-F310:72mm, SRP-F312:80mm Paper width 80mm/83mm SRP-F310: 42(Font A), 56(Font B) Characters per line (default) SRP-F312: 48(Font A), 64(Font B) SRP-F310: 63.82 lines/sec, 270 mm/sec Printing speed SRP-F312: 72 lines/sec, 270mm/sec Receive Buffer Size... -
Page 19: Appendix
SRP-F310/312 5. Appendix 5-1 Cleaning Printer Paper dust inside the printer may lower the print quality. In this case clean the printer as follows. 5-1-1 Open the printer cover and remove the paper if exists. 5-1-2 Clean the print head with a cotton swab moistened with alcohol solvent. 5-1-3 Clean the platen roller and paper end sensor with cotton swab moistened with water.
