User's Manual
SRP-F310/312/313II
Front Exit Thermal Printer
Rev. 1.00
http://www.bixolon.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SRP-F310 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for BIXOLON SRP-F310

Summary of Contents for BIXOLON SRP-F310

  • Page 1 User’s Manual SRP-F310/312/313II Front Exit Thermal Printer Rev. 1.00 http://www.bixolon.com...

  • Page 2: Safety Precautions

    SRP-F310/312/313II ■ Safety Precautions In using the present appliance, please keep the following safety regulations in order to prevent any hazard or material damage. WARNING Violating following instructions can cause serious injury or death. Do not plug several products in one multi-outlet.
  • Page 3 SRP-F310/312/313II CAUTION Violating following instructions can cause slight wound or damage the appliance. Keep the desiccant out of children’s reach. If you observe a strange smoke, odor or noise from • If not, they may eat it. the printer, unplug it before taking following measures.
  • Page 4 SRP-F310/312/313II ■ Warning - U.S.A i) Class B Digital Device This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide...

  • Page 5: Label Material

    SRP-F310/312/313II ■ Waste Electrical and Electric Equipment (WEEE) This marking shown on the product or its literature, indicates that is should not be disposed with other household wastes at the end of its working life, To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources.
  • Page 6 SRP-F310/312/313II ■ Introduction SRP-F310/312/313II series printers have been designed to be connected to various types of electronic devices such as ECR (Electronic Cash Register), POS (Point Of Sales), and computer peripheral devices. 1. High speed printing: 82.74/93.33 lines per second.

  • Page 7: Table Of Contents

    SRP-F310/312/313II ■ Table of Contents 1. Setting Up the Printer ....................8 1-1 Unpacking ......................... 8 1-2 Interface ........................9 1-2-1 USB Interface ....................9 1-2-2 Ethernet Interface ..................9 1-2-3 Serial Interface (RS-232C) ................. 10 1-2-3-1 Single Interface .................. 10 1-2-3-2 Dual Interface ..................

  • Page 8: Setting Up The Printer

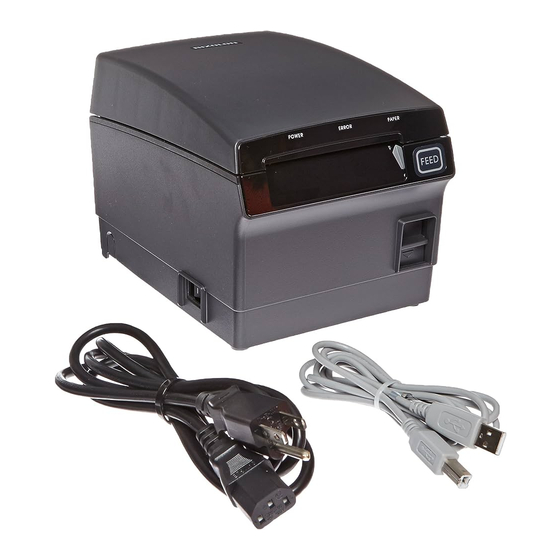

    SRP-F310/312/313II 1. Setting Up the Printer 1-1 Unpacking Your printer box should include these items. If any items are damaged or missing, please contact your dealer for assistance. SRP-F310/312/313II Roll Paper Manual Power Cord - 8 - Rev. 1.00...

  • Page 9: Interface

    * IP and MAC information can be obtained from the self-test. Refer to the Ethernet User’s Manual that is available from the BIXOLON website for more detailed information. * For using this interface in the Bluetooth or WLAN applied product, Printer wiring requires to use double shielded (Cat 7) Ethernet cable.

  • Page 10: Serial Interface (Rs-232C)

    SRP-F310/312/313II 1-2-3 Serial Interface (RS-232C) 1-2-3-1 Single Interface connector ETHERNET Interface connector connector 1-2-3-2 Dual Interface connector ETHERNET Interface connector connector - 10 - Rev. 1.00...
  • Page 11 SRP-F310/312/313II Pin No. Signal Name Direction Function Main Frame GND Frame Ground Output Data Transmission Input Data Reception This signal shows whether the host computer can receive data (hardware flow control). 1) MARK (Logic 1): The host computer can receive data.

  • Page 12: Parallel Interface (Ieee1284)

    SRP-F310/312/313II 1-2-4 Parallel Interface (IEEE1284) connector ETHERNET Interface connector connector Pin No. Source Compatibility Mode Nibble Mode Byte Mode Host nStrobe HostClk HostClk Host / Printer Data 0 (LSB) Data 0 (LSB) Host / Printer Data 1 Data 1 Host / Printer...

  • Page 13: Powered Usb Interface

    SRP-F310/312/313II 1-2-5 Powered USB Interface connector Interface connector ETHERNET connector Pin No. Signal Name Function Shield Shield Frame Ground PGND Main Power Ground VPP24V Main Power Signal Ground Data Line (D+) Data Line (D-) VBUS Hose Power VPP24V Main Power...

  • Page 14: Wireless Lan Interface

    SRP-F310/312/313II 1-2-6-2 Wireless LAN Interface 1) Wireless LAN Communication Specifications Item Specifications Frequency 2.412~2.484 GHz Channel Channel 1~13 Protocol 802.11b, 802.11g, 802.11n 2) Connecting Wireless LAN Printer can be connected to terminal devices with wireless LAN communication capability (PDA, PC, smartphone, tablet PC, etc.).

  • Page 15: Setting The Dip Switches

    SRP-F310/312/313II 1-4 Setting the Dip Switches 1-4-1 Serial Interface • DIP Switch 1 Function Default Auto-Cutter Selection Disable Enable Handshaking XON / OFF DTR / DSR Word length 7 bits 8 bits Parity check Parity selection EVEN Baud rate selection...

  • Page 16: Installing Or Replacing The Paper

    SRP-F310/312/313II 1-5 Installing or Replacing the Paper ※ CAUTIONS Be sure to use paper rolls that meet the specifications. Do not use paper rolls that have the paper glued to the core because the printer may not detect the paper end correctly.
  • Page 17 SRP-F310/312/313II 1-5-5 Check the orientation of the roll paper when inserting it into the printer. 1-5-6 Pull out a small amount of paper, as shown. Then close the cover. ※ CAUTIONS When closing the cover, press the center of printer cover firmly to prevent paper miss-loading.

  • Page 18: Using 83Mm Paper

    SRP-F310/312/313II 1-6 Using 83mm Paper Use of the partition depends on the width of the paper. 1-6-1 Remove the partition as shown in the following picture when using 83 mm paper. ※ NOTE Partition is installed at the factory for 80 mm paper.

  • Page 19: Adjustments And Settings

    SRP-F310/312/313II 1-8 Adjustments and Settings The SRP-F310/312/313II is set up at the factory to be appropriate for almost all users. It does, however, offer some settings for users with special requirements. It has DIP switches that allow you to change communication settings, such as handshaking and parity check, as well as print density.

  • Page 20: Connecting The Computer

    SRP-F310/312/313II 1-10 Connecting the Computer You need an appropriate interface cable. 1-10-1 Plug the cable connector securely into the printer’s interface connector. 1-10-2 Tighten the screws on both sides of the cable connector. 1-10-3 Attach the other end of the cable to the computer.

  • Page 21: Self Test

    SRP-F310/312/313II 2. Self Test The self-test checks whether the printer has any problems. If the printer does not function properly, contact your dealer. The self-test checks the following: 2-1 Make sure paper roll has been installed properly. 2-2 Turn on the power while holding down the FEED button with beep.

  • Page 22: Hexadecimal Dumping

    SRP-F310/312/313II 3. Hexadecimal Dumping This feature allows experienced users to see exactly what data is coming to the printer. This can be useful in finding software problems. When you turn on the hexadecimal dump function, the printer prints all commands and data in hexadecimal format along with a guide section to help you find specific commands.

  • Page 23: Specification

    SRP-F310/312/313II 4. Specification Printing method Thermal line printing SRP-F310II: 180dpi(7dots/mm) Dot density SRP-F312II: 203dpi(8dots/mm) SRP-F313II: 203dpi(8dots/mm) SRP-F310II: 72mm Printing width SRP-F312II: 72mm SRP-F313II: 80mm Paper width 79.5±0.5mm/82.5±0.5mm SRP-F310II: 42(Font A), 56(Font B) Characters per line (default) SRP-F312II: 48(Font A), 64(Font B) SRP-F313II :53(Font A), 71(Font B) SRP-F310II: 82.74 lines/sec, Max.

  • Page 24: Appendix

    SRP-F310/312/313II 5. Appendix 5-1 Cleaning Printer Paper dust inside the printer may lower the print quality. In this case clean the printer as follows: 5-1-1 Open the printer cover and remove any paper. 5-1-2 Clean the print head with a cotton swab moistened with alcohol solvent.
