AX99100
PCIe to Multi I/O Controller
Product Description
The AX99100 is a single chip solution that fully integrates PCIe 2.0 Gen 1 end-point controller and SerDes with a
2
variety of peripherals such as four High Speed Serial Ports, one Parallel Port, I C Master, High Speed SPI, Local
Bus (ISA-Like), and GPIOs. It consists of four main configurations such as 4S (PCIe to Quad Serial), 2S+1P (PCIe
to Dual Serial and Single Parallel), 2S+SPI (PCIe to Dual Serial and SPI), and LB (PCIe to Local Bus/ISA-Like)
for different kinds of applications.
The AX99100, in 68-pin QFN, are available with RoHS compliant package and supports commercial grade
operating temperature range from 0 to 70°C and industrial grade from -40 to 85°C.

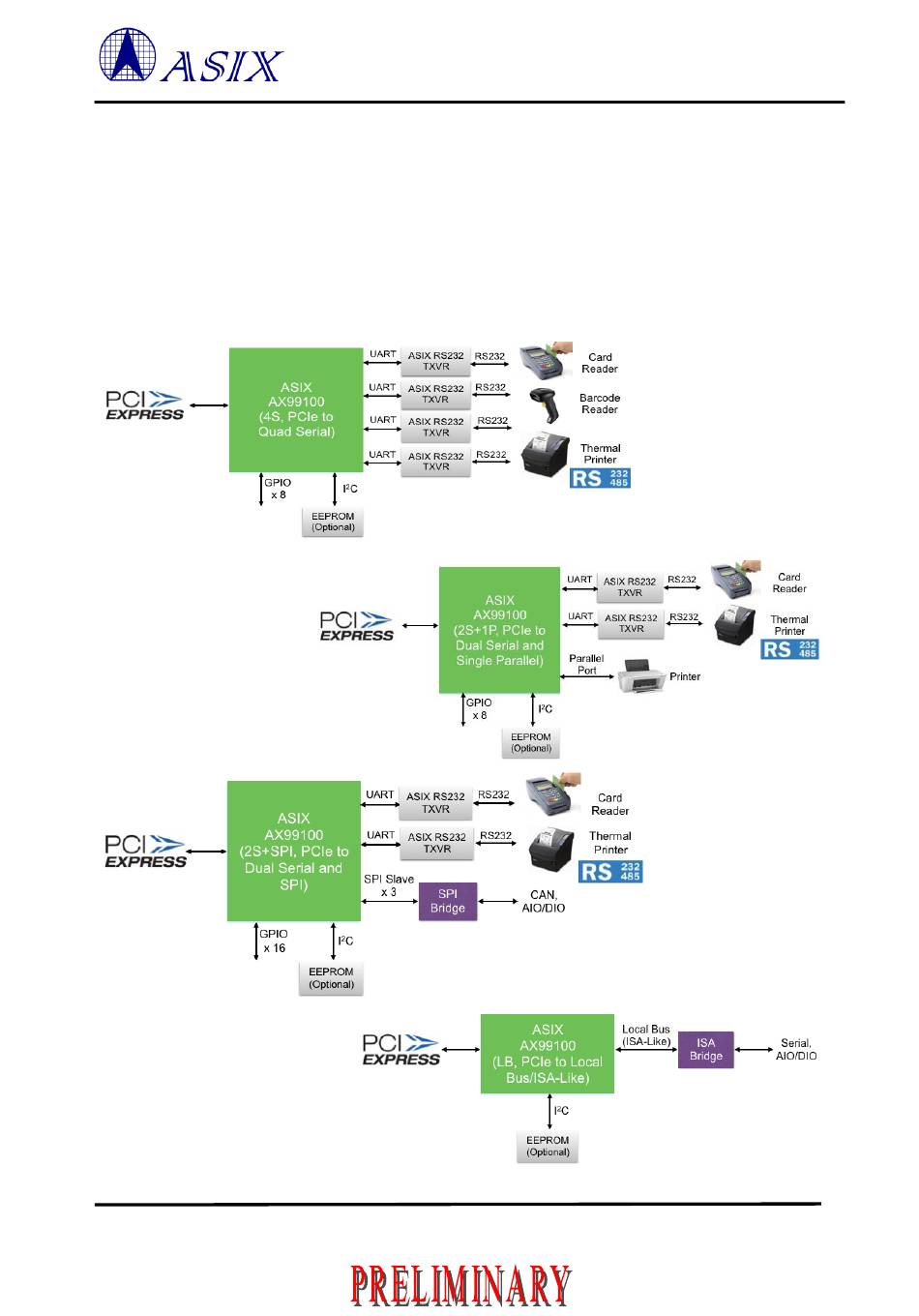

Target Applications
2
