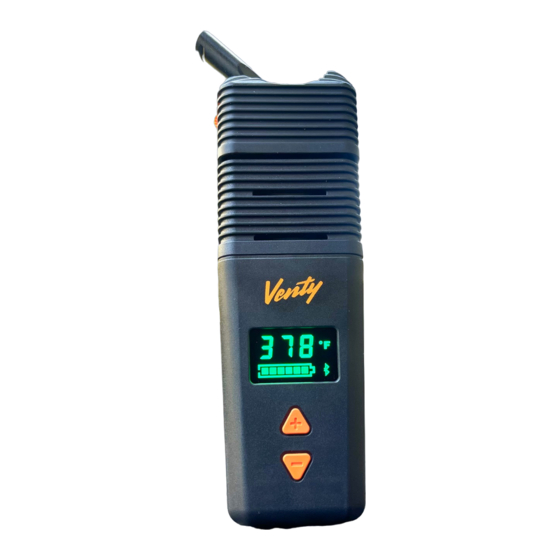

STORZ & BICKEL Venty Instructions For Use Manual
  1. Manuals
  2. Brands
  3. STORZ & BICKEL Manuals
  4. Vaporizers
  5. Venty
  6. Instructions for use manual

STORZ & BICKEL Venty Instructions For Use Manual

Hide thumbs Also See for Venty:
Table of Contents

Advertisement

Quick Links

Download this manual
de
en
fr
es
it
nl
GEBR AUCHSA NWEIS U NG
INSTRUCTIONS FOR US E
MODE D' EMPLOI
MODO DE EMPLEO
ISTRUZIONI PER L' USO
GEBRUIKSA A NWIJZING
Seite 2
page 31
page 22
página 32
pagina 42
pagina 52

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Venty and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for STORZ & BICKEL Venty

Summary of Contents for STORZ & BICKEL Venty

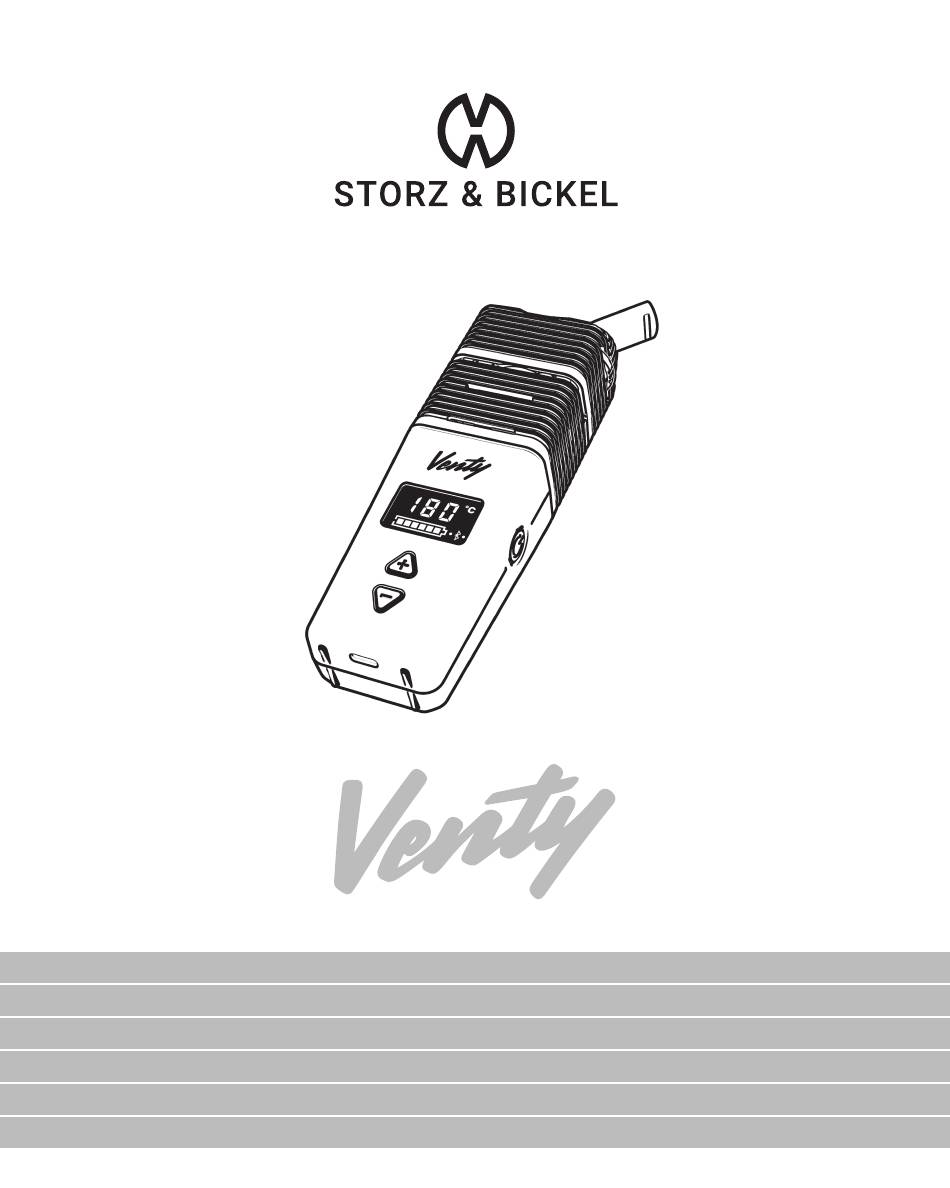

  • Page 1 GEBR AUCHSA NWEIS U NG Seite 2 INSTRUCTIONS FOR US E page 31 MODE D‘ EMPLOI page 22 MODO DE EMPLEO página 32 ISTRUZIONI PER L‘ USO pagina 42 GEBRUIKSA A NWIJZING pagina 52...

  • Page 2: Table Of Contents

    Safety Recommendations .........................35 1.3.2.1 Risk of Injury due to electric Shock ..................35 1.3.2.2 Danger of Injury due to Burning/Vapors .................35 1.3.2.3 Risk of Injury due to various Causes ................35 VENTY ..............................36 Scope of Delivery ...............................36 Functional Elements ............................37 Cooling Unit ..............................38...
  • Page 3 I N S T R U C T I O N S F O R U S E E N G L I S H Table of Contents ............................Page Storage ..............................47 6.10 STORZ & BICKEL Web App ........................47 6.10.1 Connecting the Vaporizer with a Smartphone................47 6.10.2 The menu items of the STORZ &...

  • Page 4: For Your Safety

    1 F O R Y O U R S A F E T Y 1.1 Explanation of Signs Please follow these instructions carefully! Symbol for the manufacturer - the manufacturer‘s name and address are next to the symbol. The device may not be disposed of in normal household waste. The X on the trash can indicates the necessity of disposing of this device separately.

  • Page 5: Legend

    1 F O R Y O U R S A F E T Y Separate supply unit: To indicate that a specific separate supply unit is required for connecting electrical equipment to the supply mains. 1.2 Legend Bullet points Operating instructions Result Ö...

  • Page 6: Safety Recommendations

    1 F O R Y O U R S A F E T Y 1.3.2 Safety Recommendations 1.3.2.1 Risk of Injury due to electric shock X The Vaporizer and USB-C Cable must be switched off and disconnected from the power supply after use, before any maintenance work and during thunderstorms. X Make sure that the USB-C Cable is not damaged by bending, crushing or pulling.

  • Page 7: Venty

    2 V E N T Y 2.1 Scope of Delivery 1 pc. VENTY Vaporizer 1 pc. Instruction for Use (Concise) 1 pc. Filling Chamber Tool 1 pc. USB-C Cable (USB type C to USB type C plug) 2 pcs. O-Ring Ø9x1,5mm 2 pcs. Normal Screen, small 3 pcs.

  • Page 8: Functional Elements

    2 V E N T Y 2.2 Functional Elements 1 Filling Chamber 2 Mouthpiece 3 Setting Wheel for Airflow 4 Temperature Display 5 Bluetooth Symbol 6 Power Button 7 Plus Button 8 Minus Button 9 USB-C Charging Socket 10 Battery Display 11 Cooling Unit...

  • Page 9: Cooling Unit

    2 V E N T Y 2.3 Cooling Unit 1 Rotary Cap 2 Mouthpiece 3 Mouthpiece Seal Ring 4 Cooling Unit Cap 5 Setting Wheel for Airflow 6 Cooling Unit Screen 7 Cooling Unit Base 8 Screen (Coarse Mesh Width) 9 Cooling Unit Bottom Seal Ring 2.4 Service X In case of incomplete delivery, technical problems, questions about the device and its disposal and in warranty cases please contact our Service Center under: www.storz-bickel.com/contact.

  • Page 10: Intended Use

    3 I N T E N D E D U S E The Vaporizer is used to produce fragrances or aromas from the herbs and plant parts listed in Chapter 4. The scents and aromas are released by means of vaporization with hot air and can be inhaled directly. The Vaporizer is not intended for medical-therapeutic purposes.

  • Page 11: Commissioning And Operation

    6 C O M M I S S I O N I N G A N D O P E R AT I O N 6.1 Unpacking X Check the Vaporizer for completeness using Chapter 2.1 “Scope of Delivery”, page 36. X Check the Vaporizer and the USB-C Cable for externally visible damage.

  • Page 12: End Of The Charging Process

    6 C O M M I S S I O N I N G A N D O P E R AT I O N Charging with a USB - Quick Charge (if supported Charging with a low power charger by the charger) charger Charge Flash in an ascending order Quickly flash in an Slowly flasingh in an status fields to indicate charging level...

  • Page 13: Heating Up

    6 C O M M I S S I O N I N G A N D O P E R AT I O N X Fill the Filling Chamber completely with crushed plant material up to the rim. Ö Excessively compressed plant material or an overfilled Filling Chamber makes inhalation more difficult.

  • Page 14: Default Settings

    6 C O M M I S S I O N I N G A N D O P E R AT I O N 6.4.2 Default Settings The Vaporizer offers three factory preset temperature levels: Base Temperature: 180 °C (356 °F) Booster Temperature offset: +15 °C (+27 °F) (relative to the Base Temperature) corresponds to 195 °C (383 °F) Superbooster Temperature offset: +15 °C (+27 °F)

  • Page 15: Adjusting Temperatures

    6 C O M M I S S I O N I N G A N D O P E R AT I O N 6.4.4 Adjusting Temperatures Base Temperature Booster Temperature Superbooster Temperature (180°C/356°F as default) (+15°C/27°F) (+15°C/27°F) Is automatically active when By double pressing the Power By double pressing the Power device is turned on by pressing Button.

  • Page 16: Celsius/Fahrenheit

    6 C O M M I S S I O N I N G A N D O P E R AT I O N 6.4.5 Celsius/Fahrenheit X Press the plus and minus buttons simultaneously for 3 seconds. Ö Display changeover from Celsius to Fahrenheit and vice versa. 6.4.6 Display Backlight X Press the plus and minus buttons simultaneously for 5 seconds.

  • Page 17: Adjustable Airflow

    6 C O M M I S S I O N I N G A N D O P E R AT I O N 6.6 Adjustable Airflow The Vaporizer has an adjustable airflow, which can be adjusted steplessly with the help of the Setting Wheel (with constant draft resistance).

  • Page 18: Automatic Switching Off

    6 C O M M I S S I O N I N G A N D O P E R AT I O N 6.8 Automatic Switching Off Two minutes after the last keystroke or the last application, the Vaporizer switches off automatically to conserve battery power.
  • Page 19 6 C O M M I S S I O N I N G A N D O P E R AT I O N Fahrenheit/Celsius Click on the temperature to change from degree Celsius to degree Fahrenheit and vice versa. Device Device-related information, such as operating hours, software versions etc.

  • Page 20: Cleaning/Hygiene

    7 C L E A N I N G / H Y G I E N E 7.1 Cooling Unit Cooling Unit with Mouthpiece must be free of deposits. Deposits on the inside of the Cooling Unit are mainly caused by steam condensate. Cleanliness is a prerequisite for proper function. X Check the Cooling Unit with Mouthpiece prior to each use.

  • Page 21: Cleaning The Cooling Unit And The Filling Chamber Screen

    7 C L E A N I N G / H Y G I E N E X Unscrew the Cooling Unit Base from the Vaporizer by turning it 90° counterclockwise. X Carefully press out the Screen from above using a cotton swab. X Lever out the large Base Seal Ring with the Filling Chamber Tool at the recess in the groove.

  • Page 22: Cleaning The Cooling Unit And The Filling Chamber

    7 C L E A N I N G / H Y G I E N E 7.1.2.1 C leaning the Cooling Unit and the Filling Chamber Screen with rinsing water X Place all parts in warm rinsing water for at least five minutes. X Rinse all parts under running water for at least one minute. X Let all parts dry completely.

  • Page 23: Check The Cooling Unit Parts And The Filling Chamber Screen

    7 C L E A N I N G / H Y G I E N E 7.1.3 C heck the Cooling Unit Parts and the Filling Chamber Screen X Check all parts for damaged surfaces, cracks, softening, hardening, embrittlement, contamination or dis- coloration. X Discard damaged parts. 7.1.4 A ssembling the Cooling Unit CAUTION Plant particles in the Cooling Unit Clogging of the Cooling Unit...

  • Page 24: Removing The Screen

    7 C L E A N I N G / H Y G I E N E 7.2.2 Removing the Screen X If a Screen is clogged, it must be replaced. X Press in the Screen, using the Filling Chamber Tool along the groove of the Filling Chamber. Ö...

  • Page 25: Optional Accessories

    8 O P T I O N A L A C C E S S O R I E S 8.1 List of optional accessories Wear & Tear Set - SKU 11 64 The Wear & Tear Set contains three Mouthpieces, one Cooling Unit, one Screen Set, two Filling Chamber Tools and a Cleaning Brush.

  • Page 26: Faults

    9 FA U LT S 9.1 Possible Faults / Troubleshooting Vaporizer cannot be switched on Device is empty. XCheck battery display. XCharge battery if necessary. ERR 001 Device temperature is XLet the Vaporizer cool down. too high. ERR 002 Device temperature is XMove the Vaporizer to a warm too low.

  • Page 27: Technical Specifications

    10 T E C H N I C A L S P E C I F I C AT I O N S 10.1 Vaporizer Supply voltage: 5 VDC USB / 5-15 VDC USB-C PD Power consumption: 130 W max. Operating temperature: 5 °C - 35 °C (41 °F - 95 °F) Temperature range: 40 °C - 210 °C (104 °F - 410 °F) Size: 15,7 x 5,5 x 3,7 cm (6.18 x 2,.17 x 1.46 inch) Weight: approx.

  • Page 28: Simplified Eu Declaration Of Conformity

    N O R M AT I V E R E Q U I R E M E N T S 11.1 Simplified EU Declaration of Conformity We, STORZ & BICKEL GmbH, herby declare under our sole responsibility that the VENTY is in conformity with the regulations 2014/30/EU, 2014/53/EU and 2011/65/EU.

  • Page 29: Copyright

    12 W A R R A N T Y, L I A B I L I T Y, C O P Y R I G H T 12.3 Copyright This document is copyright protected, and may not be used either in whole or in part pursuant to Sections 15 et seqq.
