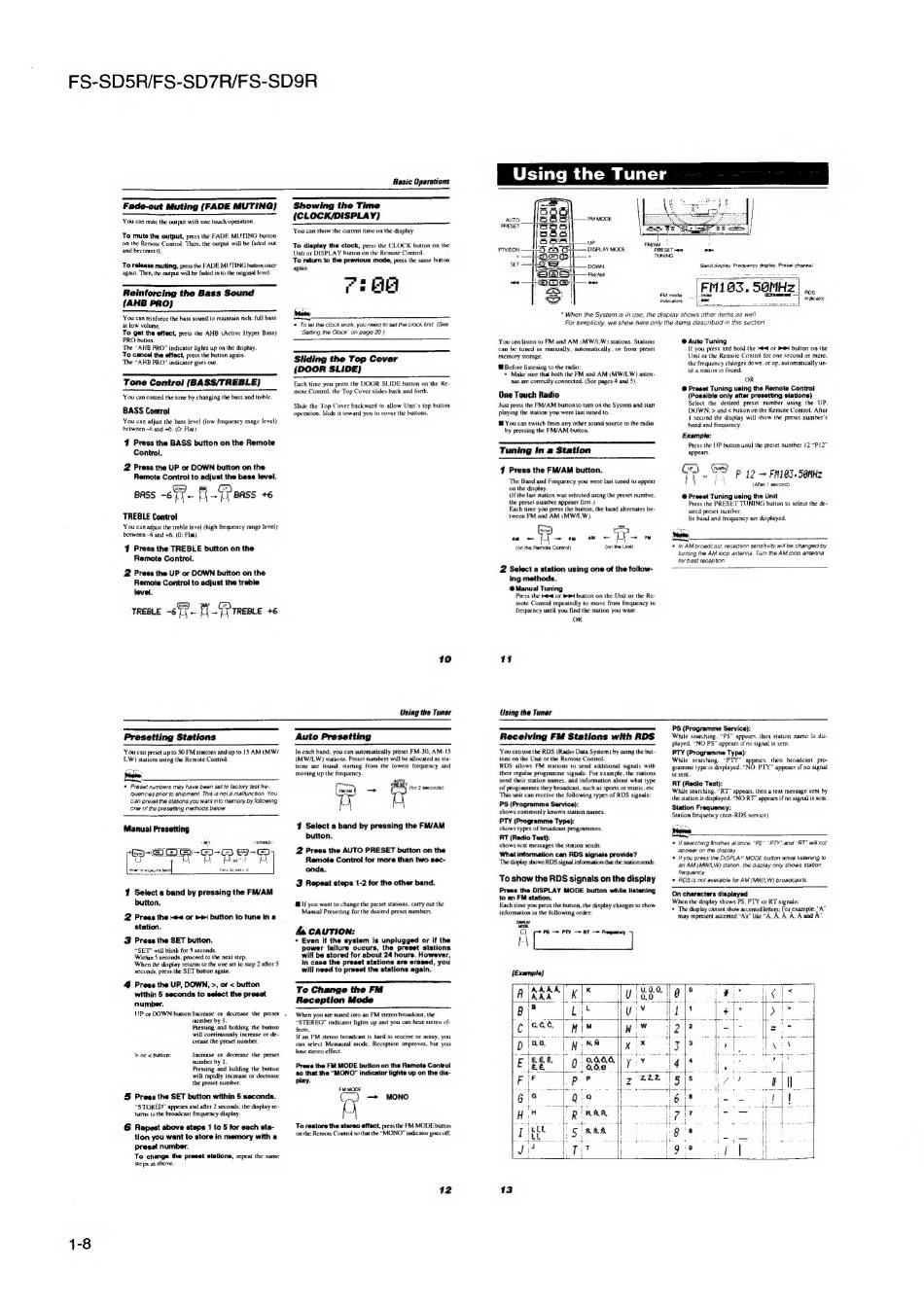

FS-SD5R/FS-SD7R/FS-SD9R
Basic Operations
Fade-out Muting {FADE MUTING}
'You can mute the output with one touch operation.
To mute the output, press the FADE MUTING button
on the Remote Control. 'Then. the output will be faded out
and becomes 0.
To release muting, press the FADE MIITING button once
again. Then, (he output will be faded in to the original level.
Reinforcing the Bass Sound
(AHB PRO}
You can reinforce the bass sound to maintain rich, full bass
at low volume.
To get the effect, press the AHB (Active Hyper Bass}
PRO button,
'The "AHB PRO" indicator lights up on the display.
To cancel the effect, press the bution again.
'The "AHB PRO" indicator goes out.
Tone Control (BASS/TREBLE)
'You can control the tone by changing the bass and treble.
BASS Control
You can adjust the bass level (law frequency range level)
between ~6 and +6. (0: Flat)
1 Press the BASS button on the Remote
Control.
2 Press the UP or DOWN button on the
Remote Control to adjust the bass level.
BASS a= a FP pass +6
TREBLE Control
You can adjust the treble level (high frequency range level}
between -6 and +6. (0: Flat)
1 Press the TREBLE button on the
Remote Control.
2 Press the UP or DOWN button on the
Remote Control to adjust the treble
fovel.
TREBLE -677~ [FV TREBLE +6
Showing the Time
{CLOCK/DISPLAY)
'You can show the current lime on the display.
To display the clock, press the CLOCK button on the
Unit or DISPLAY button on the Remote Control.
To return to the previous mode, press the same button
BT,
Se
Note:
—
* Tolet the clock work, you need to set the clock first. (See
'Setting the Clock' on page 20)
Sliding the Top Cover
{DOOR SLIDE)
Each time you press the DOOR SLIDE button on the Re-
mote Control, the Top Cover slides back and forth.
Shade the 'op Cover backward to allow Unit's top button
'operation. Slide it toward you lo cover the buttons.
10
Using the Tuner
Presetting Stations
'You can preset up to 30 PM stations and up to 15 AM (MW/
T.W) stations using the Remote Control.
Preset numbers may have been set to factory test fre-
quencigs prior to shipment
This 1s nota maituncton.
You
Can preset the stations you want into memory by following
'one of the presetting methods below.
Manual Presetting
= stoeD:
el
[oer c o m e ne tnd
rhea vate t
1 Select a band by pressing the FM/AM
button.
2 Press
the +¢< of » Pi button to tune in a
station.
3 Press the SET button.
"SET™ will blink for 5 seconds.
Within 5 seconds, proceed to the next step.
'When the display returns to the one set in step 2 after 5
seconds, press the SET button again.
@ Press the UP, DOWN, >, or < button
within 5 seconds to select the preset
number.
UP or DOWN button:Increase of decrease the preset
.
number by 1.
Pressing and holding the button
will continuously increase or de-
crease the preset number.
> or < button:
Increase or decrease the preset
number by 1.
Pressing and holding the button
will rapidly increase or decrease
the preset number.
5 Press the SET button within 5 seconds.
"STORED" appears and after 2 seconds. the display re-
turns to the broadcast frequency display.
6 Repeat above steps 1 to 5 for each sta-
tion you want to store in memory with a
preset number.
To change the preset stations, repeat the same
steps as above.
Auto Presetting
In each band, you can automatically preset FM-30, AM-15
(MW/LW) stations. Preset numbers will be allocated as sta-
tions are found. starting from the lowest frequency and
moving up the frequency
(Mo,
*
a (lor? seconds)
1 Select a band by pressing the FM/AM
button.
2 Press the AUTO PRESET button on the
Remote Control for more than two sec-
onds.
3 Repeat steps 1-2 tor the other band.
If you want to change the preset stations. carry out the
Manual Preseiting for the desired preset numbers.
4 CAUTION:
* Even if the system is unplugged or if the
power failure occurs, the preset stations
will be stored for about 24 hours. However,
in case the preset stations are erased, you
will need to preset the stations again.
To Change the FM
Reception Mode
When you are tuned into an FM stereo broadcast, the
"STEREO" indicator lights up and you can hear stereo ef-
fects.
If an FM stereo broadcast is hard to receive or noisy. you
can select Monaural mode. Reception improves, but you
lose stereo effect.
Press the FM MODE button on the Remote Control
20 that the
"MONO" indicator lights up on the dis-
Play.
FM MODE
C\)
—> Mono
To restore the stereo effect, press the FM MODE button
on the Remote Control so that the "MONO" indicator goes off.
12
Using the Tuner
Band display Frequency display, Preset channe!
* When the System is in use, the dispiay shows other items as well.
For simplicity, we show here only the items described in this Section
You can listen to FM and AM (MW/LW) stations. Stations
can be tuned in manually, automatically. of from preset
memory storage.
@ Before listening to the radio:
* Make sure that both the FM and AM (MW/LW) anten-
as are correctly connected. (See pages 4 and 5).
One Touch Radio
Just press the FM/AM button to tum on the System and start
playing the station you were last tuned fo.
B You can switch from any other sound source to the radio
by pressing the FM/AM button.
Tuning In a Station
1 Press the FM/AM button.
'The Band and Frequency you were last (uned to appeat
on the display.
(f the last station was selected using the preset number,
the preset number appears first.)
Each time you press the button, the band alternates be-
tween FM and AM (MW/L.W).
ie -F. mo me Tp
{on the Remote Control)
(on the Una)
2 Select a station using one of the follow-
ing methods.
@ Manual Tuning
Press the Kd or BP button on the Unit or the Re-
mote Control repeatedly to move from frequency to
frequency until you find the station you want
OR
Using the Tuner
@ Auto Tuning
If you press and hold the Med or 1 button on the
Unit or the Remote Control for one second or more,
the frequency changes down.
or up, automatically un-
ul a station is found,
OR
@ Preset Tuning using the Remote Controi
(Possible only after presetting stations)
Select the desired preset number using the UP.
DOWN, > and < button on the Remote Control. Afler
1 second the display will show the preset qumber's
band and frequency.
Example:
Press the UIP button until the preset number 22 "P12"
appears.
2
Gen
fio
@ Preset Tuning
using the Unit
Press the PRESET TUNING button to select the de-
sired preset number.
Its band and frequency are displayed.
P 12 — FNI@5. S@MHz
(After 1 second)
« in AM broadcast reception sensitivity will be changed by
turning the AM loop antenna, Turn ne AM loop antenna
for best recepton
Receiving FM Stations with RDS
You can use the RDS (Radio Data System) by using the but-
tons on the Unit or the Remote Control.
RDS allows FM stations to send additional signals with
their regular programme signals. For example. the stations
send their station names, and information about what type
of programmes they broadcast, such as sports or music, etc
'This unit can receive the following types of RDS signals:
PS (Programme Servi
shows commonly known station names.
PTY (Programme Type):
shows types of broadcast programmes.
RT (Radio Text):
shows text messages the station sends.
'What information can RDS signais provide?
The display shows RDS signal information that the station sends.
To show the RDS signals on the display
Press the DISPLAY MODE button while listening
to an FM station.
Each time you press the button, the display changes to show
information in the following order:
DeeeaY
'woe
cy
PS —> PTY —* RT —> Frequency
A
PS (Programme Service):
While searching. "PS" appears. then station name is dis-
played. "NO PS" appears if no signal is sent.
PTY (Programme Type)
While searching. "PTY" appears, then broadcast pro-
gramme lype is displayed. "NO PTY" appears if no signal
is sent.
RT (Radio Text):
While searching. "RT" appears, then a text message sent by
the station is displayed. "NO RT" appears if no signal is sent.
Station Frequency:
Station frequency (non-RDS service)
© if searching finishes at once. "PS" "PTY" and "RT" will not
appear on the display
* Ifyou press the DISPLAY MODE button while listening to
an AM (MW/LW) station. the display only shows station
frequency
* RDS is not available for AM (MW/LW) broadcasts.
On characters displayed
When the display shows PS, PTY or RT signals:
+ The display cannot show accented lettet
may represent accented " A ' s "
like "A,
sli
| at
4b
4
onl
on
a
N:
.N
|
9.90.06
7
| 9 dae
a
p P
H
zZ22
sand
We
faeces
Q:a
li
Pete
i
c t a i a r e a a l |
586s
|!
I" TT
ibe
49 | On
®
~*~
-
N
13
