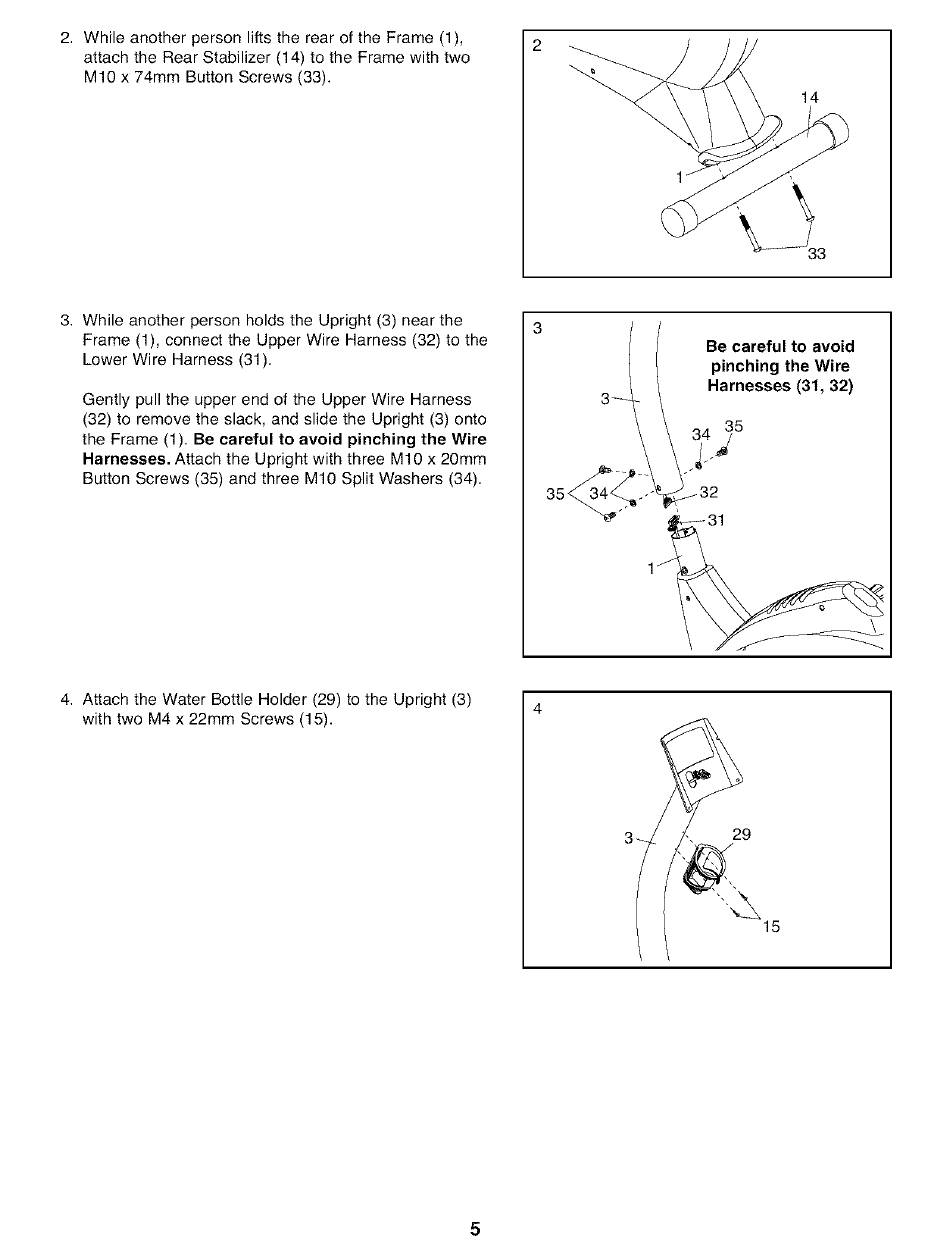

2. While another person lifts the rear of the Frame (1),
attach the Rear Stabilizer (14) to the Frame with two
M1O x 74mm Button Screws (33).
14
3. While another person holds the Upright (3) near the
Frame (1), connect the Upper Wire Harness (32) to the
Lower Wire Harness (31).
Gently pull the upper end of the Upper Wire Harness
(32) to remove the slack, and slide the Upright (3) onto
the Frame (1). Be careful to avoid pinching the Wire
Harnesses. Attach the Upright with three M10 x 20mm
Button Screws (35) and three M10 Split Washers (34).
3
Be careful to avoid
pinching the Wire
Harnesses (31, 32)
34 35
\
4. Attach the Water Bottle Holder (29) to the Upright (3)
with two M4 x 22mm Screws (15).
4
29
15
5
