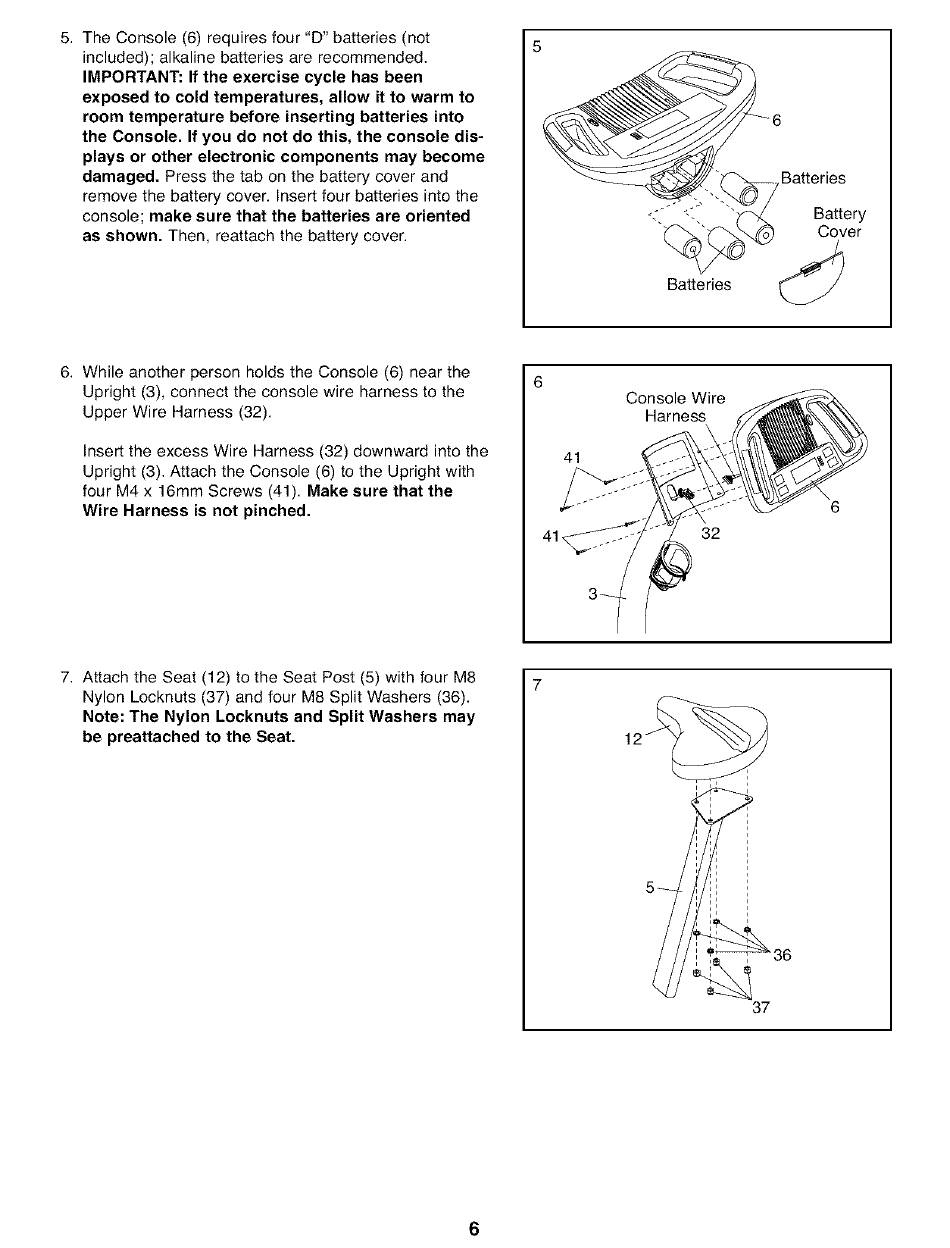

5. The Console (6) requires four "D" batteries (not
included); alkaline batteries are recommended.
IMPORTANT: If the exercise cycle has been
exposed to cold temperatures, allow it to warm to
room temperature before inserting batteries into
the Console• If you do not do this, the console dis-
plays or other electronic components may become
damaged. Press the tab on the battery cover and
remove the battery cover. Insert four batteries into the
console; make sure that the batteries are oriented
as shown• Then, reattach the battery cover.
5
_ 6Batt rl
• _j e 'es
attver r,
Batteries _)
6. While another person holds the Console (6) near the
Upright (3), connect the console wire harness to the
Upper Wire Harness (32).
Insert the excess Wire Harness (32) downward into the
Upright (3). Attach the Console (6) to the Upright with
four M4 x 16mm Screws (41). Make sure that the
Wire Harness is not pinched.
6
Console Wire
Harness
41
\
6
7. Attach the Seat (12) to the Seat Post (5) with four M8
Nylon Locknuts (37) and four M8 Split Washers (36).
Note: The Nylon Locknuts and Split Washers may
be preattached to the Seat.
7
36
37
