Summary of Contents for Seville Classics UltraHD 20157

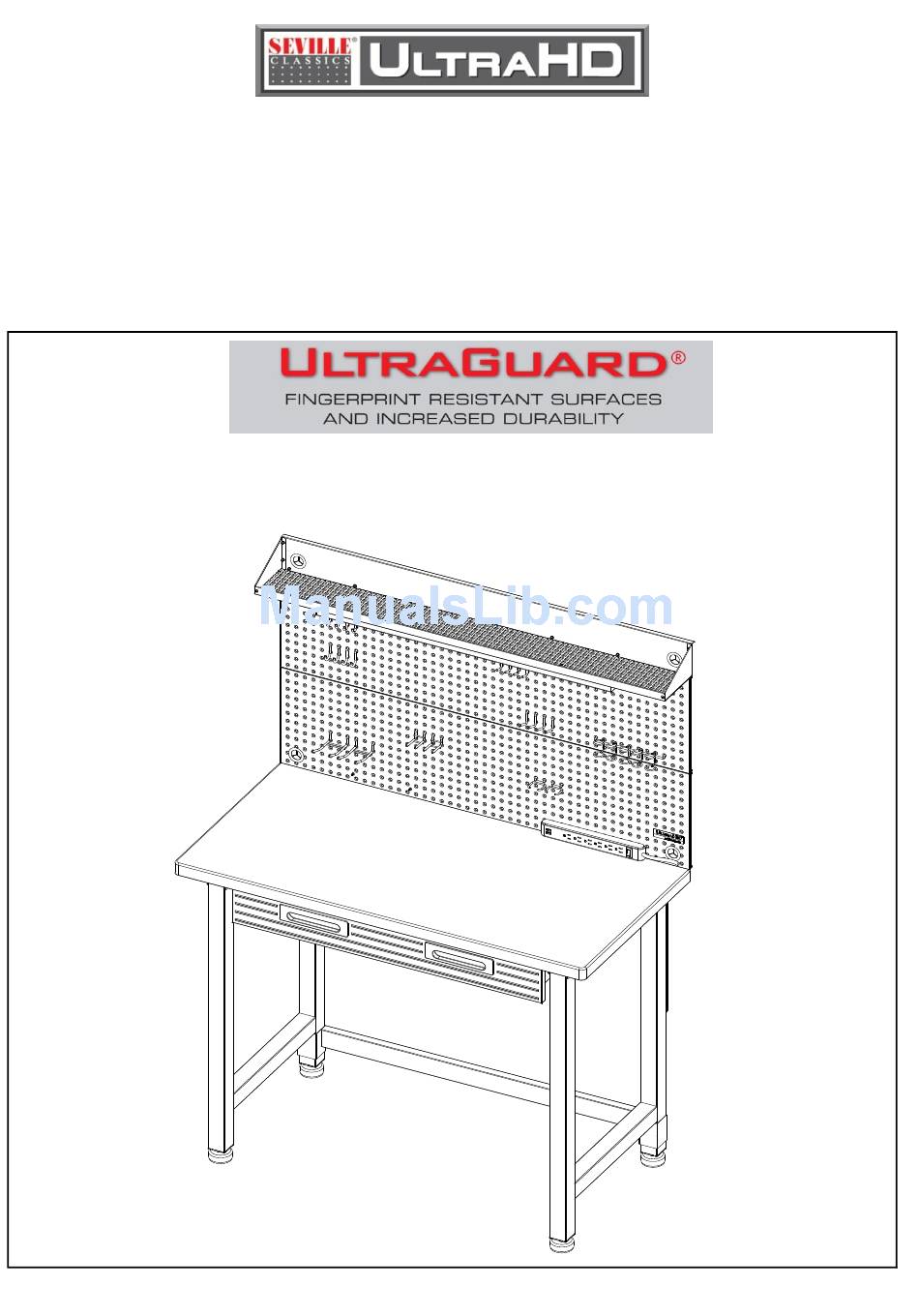

- Page 1 ASSEMBLY INSTRUCTIONS UltraHD® Workcenter LED work light included (Model No. 20157) 48 in W X 24 in D X 65.5 in H (1.21 m x 60.9 cm x 1.66 m) Reference page 8 for special care and maintenance of stainless steel TR170815...
-
Page 2: Parts List
PARTS LIST (pg 1 of 9) Please check the parts carefully according to the parts list. If you are missing any parts, please contact our customer service department (please refer to page 9 of 9). Drawer Top Cantilever Shelf Parts Parts Qty. - Page 3 PARTS LIST (pg 2 of 9) Please check the parts carefully according to the parts list. If you are missing any parts, please contact our customer service department (please refer to page 9 of 9). #104 #102 #101 #103 #100 #107 #106 #105...
- Page 4 ASSEMBLY INSTRUCTIONS (pg 3 of 9) *NOTE: We recommend TWO people to assemble the workbench. TIP: A magnetic screwdriver is included for your convenience. If a power screwdriver is used, keep on a low torque setting. Install (#5-B) Leg Piece. Step 1.
- Page 5 ASSEMBLY INSTRUCTIONS (pg 4 of 9) *NOTE: We recommend TWO people to assemble the workbench. Step 4. Install (#49) Pegboard Long Support Bar. Attach (#49) Pegboard Long Support Bar to the back of the workbench, line up the screw holes, use (#40) Screw E with (#27- B) Washer to tighten.
- Page 6 ASSEMBLY INSTRUCTIONS (pg 5 of 9) *NOTE: We recommend TWO people to assemble the workbench. Step 8. Install (#20-3 & #20-4) Left & Right Drawer Side Panels and (#20-5) Drawer Back Panel. Attach (#20-3 & #20-4) Left & Right Drawer Side Panels and (#20-5) Drawer Back Panel to the (#19-2) Drawer Base Panel.
- Page 7 ASSEMBLY INSTRUCTIONS (pg 6 of 9) *NOTE: We recommend TWO people to assemble the workbench. Step 11. Insert Drawer Pull out the drawer sliders and inner ball bearing track completely. Then attach and fit the Drawer to the inner track of the sliders and slide drawers WARNING: Pull out the Ball Bearing track towards you.
- Page 8 ASSEMBLY INSTRUCTIONS (pg 7 of 9) *NOTE: We recommend TWO people to assemble the workbench. Step 11. Install (#20-7) Drawer Divider Insert Drawer Divider into the drawer. The solid wall of the divider should be facing the desired slot position. Slide the divider towards the slot, then push down into the slots.
- Page 9 ASSEMBLY INSTRUCTIONS (pg 8 of 9) *NOTE: We recommend TWO people to assemble the workbench. Step 14. Place (#100), (#101), (#102), (#103), #104), (#105), (#106), (#107) Hooks to Pegboard as you desire. [!] CAUTION: Potential Shock or Fire Hazard. This unit is not intended for use in wet or potentially wet locations, such as showers, saunas, under or near fishtanks, sinks, etc.
-
Page 10: Contact Information
(pg 9 of 9) *If you are missing any parts, have any questions, or need additional assistance in assembly, please contact our bilingual (English/Spanish) customer service department at: Seville Classics, Inc. 19401 South Harborgate Way Torrance, CA 90501 Telephone: (800) 323-5565 within USA... - Page 11 UltraHD Line Model No. 20158 Model No. 20153 UltraHD Storage Cabinet UltraHD Storage Cabinet Model No. 20150 Model No. 20156 UltraHD Wall Cabinet UltraHD Workbench Model No. 20152 UltraHD Rolling Workbench...
