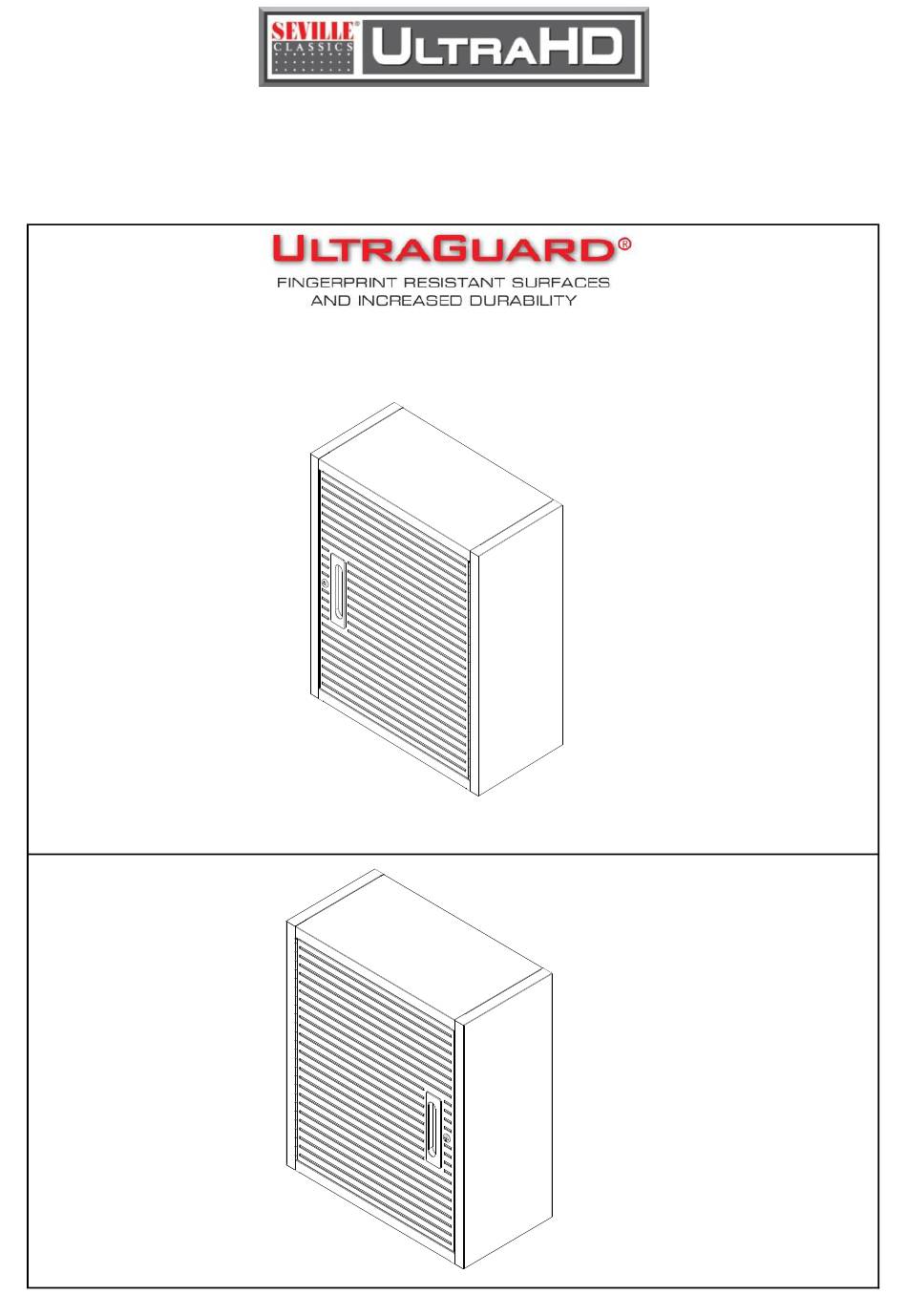

- Page 1 ASSEMBLY INSTRUCTIONS UltraHD® Wall Cabinet (Model No. 20209, 20149) Granite Graphite 24 in. W x 12 in. D x 28 in. H 60.96 cm W x 30.47 cm D x 71.12 cm H Reference page 9 for special care and maintenance of stainless steel SC200820...
- Page 2 For Door Handle on LEFT Side For Door Handle on RIGHT Side...
-
Page 3: Parts List
PARTS LIST Please check the parts carefully according to the parts list. If you are missing any parts, please contact our customer service department (please refer to page 9). (#1) LEFT PANEL x 1 PC (#2) TOP / BOTTOM PANEL (Both panels are same) x 2 PCS (#3) RIGHT PANEL x 1 PC (#4) UPPER BACK PANEL x 1 PC (#5) BOTTOM BACK PANEL x 1 PC... - Page 4 PARTS LIST Please check the parts carefully according to the parts list. If you are missing any parts, please contact our customer service department (please refer to page 9). (#15) SCREW B (M4 x 8L) x 9 PCS (#21-A) SCREW DRIVER x 1 PC (#22) KEY x 2 PCS (#23) MAGNET x 2 PCS (#34) HOOK x 4 PCS...
- Page 5 UltraHD® Wall Cabinet (Model No. 20209) *NOTE: We recommend TWO people to assemble the cabinet. TIP: TIP: A magnetic screwdriver is included for convenience. If using a power screwdriver, keep torque setting LOW. Back Step 1: Install the Right Panel (#3) onto the Top Panel (#2). Attach the Right Panel (#3) to the Top Panel (#2) #21-A as the left picture shows.
- Page 6 UltraHD® Wall Cabinet (Model No. 20209) *NOTE: We recommend TWO people to assemble the cabinet. Step 3: Install the Bottom Back Panel (#5) and Upper Back Panel (#4). First place the Bottom Back Panel (#5) onto the Left Panel (#1), Right Panel (#3) and Bottom Panel (#2) as the left picture shows.
- Page 7 UltraHD® Wall Cabinet (Model No. 20209) *NOTE: We recommend TWO people to assemble the cabinet. Step 6: Install the Door (#7) Attach the Door (#7) to the unit. Line up screw holes and tighten them using Screwdriver (#21-A) and Screw B (#15). Step 7: Complete Assembled Cabinet.
- Page 8 UltraHD® Wall Cabinet (Model No. 20209) *NOTE: We recommend TWO people to assemble the cabinet. Use the Installation Guide on pages 7 and 8 to secure the two Wall-Hanging Brackets (#8) to the wall. Lift the wall cabinet up and hook its tongues (located on the back panels) over the Wall-Hanging Brackets. Assure all tongues hook securely over both Wall-Hanging Brackets.
- Page 9 UltraHD® Wall Cabinet (Model No. 20209) *NOTE: We recommend TWO people to assemble the cabinet. *Drill a small hole (1/4" diameter) at both stud locations to ensure that the hanging anchor is secured. D. To find the rest of the screw holes to fasten the Wall-Hanging Brackets, please refer to the accompanying shop drawing.
- Page 10 UltraHD® Wall Cabinet (Model No. 20209) UltraHD® Wall Cabinet (Model No. 20209) *NOTE: We recommend TWO people to assemble the cabinet. 将 左 Back Panel View of Wall Cabinet shows 6 flat hooks that Close-up view of how the Wall-Hanging Brackets fit with allow the Cabinet to hang on two Wall-Hanging Brackets.
-
Page 11: Contact Information
CONTACT INFORMATION UltraHD® Wall Cabinet (Model No. 20209) bilingual (English and Spanish) customer service department at: Seville Classics, Inc. 19401 Harborgate Way Torrance, CA 90501 USA Telephone: (800) 323-5565 within USA Fax: (310) 533-3899 Hours: 9:00am - 4:30pm (Pacific Standard Time) E-mail: support@sevilleclassics.com... - Page 12 UltraHD® Line UltraHD® 4-Drawer Rolling Cabinet UltraHD® 6-Foot Height Adjustable Workbench Model No. 20205 (Granite) Model No. 20292 (Granite) UltraHD® Wall Cabinet with Open Shelf UltraHD® 2-Door Rolling Workbench Model No. 20230 (Granite) Model No. 20262 (Granite) Model No. 20140 (Graphite) Model No.
