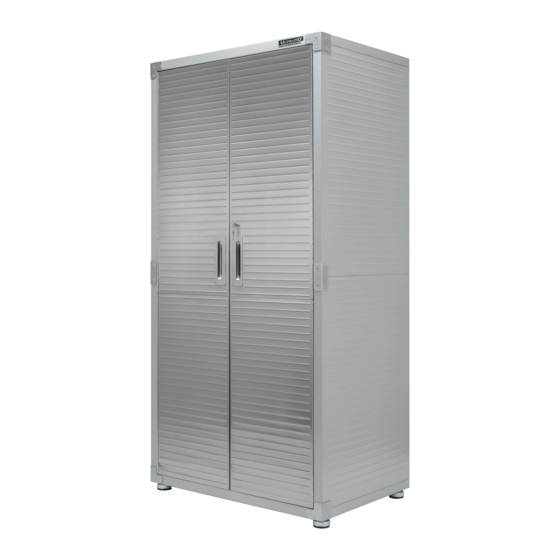

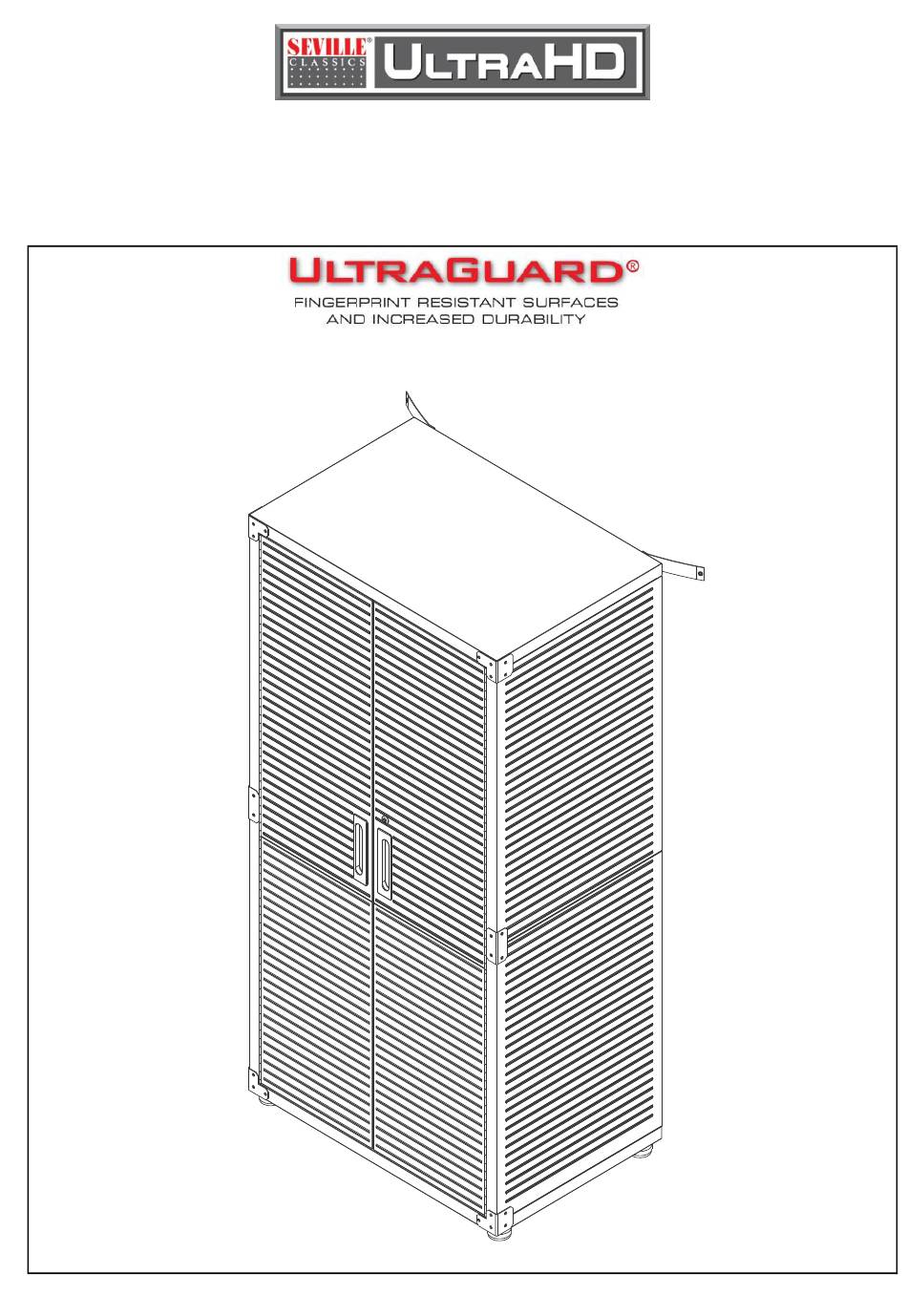

- Page 1 ASSEMBLY INSTRUCTIONS UltraHD® 24" D Tall Storage Cabinet (Model No. 16248) Granite 36 in. W x 24 in. x 72 in. H (91.4 cm x 60.9 cm x 1.83 m) Reference page 12 for special care and maintenance of stainless steel SC201204...
- Page 3 (#1-A) Left Side Panel (#2-A) Right Side Panel (#6-A) Left Door (#7-A) Right Door #6-A1 #7-A1 #7-A3 #6-A3 #6-A2 #6-A3 #7-A2...
-
Page 4: Parts List
PARTS LIST Please check the parts carefully according to the parts list. If you are missing any parts, please contact our customer service department. (Please refer to page 13) (#1-A1) Left Side - Upper Panel x 1 PC (#1-A2) Left Side - Bottom Panel x 1 PC (#1-A3) Side Panel Reinforcement Connection Part x 2 PCS (#2-A1) Right Side - Upper Panel x 1 PC (#2-A2) Right Side - Bottom Panel x 1 PC... - Page 5 PARTS LIST Please check the parts carefully according to the parts list. If you are missing any parts, please contact our customer service department. (Please refer to page 13) (#6-A1) Left Door - Upper Panel x 1 PC (#6-A2) Left Door - Bottom Panel x 1 PC (#6-A3) Door Panel Connection Part x 2 PCS (#7-A1) Right Door - Upper Panel x 1 PC (#7-A2) Right Door - Bottom Panel x 1 PC...
- Page 6 PARTS LIST Please check the parts carefully according to the parts list. If you are missing any parts, please contact our customer service department. (Please refer to page 13) (#10) Bottom Back Panel x 1 PC (#15) Corner Protection - A x 2 PCS (#16) Corner Protection - B x 2 PCS (#17) Middle Corner Protection x 2 PCS (#6) Leveling Feet x 4 PCS...
- Page 7 PARTS LIST Please check the parts carefully according to the parts list. If you are missing any parts, please contact our customer service department. (Please refer to page 13) (#21) Screw Driver x 1 PC (#25) Wrench x 1 PC (#41) Screw F (M4 x 8L) x 96 PCS (#54) Screw N (M4 x 10L) x 2 8 PCS (#52) Screw K (M5 x 10L) x 8 PCS...
- Page 8 PARTS LIST Please check the parts carefully according to the parts list. If you are missing any parts, please contact our customer service department. (Please refer to page 13) (#55-A) Wall Anchor x 2 PCS (#27) WASHER (M4) x 2 PCS M8X20 pcs (#27-B) WASHER (M8)x 2 PCS (#61) Screw O (M4 x 12L) x 2 PCS...
- Page 9 UltraHD® 24"D Tall Storage Cabinet (Model No. 16248) *NOTE: We recommend using TWO people to assemble the cabinet. TIP: A magnetic screwdriver is included for your convenience. If using a power screwdriver, keep toruqe setting on LOW during assembly. This package contains an updated product construction designed for easier transportation while maintaining a rigid structure.
- Page 10 UltraHD® 24"D Tall Storage Cabinet (Model No. 16248) *NOTE: We recommend using TWO people to assemble the cabinet. Step 4: Install (#7-A) Right Door. #6-A3 Repeat Step 3, use (#7-A1) Right Door - Upper Panel, #7-A1 (#7-A2) Right Door - Bottom Panel, (#6-A3) Door Panel Connection Part, use 1pc (#41) Screw F to tighten the touching sides, use 4pcs (#41) Screw F to tighten from the top touching side, and 4pcs (#52) Screw K to tighten...
- Page 11 UltraHD® 24"D Tall Storage Cabinet (Model No. 16248) *NOTE: We recommend using TWO people to assemble the cabinet. Step 8: Install (#8, #9 and #10) Back Panels. 1). Attach (#10) Bottom Back Panel onto both Bottom of Left and Right Side Panels (#1-A2 and #2-A2) and Bottom Panel (#4), line up screw holes, use 11pcs (#41) Screw F to tighten.
- Page 12 UltraHD® 24"D Tall Storage Cabinet (Model No. 16248) *NOTE: We recommend using TWO people to assemble the cabinet. Step 11: Install (#23) Magnet. Place (#23) Magnet onto (#3) Top Panel and (#4) Bottom Panel facing the front, use 4pcs (#41) Screw F to tighten. Step 12: Install (#6-A, #7-A) Left and Right Doors.
- Page 13 UltraHD® 24"D Tall Storage Cabinet (Model No. 16248) *NOTE: We recommend using TWO people to assemble the cabinet. Step 14: Install Mounting Strap (#60) A. Remove 1pc Screw F (#41) from the back panel. B. Attach the Mounting Strap (#60) to the back panel as the left photo shows using Screw O (#61) and Washer (#27).
- Page 14 UltraHD® 24"D Tall Storage Cabinet (Model No. 16248) *NOTE: We recommend using TWO people to assemble the cabinet. Installing Wheels (WEB128)* and Additional Shelves (UHD16248S)** **Sold separately on SevilleClassics.com. Requires 2 pairs. **Sold separately on SevilleClassics.com. Installing Wheels Step 1: Follow the previous instructions to Step 9. DO NOT install Leveling Feet (#6).
-
Page 15: Contact Information
If you are missing any parts, have any questions, or need additional assistance in assembly, please contact our bilingual (English and Spanish) customer service department at: Seville Classics, Inc. 19401 Harborgate Way Torrance, CA 90501 USA Telephone: (800) 323-5565 within USA... - Page 16 UltraHD® Line UltraHD® 4-Drawer Rolling Cabinet UltraHD® 6-Foot Height Adjustable Workbench Model No. 20205 (Granite) Model No. 20292 (Granite) UltraHD® Wall Cabinet with Open Shelf UltraHD® 2-Door Rolling Workbench Model No. 20230 (Granite) Model No. 20262 (Granite) Model No. 20140 (Graphite) Model No.
