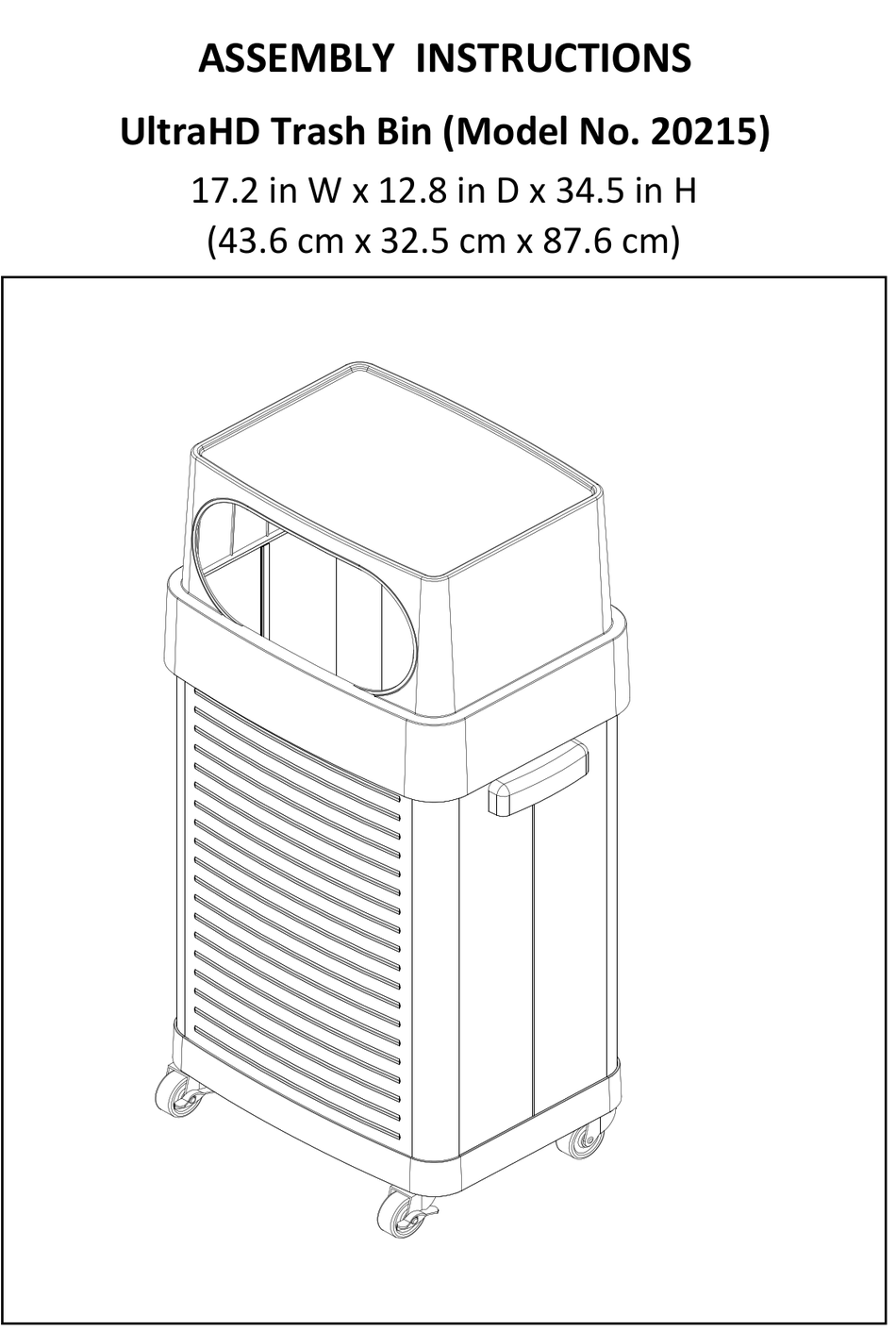

- Page 1 ASSEMBLY INSTRUCTIONS UltraHD Trash Bin (Model No. 20215) 17.2 in W x 12.8 in D x 34.5 in H (43.6 cm x 32.5 cm x 87.6 cm)
- Page 2 (pg 1 of 4) #13-C #12-C #13-C #12-C...
- Page 3 PARTS LIST (pg 2 of 4) Please check the parts carefully according to the parts list. If you are missing any parts, please call our customer service department (please refer to page 4 of 4). (#1) BODY x 1 PC (#2) TOP x 1 PC (#3) HANDLE x 2 PCS (#12‐C) SWIVEL WHEEL WITH BRAKE x 2 PCS (#13‐E) LEVELING FEET x 4 PCS (#13‐C) SWIVEL WHEEL W/O BRAKE x 2PCS (#43) SCREW H (M4 x 15L) x 8 PCS (#25‐B) WRENCH x 1 PC...
- Page 4 ASSEMBLY INSTRUCTIONS (pg 3 of 4) UltraHD Trash Bin (Model No. 20215) Step 1: Install (#12‐C& #13‐C) Swivel Wheels or (#13‐E) #12-C Leveling Feet. #12-C #13-C #25-B Open the box and turn the (#1) Body upside down. #13-C If using (#12‐C & #13‐C) Swivel Wheels: Install (#12‐C) Swivel Wheel with Brake and (#13‐C) Swivel Wheel without Brake onto the bottom panel of the (#1) Body. Use (#25‐B) Wrench to screw‐in the (#12‐C & #13‐C) Swivel Wheels completely. If using (#13‐E) Leveling Feet: Install (#13‐E) Leveling Feet onto the bottom panel of the (#1) Body. Install (#3) Handle. Step 2: Turn (#1) Body upright after you install the wheels or leveling feet. Attach the (#3) Handles to the side of the (#1) Body. Line up the screw holes and use (#43) Screw H (M4x15L) to tighten. Step 3: Placing (#2) Top. Put a plastic bag (not included) inside the (#1) Body, then place the (#2) Top onto the (#1) Body. Note: 1. No plastic bag included for the Trash Bin. 2. Use either wheels or leveling feet. DO NOT install both. Volume Capacity: 65 L / 17 gal...
- Page 5 (pg 4 of 4) *If you are missing any parts, have any questions, or need additional assistance in assembly, please contact our bilingual (English and Spanish) customer service department at: Seville Classics, Inc. 19401 South Harborgate Way Torrance, CA 90501 Telephone: (800) 323‐5565 within USA Hours: 9:00am ‐ 4:30pm (Pacific Standard Time) Fax: (310) 533‐3899 E‐mail: support@sevilleclassics.com Website & Online Store: www.sevilleclassics.com *Please visit our website or call and inquire about our additional UltraHD Line* REV. 110124...
