Summary of Contents for Astralpool RPT Plus

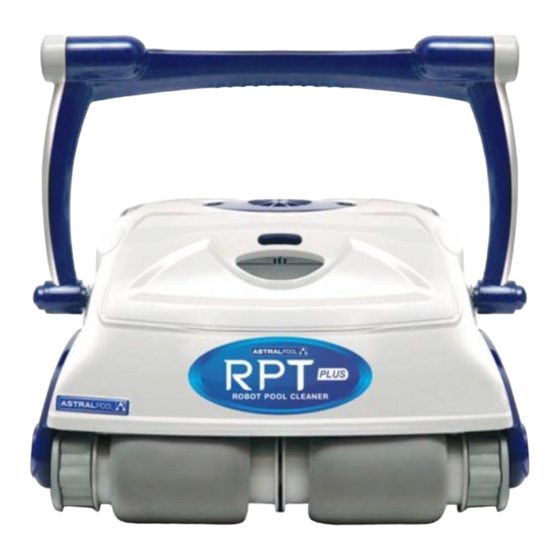

- Page 1 RPT Plus Robotic Pool Cleaner Installation and Operating Instructions Rainbow Pool Products ® PO Box 2388, Mansfield Qld 4122 Telephone STD 61-7-3849 5385 Facsimile STD 61-7-3849 5384 Email: info@rainbowpoolproducts.com.au Web: www.rainbowpoolproducts.com.au Product 11702...
- Page 2 Quick Start Guide 3 .6 m Chlorine Temp 2-5 ppm 7.2-7.6 13°C-35°C SWIM 12 cm...
-
Page 3: Table Of Contents
Contents IMPORTANT SAFETY INSTRUCTIONS Quick Start Guide READ AND FOLLOW ALL THE INSTRUCTIONS Safety Introduction CAUTION: Do not plug the power supply into a grounded outlet or do not switch the System Overview pool cleaner “ON” if it is not fully immersed in water. Operating the cleaner out of water will cause severe damage immediately and will result in loss of warranty. -
Page 4: Introduction
Introduction Components System Overview The robotic cleaner sweeps the pool floor and walls to collect dirt and debris into its internal filters. This user manual explains how to operate the robotic cleaner, including cleaning, maintenance and storage procedures. Note: This manual reviews several robotic cleaner models. There are some variations in components according to specific model. -
Page 5: Power And Control Unit
Components Operation Power and Control Unit The power and control unit is connected to the robotic cleaner via the floating cable. The unit is powered by AC power (1) and supplies low voltage and commands to the cleaner unit through the outlet socket (2). -
Page 6: Placing Cleaner Unit Into The Water
Operation Placing the Power and Control Unit 4. Place the power and control unit at least 3.6 meters/11.8 feet from the pool and at least 12 cm/4 inches above the surface. 3. 6m CAUTION: The power and control unit must not be exposed to Chlorine Temp water or to direct sunlight. -
Page 7: Starting The Robotic Cleaner
Operation Starting the Robotic Cleaner Connect the power and control unit to the wall socket (1). The Operation LED is lit (4) and the robotic cleaner starts its cleaning program. If the power and control unit is already connected to the AC socket, the Operation LED flashes (5) to indicate that the robotic cleaner is in standby mode. -
Page 8: Maintenance
Maintenance CLEAN THE FILTER BAG AFTER EVERY CLEANING CYCLE d. Remove the filter bag from the support bars, turn it inside out and wash off all the dirt with a a. Unplug the power supply. (Please keep the plug away from contact with garden hose or in a sink. -
Page 9: Model 400 - Aquacontrol Super Remote
Model 400 - Aquacontrol Super Remote PROGRAM HIGH PROGRAM PROGRAM NORMAL... - Page 10 Troubleshooting 1. CLEANER DOES NOT TURN ON. 4. CLEANER STARTS AND SHUTS OFF AFTER A SHORT TIME. There is no electricity in the wall socket. Filter is dirty. a) Disconnect cleaner from the power and control unit. a) Remove the filter. b) Disconnect power supply from the wall socket, wait 30 seconds and b) Run the robotic cleaner without the filters.
-
Page 11: Remote Control
Troubleshooting 7. CLEANER UNIT DOES NOT COVER THE ENTIRE POOL. Propeller is broken or seized due to accumulation of hair. Filter is dirty. Check if the propeller is broken or needs cleaning (see “Checking Water Clean the filter. Outlet Propeller”). There is not enough length of the floating cable in the water to reach pH level is incorrect. - Page 12 Operating the Wireless Remote Control Wireless Remote Control - R/C Model NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
- Page 13 Operating the Wireless Remote Control To match the Remote Control Unit to the Power Supply: Disconnect the Robot's cable from the power supply. Turn the power supply ON then simultaneously hold down the Right and Left buttons on the Remote Control. The red LED on the remote will illuminate for 1 second and the Change Filter LED on the power supply will blink signifying that the...
- Page 14 Operating the Wireless Remote Control...
- Page 15 Trolley Assembly Diagram Parts The trolly is an optional accessory that makes it easy to move the robotic cleaner and provides a mounting site for the power and control unit. To assemble the trolly: 1. Attach the wheels to both sides of the trolly base and fasten each wheel with the screw and install the cover.
- Page 16 Trolley 4. Insert the handle into the trolly base. Click the lower tabs of the power and control unit housing into the trolly base. 5. Attach the remote control holder by inserting the upper part into the trolly handle and turning the holder downward until the lower part clicks.
- Page 17 Operating the Pool Cleaner...
-
Page 18: Warranty Terms And Conditions
Your Astralpool Robotic Pool Cleaner is covered by a limited 2 year warranty against defect in material and assembly. Parts... - Page 19 Product is installed for inspection and testing. 4. If such inspection and testing finds no defect in the Product, the customer must pay AstralPool's usual costs of service work and testing. If such inspection and testing finds a defect that is not covered by this warranty, the customer must pay AstralPool's usual costs of service work plus any parts and labour required to repair the Product, unless recoverable from AstralPool on the failure of any statutory guarantee under the ACL.
-
Page 20: Exclusions And Limitations
LIMITATIONS AstralPool makes no express warranties or representations other than set out in this warranty. The repair or replacement of the Product or part of the Product is the absolute limit of AstralPool's liability under this express warranty. Rainbow Pool Products ®...
