INSTALLATION MANUAL
FOR YOUR SAFETY - This product must be installed and serviced by a trained Swimming Pool Technician in
accordance with the latest applicable version of AS/NZS 3000, along with any other applicable local and national
installation codes/standards", and any other local applicable regulations. Before installing this product, read and
follow all warning notices and instructions that accompany this product. Failure to follow warning notices and
instructions may result in property damage, personal injury, or death. Improper installation and/or operation
will void the warranty.
Improper installation and/or operation can create unwanted electrical hazard which can cause serious injury,
property damage, or death.

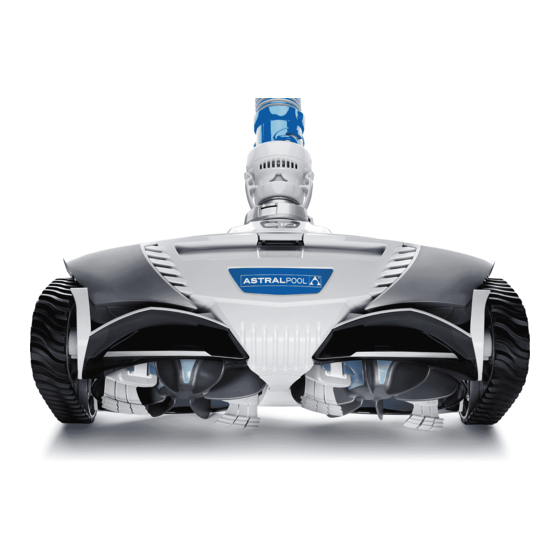

S10
Pool Cleaner
WARNING
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Astralpool S10
Summary of Contents for Astralpool S10
- Page 1 INSTALLATION MANUAL Pool Cleaner WARNING FOR YOUR SAFETY - This product must be installed and serviced by a trained Swimming Pool Technician in accordance with the latest applicable version of AS/NZS 3000, along with any other applicable local and national installation codes/standards”, and any other local applicable regulations.
- Page 2 AstralPool Group Australia Pty Ltd (AstralPool) will not be responsible for liner damage caused by a cleaner which is in disrepair, pattern removal from a vinyl liner, or a cleaner used in a pool having an aged or deteriorated liner. Please see Limited Warranty.
- Page 3 Installation Manual Introduction Congratulations on the purchase of your new AstralPool S10 automatic pool cleaner. Your AstralPool S10 is designed and manufactured for easy installation. Before installing the cleaner, please take a few moments to become familiar with its components and to review the items listed under Important Information.
-
Page 4: Installation
If return inlet directional fittings can’t be directed far enough down to prevent water flow affecting the natural movement of the AstralPool hose, you will need to install AstralPool return line diverters. These are available from your local AstralPool dealer. -
Page 5: Ad Flow Valve
Installation Manual 2. AD Flow Valve The AD Flow valve works by regulating the flow through the pool cleaner to the pump. As the filter collects debris, the valve will automatically maintain the correct flow. The installation of the AD Flow valve will depend upon the type of skimmer box and Vac plate you have. - Page 6 (23cm from Cleaner Head) 4. Connecting Cleaner head to Flow Regulator Valve 1. Remove orange sticker off leader hose 2. Attach the Flow Regulator Valve to the leader hose (a) and connect AstralPool S10 cleaner head to the Flow Regulator Valve (b).
-
Page 7: Check Cleaner Flow
Installation Manual 5. Re-connecting to Skimmer Box 1. Temporarily disconnect hose from skimmer, turn on pool filter pump 2. Flood the hose with water, turn off pool filter pump, reconnect hose to skimmer box, then turn pool filter pump back on. -
Page 8: Care And Maintenance
The climbing ability of the cleaner is dependent on the pool’s shape and available water flow. If AstralPool S10 is not climbing your walls, ensure the flow is correct by counting wheel speed. Also, ensure the pools surface is not covered in algae as this slippery surface will affect the cleaner’s traction. - Page 9 If you are experiencing high levels of larger debris that clog the throat of the cleaner simply remove the inlet throat adaptor to enhance the size of the AstralPool S10 throat inlet, thus allowing larger debris to be picked up by the cleaner.
- Page 10 Installation Manual Everyday Storing Never store the cleaner in direct sunlight. Always remove the hose from the cleaner head. Do not coil the hose, even for short time. Hose may develop a memory which can affect cleaner performance. Store the cleaner on its side or...
-
Page 11: Troubleshooting
Installation Manual Troubleshooting If you experience a problem with your AstralPool S10, please follow the troubleshooting steps below to restore performance. If further assistance is required, contact AstralPool Consumer Care at 1300 186 875. Please have your serial number and date of purchase available when you call. - Page 12 For full warranty terms and conditions and to register your warranty, simply visit www.astralpool.com.au/warranty and complete your details. Or scan the QR code and be taken directly to the registration page. Record your equipment details here for quick reference: Model No.: ________________________________ Serial No.:...
