OWNER'S MANUAL
FOR YOUR SAFETY - For anything other than the routine cleaning and maintenance described in this manual,
this product must be serviced by a pool technician who is licensed and qualified in pool equipment by the
jurisdiction in which the product will be installed where such state or local requirements exist. In the event no
such state or local requirement exists, the maintainer must be a professional with sufficient experience in pool
equipment installation and maintenance so that all of the instructions in this manual can be followed exactly.
Improper installation and/or operation may void the warranty.

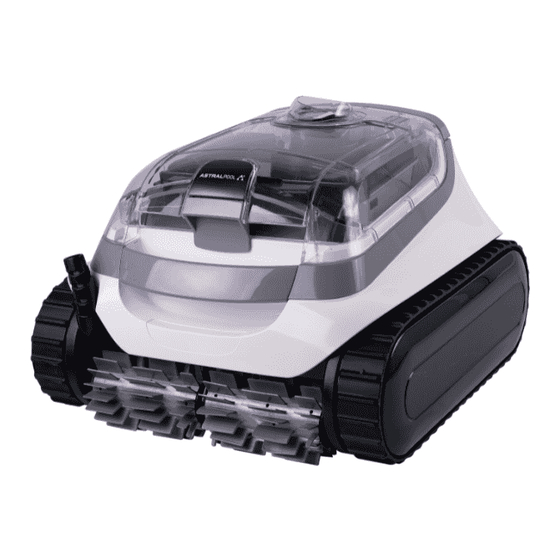

QB600 / QB800
robotic pool cleaner
WARNING
TYPE EN15-
-
Advertisement
Table of Contents
Related Manuals for Astralpool QB600
Summary of Contents for Astralpool QB600
- Page 1 OWNER’S MANUAL QB600 / QB800 robotic pool cleaner TYPE EN15- WARNING FOR YOUR SAFETY - For anything other than the routine cleaning and maintenance described in this manual, this product must be serviced by a pool technician who is licensed and qualified in pool equipment by the jurisdiction in which the product will be installed where such state or local requirements exist.
- Page 2 QB robotic cleaner Owner’s Manual...
-
Page 3: Table Of Contents
QB robotic cleaner Owner’s Manual Table of Contents Section 1. Important Safety Instructions ..4 Section 5. Storage & Maintenance ..... 11 Cord Tangling ................. 11 Section 2. Cleaner Specifications ....5 Clean the Filter Canister ............12 Store the Cleaner When Not in Use ........ 13 Section 3. -
Page 4: Section 1. Important Safety Instructions
• To reduce the risk of electrical shock, do not use the robotic cleaner or control unit if the cord is worn or damaged. Contact AstralPool Consumer Care 1300 186 875 for Australia or 0800 807 665 for New Zealand immediately for proper servicing and replacement of the damaged cord. -
Page 5: Section 2. Cleaner Specifications
Ink from the pattern can also rub off during the installation process or when it comes into contact with objects in the pool. AstralPool Group Ltd is not responsible for, and the Limited Warranty does not cover, pattern removal, abrasion or markings on vinyl liners. -
Page 6: Assemble The Transport Caddy
QB robotic cleaner Owner’s Manual Section 3. Trolley Assembly (QB800) Assemble the Transport Caddy Unscrew the handnut from the base. Contents The packaging should contain the following items: • Cleaner and floating cable with swivel • Control unit • Manual, Quick Start Guide, and Warranty Card •... -
Page 7: Attach The Control Unit To The Caddy
QB robotic cleaner Owner’s Manual Align cleaner hook pins with the top holes in the handle tube and snap into place. Figure 4. Twist Handnut to Secure Frame Snap two (2) support blocks into place. Slide axle and hubcap piece through center of wheel and attach to base unit. -
Page 8: Connect To A Power Source
QB robotic cleaner Owner’s Manual Press control unit onto the caddy hook until it snaps Unscrew the protective cap for the floating cable and locks into position. from the side of the control unit by turning counter- clockwise. Grip the notched end of the floating power cable, insert into the control unit, and turn clockwise to tighten. -
Page 9: Install And Submerge The Cleaner
Cleaner the cleaner in reverse and back into the pool when the Recommended impeller is out of the water. entry point AstralPool recommends not exceeding 3 cleaning WARNING: Do not use cycles per week. an extension cord Floating Cable Install and Submerge the Cleaner Length Figure 13. -
Page 10: Start/Stop Cleaning
QB robotic cleaner Owner’s Manual MODE Elevate System Button Functions The Elevate System is designed to assist in retrieving the robot from the pool. The Elevate System can be Start/Stop cleaning activated at any time during or after a cleaning cycle MODE and the current cycle will be canceled.. -
Page 11: Clean The Filter Canister
QB robotic cleaner Owner’s Manual Remove the cleaner from the pool and untangle all kinks and coils in the power cable. Start at the cleaner head. Lay the cable in the sun to loosen any tangling Recommended memory. Cleaner Caddy / Control Unit Cleaner Recommended... -
Page 12: Store The Cleaner When Not In Use
QB robotic cleaner Owner’s Manual NOTE: Periodically, remove the filter canister and clean thoroughly with soapy water and a soft bristle brush. Store the Cleaner When Not in Use The cleaner must be cleaned regularly using slightly soapy clean water. Do not use solvents such as trichlorethylene or its equivalent. - Page 13 QB robotic cleaner Owner’s Manual Raised groove becomes partially flattened, indicating excessive wear Figure 26. Install the New Brush Figure 23. Worn Brush Indicator Thread each tab into the slot provided and gently feed To maintain cleaner performance at its best you need it through until the heel comes out at the other side of to replace the brushes as soon as one of the wear the slot.
-
Page 14: Section 6. Troubleshooting
Propeller or wheels may be Contact your local retailer to request a diagnostic review. If jammed and not turning correctly. the problem is not resolved, contact AstralPool Consumer Care 1300 186 875 for Australia or 0800 807 665 for| New Zealand. -
Page 15: Section 7. Conformity
The manufacturer reserves the right to modify these specifications without notice. Although the cleaning robots have been tested in a large variety of swimming pools, AstralPool cannot be held responsible in the case of a non- perfect adaptation of the robot to a particular swimming pool. - Page 16 Scan for New Zealand Fluidra Group Australia Pty Ltd Po Box, Wetherill Park NSW 2164 ABN: 87 002 641 965 Customer Care Hotline: 1300 186 875 www.astralpool.com.au Fluidra NZ Ltd 12 Douglas Alexander Parade Rosedale Auckland 0632 NZBN: 942 903 181 70759 Customer Care Hotline: 0800 807 665 www.astralpool.co.nz...
