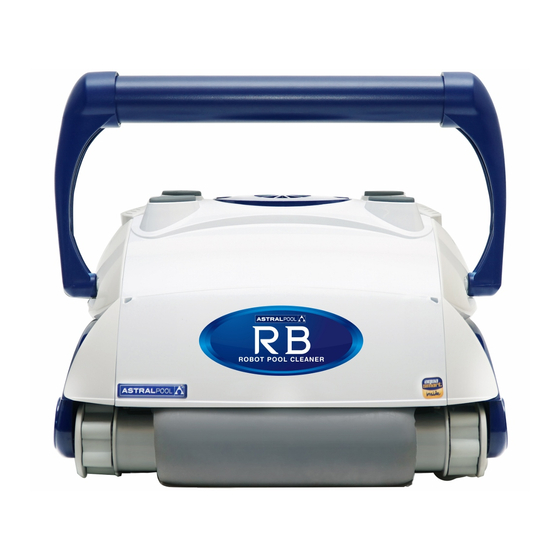

RB Robotic Pool Cleaner
Installation and Operating Instructions
Product 11712
Product Inst 320

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RB Robotic and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Astralpool RB Robotic

  • Page 1 RB Robotic Pool Cleaner Installation and Operating Instructions Product 11712 Product Inst 320...
  • Page 2: Important Safety Instructions

    Dear Customer, IMPORTANT SAFETY INSTRUCTIONS Thank you for choosing our product to clean your pool. We hope that you will enjoy using your new robot to maintain your swimming pool for years to come. READ AND FOLLOW ALL THE INSTRUCTIONS Before you begin to use your robot, please take a few minutes to carefully read these operating instructions.
  • Page 3 Operating the pool cleaner 1. Place the power supply (transformer) at least 3.6 meters / 11.8 feet from the pool and at 4. Place the unit in the water. Turn the unit least 12 cm / 4 Inch above the surface (fig.1). The transformer will supply low voltage to side to side in the water to allow air to the cleaner.
  • Page 4 Operating the pool cleaner Grounding Plugs Type I The power supply must be connected to a grounded 3 conductor socket. The mains power supply To plug the cable (Fig A) into the socket on the power supply (Fig. B), please do the must be connected via a GFCI (ground fault circuit interrupter) or RCD (residual current device) following: having a rated residual operating current not greater than 30mA.
  • Page 5: Maintenance And Adjustment

    Operating the pool cleaner a. Power LED The blue LED flashes when the power supply is in standby mode and lights continuously when the pool cleaner is operating.The power button switches between ON and STANDBY b. "POWER" button The button switches between "ON" and "STANDBY". IMPORTANT- After every cycle the pool cleaner will automatically go to "standby".
  • Page 6 Maintenance and adjustment CLEAN THE FILTER BAG AFTER EVERY CLEANING CYCLE a. Unplug the power supply. (Please keep the plug away from contact with water) b. If the unit is in the pool, gently pull the cleaner toward you using the cable until the handle is within reach. Use the handle (not the cable) to pull the cleaner out of the pool smooth smooth...
  • Page 7: Important Tips

    Maintenance and adjustment Screws Filter bag 30°C / 85°F outlet top propeller label (continued from the previous page) d. Remove the filter bag from the support bars, turn it inside out and wash off all the dirt Cleaning the pump propeller: with a garden hose or in a sink.
  • Page 8: Troubleshooting Guide

    Troubleshooting Guide PLEASE CHECK THE FOLLOWING BEFORE CALLING YOUR SERVICE CENTER Before troubleshooting, the pool cleaner must be disconnected from the power supply and the power supply must be unplugged from the electrical outlet to prevent damage to the unit and possible personal injury. For reference numbers, consult the parts list diagram located on the last page of the instructions.
  • Page 10: Warranty Terms And Conditions

    Your Astralpool Robotic Pool Cleaner is covered by a limited 3 year warranty against defect in material and assembly. Parts...
  • Page 11: Warranty Claims

    Product is installed for inspection and testing. 4. If such inspection and testing finds no defect in the Product, the customer must pay AstralPool's usual costs of service work and testing. If such inspection and testing finds a defect that is not covered by this warranty, the customer must pay AstralPool's usual costs of service work plus any parts and labour required to repair the Product, unless recoverable from AstralPool on the failure of any statutory guarantee under the ACL.
  • Page 12: Exclusions And Limitations

    Normal wear and tear of consumable parts such as rollers, pulleys, drive belts and filter cartridge/bag LIMITATIONS AstralPool makes no express warranties or representations other than set out in this warranty. The repair or replacement of the Product or part of the Product is the absolute limit of AstralPool's liability under this express warranty.
  • Page 13 1/27 Millenium Place 97 Sheffield Road 1/28 Export Drive Mile End South SA 5031 Tingalpa QLD 4173 Welshpool WA 6106 Molendinar QLD 4214 P: 08 8152 7600 P: 07 3308 5400 P: 08 9350 2600 P: 07 5552 2600 sales@astralpool.com.au www.astralpool.com.au...
