Summary of Contents for Astralpool RF

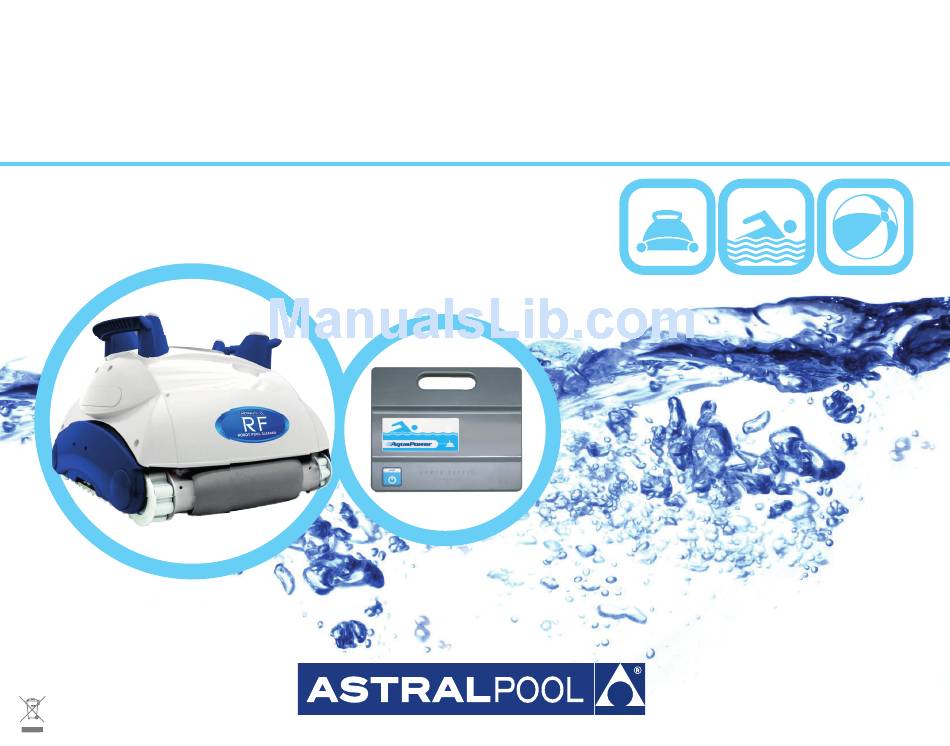

- Page 1 RF Robotic Pool Cleaner Installation and Operating Instructions Product 11716...
- Page 2 Quick Start Guide 3 .6 m Chlorine Temp 2-5 ppm 7.2-7.6 13°C-35°C SWIM 12 cm...
- Page 3 Float Installation...
-
Page 4: Table Of Contents
Contents IMPORTANT SAFETY INSTRUCTIONS Quick Start Guide READ AND FOLLOW ALL THE INSTRUCTIONS Safety Introduction CAUTION: Do not plug the power supply into a grounded outlet or do not switch the System Overview pool cleaner “ON” if it is not fully immersed in water. Operating the cleaner out of water will cause severe damage immediately and will result in loss of warranty. -
Page 5: Introduction
Introduction Components System Overview The robotic cleaner sweeps the pool floor and walls to collect dirt and debris into its internal filters. This user manual explains how to operate the robotic cleaner, including cleaning, maintenance and storage procedures. Note: This manual reviews several robotic cleaner models. There are some variations in components according to specific model. -
Page 6: Power And Control Unit
Components Operation Power and Control Unit The power and control unit is connected to the robotic cleaner via the floating cable. The unit is powered by AC power (1) and supplies low voltage and commands to the cleaner unit through the outlet socket (2). -
Page 7: Placing Cleaner Unit Into The Water
Operation Placing the Power and Control Unit 4. Place the power and control unit at least 3.6 meters/11.8 feet from the pool and at least 12 cm/4 inches above the surface. 3. 6m CAUTION: The power and control unit must not be exposed to Chlorine Temp water or to direct sunlight. -
Page 8: Starting The Robotic Cleaner
Operation Starting the Robotic Cleaner Connect the power and control unit to the wall socket (1). The Operation LED is lit (4) and the robotic cleaner starts its cleaning program. If the power and control unit is already connected to the AC socket, the Operation LED flashes (5) to indicate that the robotic cleaner is in standby mode. -
Page 9: Maintenance
Maintenance CLEAN THE FILTER BAG AFTER EVERY CLEANING CYCLE d. Remove the filter bag from the support bars, turn it inside out and wash off all the dirt with a a. Unplug the power supply. (Please keep the plug away from contact with garden hose or in a sink. -
Page 10: Troubleshooting
Troubleshooting 1. CLEANER DOES NOT TURN ON. 4. CLEANER STARTS AND SHUTS OFF AFTER A SHORT TIME. There is no electricity in the wall socket. Filter is dirty. a) Disconnect cleaner from the power and control unit. a) Remove the filter. b) Disconnect power supply from the wall socket, wait 30 seconds and b) Run the robotic cleaner without the filters. - Page 11 Troubleshooting 7. CLEANER UNIT DOES NOT COVER THE ENTIRE POOL. 8. THE CABLE IS TANGLED. Filter is dirty. Filter is dirty. Clean the filter. Clean the filter. There is not enough length of the floating cable in the water to reach Bottom lid is not properly closed.
- Page 12 Operating the Pool Cleaner...
-
Page 13: Warranty Terms And Conditions
Warranty Terms and Conditions Astral Pool Australia Pty Ltd (ABN 97 007 284 504) ("Astral Pool") provides the following warranty in relation to its Robotic Pool Cleaners. Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. - Page 14 Warranty Terms and Conditions 1.If a fault covered by warranty occurs, the customer must first contact AstralPool at the contact address listed below, or an Authorised AstralPool Service Agent. 2. Any warranty claim must be accompanied by: (a) proof of purchase; (b) full details of the alleged defect;...
-
Page 15: Exclusions And Limitations
Exclusions and Limitations EXCLUSIONS The warranty will not apply where: the customer is in breach of the Terms and Conditions of Sale; the Product was used for a purpose other than one it was intended for; the Product was repaired, modified or altered by any person other than AstralPool; the Product has not been installed, maintained and/or operated in complete compliance with the installation and operating instructions and any instructions by AstralPool;... - Page 16 Melbourne Townsville Sydney Seven Hills Sydney Moorebank 39-45 Cyber Loop 17 Auscan Crescent 2/2 Welder Road 6/30 Heathcote Road Dandenong VIC 3175 Garbutt QLD 4814 Seven Hills NSW 2147 Moorebank NSW 2170 melbourne@astralpool.com.au townsville@astralpool.com.au sydney@astralpool.com.au moorebank@astralpool.com.au Adelaide Brisbane Perth Gold Coast 20 Marlow Road 12 Breene Place 17 Tacoma Circuit...
