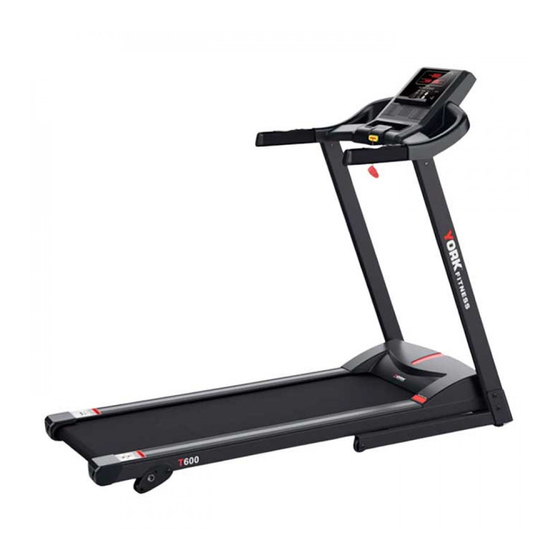

- Page 1 Owner’s Manual T600 Treadmill Item #51156 www.yorkfitness.com.au...
-
Page 2: Table Of Contents
Table of contents Congratulations on CONTENTS purchasing your exercise equipment from Safety information Customer support Exploded Drawing Parts List You have chosen a high quality, safe and innovative piece of equipment as your training partner and we are certain it will keep you motivated on the way to Hardware Comparison achieving your personal fitness goals. -
Page 3: Safety Information
Use only the adjustment setting as described in the • Due to our continuous policy of product development, instructions. Always use the correct adjustment York Fitness reserves the right to change pin / fixing. specifications without notice. • Always check that any pins / fixings are tight and secure before use and after adjustment. -
Page 4: Customer Support
• Precise description of the issue / defect Serial Number: 51156- IMPORTANT - Please retain your sales receipt, York Fitness Customer Care may request proof of purchase to validate eligibility for warranty service. Warranty cover starts from the date shown on the proof of purchase. - Page 5 Exploding drawing www.yorkfitness.com.au...
-
Page 6: Parts List
Parts List Description Description 0061EB Console cover Line end 0061EB Panel 0061EB controller iPpad holder Magnetic ring Safety key frame Plastic pad Safety key Power cord（Red） Safety key stator Power cord（Black） Communication wire Power cord（L=100） Upright post（0061EB-03） Protect ring Speed handle pulse set Foam Hex socket full tooth boltM8×35 Tube plug... -
Page 7: Assembly Instructions
Assembly Instructions Console Safety key Handle bar Upright post Motor cover Running belt Side rail Rear cover www.yorkfitness.com.au... - Page 8 Packing List Main frame Console Manual Upright posts Manual Silicon oil bottle Safety key Hardware kit www.yorkfitness.com.au...
- Page 9 Hardware List Hex full tooth bolt（M8*15）2 PCS Hex half tooth bolt（M8*35*20）4 PCS Cross open spanner (14×17×75) 1PCS T-shape wrench 1PCS Cross groove self-tapping Cross groove self-tapping screw ST4×16 4PCS screws ST4×30 2PCS www.yorkfitness.com.au...
- Page 10 Assembly Instructions Step 1 Take out the machine from the carton and place it on the flat floor (see Figure 1), remove all the PE bags and packing belts wrapped on the machine. First, connect the communication wires in upright post(R) with the communication wires on base frame M8*10 Hex full tooth bolt M8*35*20 Hex half tooth bolt...
- Page 11 Step 2 First, connect the communication wires in upright post(R) with the communication wires on base frame. Then insert the upright posts into the clamp rings on both sides of the main frame Match with screw holes. Please be careful not to break the communication wire in the upright posts. Use 4 M8*35*20 hex half tooth bolts and 2 M8*10 hex full tooth bolts to lock both upright posts with the clamp rings on both sides of the main frame (please align the upright posts to prevent from deviating).
- Page 12 tube. Use ST4*16 bolts to fasten the console frame through handle bar tube, do it on the both sides of upright posts. Then use ST4*30 bolts to fasten the console frame through handle bar tube. Finally, check whether all the bolts are fastened and install the safety key to finish the installation. Exercising advice and guidelines (1) Warm up –...
- Page 13 knees facing out. Grab your feet with both hands and pull toward your groin. Hold for 10 to 15 seconds, then relax. Repeat 3 times (see figure 5) Console Function/Treadmill Instruction Instructions of console panel LED display Holes for iPad holder STOP MODE START / PAUSE...
- Page 14 2. Display window instruction "DISTANCE" window: displays the value of the distance "CALORIES" window: displays the value of calorie "TIME" window: displays the value of time "PULSE" window: displays the value of heart rate "SPEED" window: displays the value of speed. 3.
- Page 15 6 . User mode User mode includes three user settings, USER1 to USER3, in user mode, user can obtain or set up their own exercise program, press "PROG" to enter "USER1 to USER3", then press the "MODE" button to set up your exercise or press the "START"...
- Page 16 in the running state, press "+" and "-" buttons to adjust the speed of the treadmill; In p1-p36, the speed of each program is divided into 10 segments, and the set time is divided into each segment. Increasing speed will only valid in the current segment, and three prompt sounds will be made three seconds in advance when the program is converted from one segment to another segment.
- Page 17 9. English system BMI (b-i) test method: press "PROG" to select the program BMI (b-i), press "MODE" to select the project number, then press "+" or "-" to set parameters. (1) Program number F1 (Sex) : represents gender; setting range: 1-2, "1" means male, "2" means female, default value is 1;...
- Page 18 P r o g r a m P 1 - P 3 6 m e t r i c s p e e d t a b l e Segment Program Speed Speed Speed Speed Speed Speed Speed Speed Speed Speed Speed Speed...
- Page 19 C o m m o n f a u l t s a n d s o l u t i o n s Problem Reason Solution and code The power is not connected or Plug in or switch the power to the "ON" position turned on safety key is not placed in the Replace the safety key...
- Page 20 The induction wire is not Check and reconnect the wire correctly or change it Pulse connected correctly or broken cannot be detected Console line fault Change the console Screw too loose Tighten the screw Console display System defective Change the console incomplete Treadmill folding and moving Folding...
-
Page 21: Maintenance
Picture 3 This product is used on 220-240V circuit and is equipped with a grounded socket as shown in the following picture. Do not use an adapter or extension cord. Note: When the safety key is pulled out, the treadmill will stop immediately. And the console will be disabled, the window shows “__”. - Page 22 Lubrication The treadmill is lubricated during the production. However, after the running belt is used for a certain time, it must be lubricated with special silicone oil. Suggestion Use less than 3 hours per week lubrication once every 5 months Use less than 4-7 hours per week lubrication once every 2 months...
- Page 23 ●After each training: Wipe the console and other surfaces with a clean soft and damp cloth to remove sweat residues. Caution: Do not use any abrasives or solvents. To avoid damage to the computer, keep any liquids away. Do not expose the computer to direct sunlight. ●Weekly: To make the cleaning easier it is recommended to use a mat for the treadmill.
- Page 24 Running belt deviation is not covered in the warranty, and is mainly maintained by users according to the instructions. Running deviation can seriously damage the running belt. It must be found and corrected in time. Adjustment of the motor belt All the motor belts will be adjust before and after assembly.
-
Page 25: Warranty
WARRANTY, SAFETY AND ASSEMBLY INFORMATION YRK51156 - York T600 Treadmill IMPORTANT Please read and retain this manual as it will assist with identification for parts and service. ------------------------------------------------------------------------------------------------------------------------------ BOYLES FITNESS warrants their treadmill to be free from defects in material and workmanship under normal use and service conditions. - Page 26 BFE Warranty Policy – November 1 2013 1. When purchased from an authorized BFE distributor the BFE warranty shall guarantee that all framework and components of your product are free from faulty manufacture. All faulty framework and components will be repaired or replaced as set out in this policy.
- Page 27 Freight Costs: The cost of freighting the replacement part under warranty to the customer shall be free of charge. Your requirement is to return the faulty part via post to the return address. Returned Goods: The unauthorized return of parts or product shall be refused and placed in the hands of the carrier at the cost of the shipper. Return authorizations can be obtained from BFE head officeonly.
