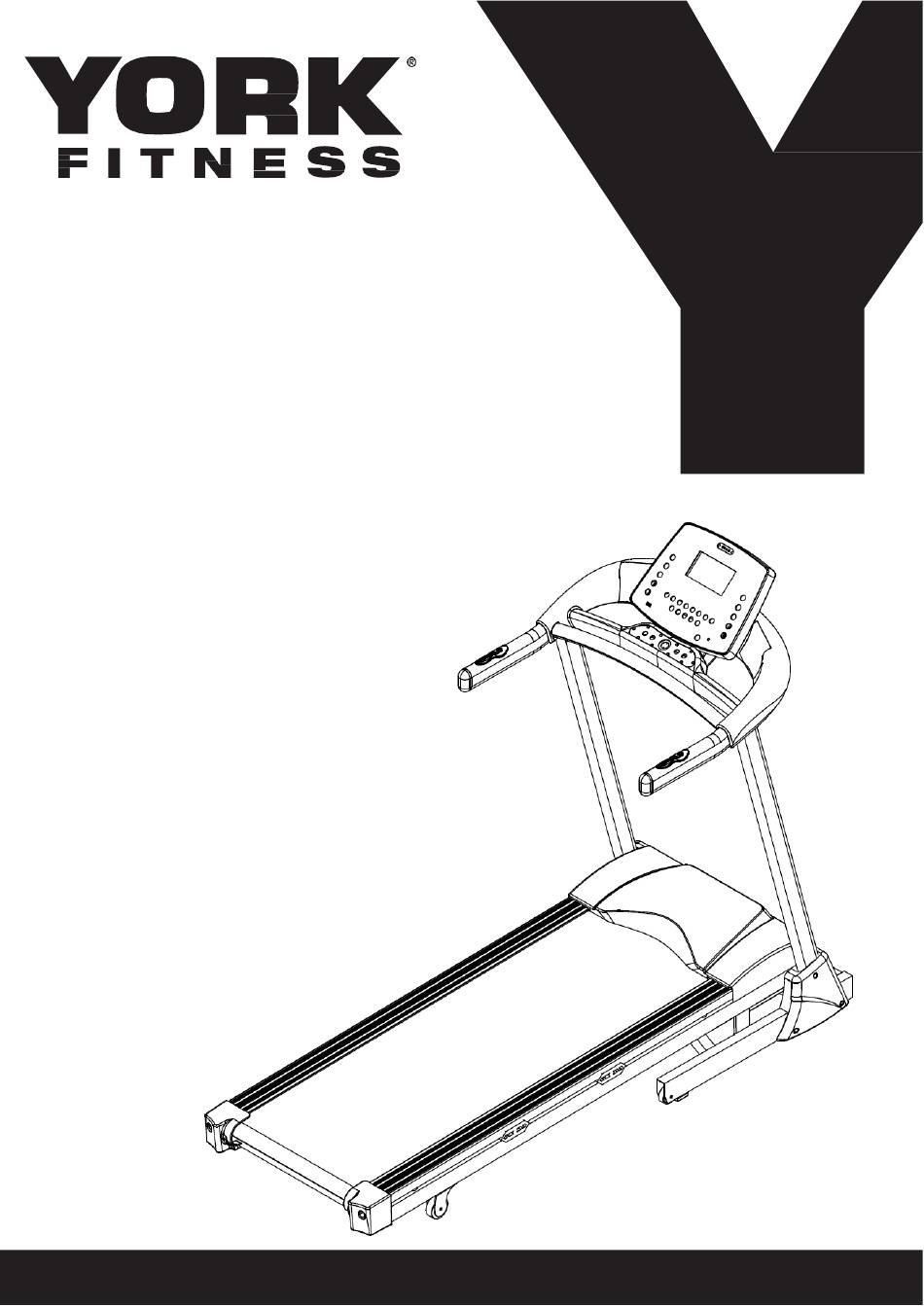

Owner's Manual
T800 Treadmill
Item #51144A
www.yorkfitness.com.au

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the T800 and is the answer not in the manual?

Questions and answers

Summary of Contents for York Fitness T800

  • Page 1 Owner’s Manual T800 Treadmill Item #51144A www.yorkfitness.com.au...
  • Page 2: Table Of Contents

    Table of contents Congratulations on CONTENTS purchasing your exercise equipment from Safety information Customer support Exploded Drawing Parts List You have chosen a high quality, safe and innovative piece of equipment as your training partner and we are certain it will keep you motivated on the way to Hardware Comparison achieving your personal fitness goals.
  • Page 3: Safety Information

    • Due to our continuous policy of product development, • Use only the adjustment setting as described in the York Fitness reserves the right to change instructions. Always use the correct adjustment specifications without notice. pin / fixing. •...
  • Page 4: Customer Support

    • Precise description of the issue / defect Serial Number: - IMPORTANT - Please retain your sales receipt, York Fitness Customer Care may request proof of purchase to validate eligibility for warranty service. Warranty cover starts from the date shown on the proof of purchase.
  • Page 5: Exploded Drawing

    Exploded Drawing www.yorkfitness.com.au...
  • Page 6: Parts List

    Parts List PART NO PART NAME Q'TY Computer frame Left upright Right upright Base frame Incline frame Running platform Computer panel Down cover of Computer panel Up cover of computer Back cover of computer Foam 30*60 Elliptical tube plug Fixed base of shortcut key Button of shortcut key Safety key Left protective cover of upright...
  • Page 7 Motor control board Cushion of power cord Fuse Power switch Power wire 4.2*15 Screw 4.2*60 Screw M8*20 Allen head bolt M10*20 Allen head bolt Ф10 Washer M8*35 Allen head bolt M8 Nylon nut M8*45 Allen head bolt M8*40 Allen head bolt 4.8*15 Screw ∮13 Connective shaft sleeve of running platform M8*50 Allen head bolt...
  • Page 8: Hardware Comparison

    Hardware Comparison Chart For your convenience, we have identified the hardware used in the assembly of this product. The chart below is provided to help you to identify items that may be unfamiliar to you. DESCRIPTION Q'TY 4.2*15 Screw M8*20 Allen head bolt M10*20 Allen head bolt Ф10 Washer 5mm SOCKET HEAD WRENCH...
  • Page 9: Assembly Instructions

    Assembling Instructions WARNING: Please put on all the screws, washers and bolts then tighten them. STEP1: 1. First make sure to connect the Emergency Wires. 2. Then fix the uprights (2, 3) on the base frame 4 with M10*20mm Allen head bolt 52, Ф10 Washer ATTENTION: Be careful when you connect the two console-controller wires.
  • Page 10 STEP3: Fix the protective cover of uprights (16, 17) to the base frame with ST4.2*15 Screw 49 Unfolding Illustration: To unfold the treadmill: 1. Strike the damper by feet. (as shown by the arrow on the left side). 2. Hold the top end covers (as shown by the arrow on top left) and pull the treadmill slowly down onto the ground.
  • Page 11: Safety Exercises

    Safety Exercises Do some warm-up exercise before use; you’ll get twice the result with half the effort. Such as follows: Extend the neck up and down Twist the waist left and right Level push forwards Upright straighten one’s back Left & right poise Up &...
  • Page 12: Computer Operation

    Computer Operation Panel Layout The Operation The required main power is 220~240VAC. Operation Instructions KEY INSTRUCTION: START: Press “START” key to start the treadmill STOP: Press “STOP” key to pause or stop the treadmill (Press it for two seconds to stop the treadmill but press it in two seconds to pause the treadmill.).
  • Page 13 MANUAL MODE Waiting mode: Press “START” key, the treadmill will enter the running mode after the countdown of 3 seconds. Display window TIME window: Display time value. DISTANCE window: Display distance value. PROG window: Display program diagram, in user mode, display user program diagram. SPEED window: Display speed value.
  • Page 14 PROGRAM MODE Waiting mode In the waiting mode, press “MODE” key to change NORMAL MODE- TIME MODE-DISTANCE MODE- CALORIES MODE-P1…..-P12-HRC65%-HRC85%-USER1-USER2-UR3-USER4- NORMAL MODE The default time is 30 minutes. Press “SPEED+/SPEED-” key to adjust the target time of10:00-99:00. Press ENTER to confirm the target time. Press “START”...
  • Page 15 Other Instruction In case of accident in the running state, please press STOP key for two seconds, the treadmill will stop and the incline will return to zero In the running state, pull out the safety key, the treadmill will stop and display “------”. When there is ERROR, It will display ERROR MESSAGE NUMBER When change the level, there is a warning sound, except in the PROGRAM MODE and USER MODE.
  • Page 16 Incline www.yorkfitness.com.au...
  • Page 17 Error Message Error Specification Treatment Further treatment Connection error between panel Check that the lines between Replace the lines and controller panel and controller are Replace the device connected. Replace the panel Replace the transformer Error on motor/MOS crash Check that the line to motor is Replace the device connected.
  • Page 18: Maintenance

    Maintenance Proper maintenance is very important to ensure your treadmill is always in top working condition. Improper maintenance could cause damage or shorten the life of your treadmill and exceed the LIMITED WARRANTY coverage. 1. Important: Never use abrasives or solvents to clean the treadmill. To prevent damage to the computer, keep liquids away and keep it out of direct sunlight.
  • Page 19 Right and left Allen bolts are located at the rear of the treadmill. Deck Lubrication: The walking belt has been pre-lubricated at the factory. However, it is recommended that the walking board be checked periodically for lubrication to ensure optimal treadmill performance. Every 3 months of operation lift the sides of the walking belt and feel the top surface of the walking board as far as you can reach.
  • Page 20: Warranty

    BFE Warranty Policy – November 1 2013 1. When purchased from an authorized BFE distributor the BFE warranty shall guarantee that all framework and components of your product are free from faulty manufacture. All faulty framework and components will be repaired or replaced as set out in this policy.
  • Page 21 Returned Goods: The unauthorized return of parts or product shall be refused and placed in the hands of the carrier at the cost of the shipper. Return authorizations can be obtained from BFE head office only. Service Department hours: Monday to Friday between 9.00am and 4pm Service Phone Number: 07 3272 7010 PLEASE NOTE: that Authorized service technicians do not reside in all areas of this vast country.
  • Page 22 www.yorkfitness.com.au...
