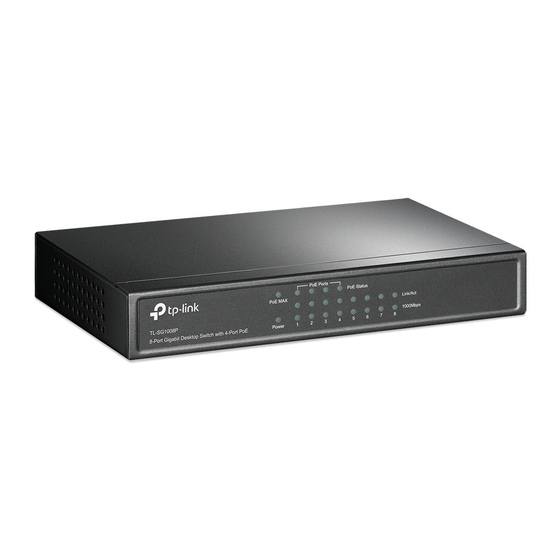

TP-Link TL-SG1008P Installation Manual
8-port gigabit desktop switch with 4-port poe
Hide thumbs
Also See for TL-SG1008P:
- User manual (16 pages) ,
- Installation manual (3 pages) ,
- Mounting manual (5 pages)
Advertisement
Quick Links
Download this manual
See also:
User Manual
Installation Guide
8-Port Gigabit Desktop Switch with 4-Port PoE
TL-SG1008P
Connection
1
Application
Internet
Note:
1.
PoE ports can also connect to non-PoE devices, but only
transmit data.
2.
Maximum PoE power is 15.4W for each PoE port and 53W for all
PoE ports.
Plug and Play
2
1
Ethernet Ports (1-8)
Router
WAN Port
LAN Port
PC
DC Power Adapter
2
For more information, please visit our website: http://www.tp-link.com
PoE Devices
IP Camera
AP
IP Phone
AC Power Cord
3
7106505810 REV1.0.3
PoE Ports (1-4)
