Summary of Contents for TP-Link TL-SG1200

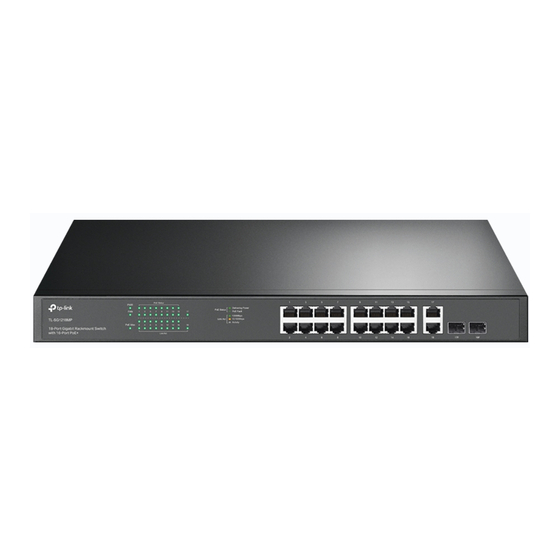

- Page 1 Business Networking Solution Installation Guide Unmanaged/Easy Smart Rackmountable Switches...
- Page 3 ISP. All images, steps, and descriptions in this guide are only examples and may not reflect your actual experience. Some models featured in this guide may be unavailable in your country or region. For local sales information, visit https://www.tp-link.com. • PoE budget calculations are based on laboratory testing. Actual PoE power budget is not guaranteed and will vary as a result of client limitations and environmental factors.
-
Page 4: Table Of Contents
Contents Chapter 1 Introduction ––––––––––––––––––––––– 1 Product Overview ............. 1 Appearance ................ 1 Chapter 2 Installation –––––––––––––––––––––––– 9 Package Contents ............9 Safety Precautions ............9 Installation Tools ............... 11 Product Installation ............11 Chapter 3 Connection –––––––––––––––––––––––– 13 Ethernet Port ..............13 SFP Port ................ -
Page 5: Chapter 1 Introduction
Unmanaged/Easy Smart Rackmountable Switches Chapter 1 Introduction Product Overview The Unmanaged/Easy Smart Switch provides you with a low-cost, easy-to-use, high-performance, seamless, and standard upgrade to improve your network to 100 Mbps or 1000 Mbps. TL-SG1008MP/TL-SG1016PE/TL-SG1218MPE is also a Power Sourcing Equipment (PSE*). The RJ45 ports 1 to 8 on the TL-SG1008MP and TL-SG1016PE and all 10/100/1000Mbps RJ45 ports on the TL-SG1218MPE support Power over Ethernet (PoE*) function, which can automatically detect and supply power to those powered devices (PDs*) complying with IEEE 802.3af and IEEE 802.3at. - Page 6 Unmanaged/Easy Smart Rackmountable Switches The front panel of TL-SF1016 is shown as the following figure. Figure 1-3 Front Panel of TL-SF1016 10/100Mbps LEDs RJ45 Port The front panel of TL-SF1016DS is shown as the following figure. Figure 1-4 Front Panel of TL-SF1016DS LEDs 10/100Mbps RJ45 Port...
- Page 7 Unmanaged/Easy Smart Rackmountable Switches The front panel of TL-SG1016S is shown as the following figure. Figure 1-7 Front Panel of TL-SG1016S LEDs 10/100/1000Mbps RJ45 Port The front panel of TL-SG1016DE is shown as the following figure. Figure 1-8 Front Panel of TL-SG1016DE LEDs Reset 10/100/1000Mbps RJ45 Port...
- Page 8 Unmanaged/Easy Smart Rackmountable Switches The front panel of TL-SF1024D is shown as the following figure. Figure 1-11 Front Panel of TL-SF1024D LEDs 10/100Mbps RJ45 Port The front panel of TL-SG1024 is shown as the following figure. Figure 1-12 Front Panel of TL-SG1024 LEDs 10/100/1000Mbps RJ45 Port...
- Page 9 Unmanaged/Easy Smart Rackmountable Switches The front panel of TL-SG1024DE is shown as the following figure. Figure 1-15 Front Panel of TL-SG1024DE LEDs Reset 10/100/1000Mbps RJ45 Port The front panel of TL-SF1048 is shown as the following figure. Figure 1-16 Front Panel of TL-SF1048 10/100Mbps LEDs RJ45 Port...
- Page 10 Unmanaged/Easy Smart Rackmountable Switches Indication On: The switch is powered on. Power Off: The switch is powered off or power supply is abnormal. Flashing: Power supply is abnormal. Note: PWR for TL-SG1016PE/TL-SF1024/TL-SG1218MPE; Power for other switches. On: Running at 1000 Mbps. Off: Running at 10/100 Mbps or no device is linked to the corresponding port.
- Page 11 Unmanaged/Easy Smart Rackmountable Switches Indication On: Total power supply is between 146 W and 153 W. No power may be supplied if additional PDs are connected. Flashing: Total power supply is equal to or greater than 153 W. Off: Total power supply is less than 146 W. Note: Only for TL-SG1008MP.
- Page 12 PE (Protecting Earth) cable of AC cord or with Ground Cable. For detailed information, refer to the Lightning Protection Guide from the Related Documents of our website: https://www.tp-link.com/us/configuration-guides/lightning_protection_guide Power Socket Plug the female connector of the power cord directly into the power socket and plug the male connector into an AC outlet.
-
Page 13: Chapter 2 Installation
Unmanaged/Easy Smart Rackmountable Switches Chapter 2 Installation Package Contents Make sure that the package contains the following items. If any of the listed items is damaged or missing, contact your distributor. One Switch One Power Cord This installation Guide One Resource CD Two mounting brackets, eight screws and four rubber feet Note:... - Page 14 Unmanaged/Easy Smart Rackmountable Switches Site Requirements ■ Temperature/Humidity 40°C 0°C Keep the equipment room at an appropriate level of temperature and humidity. Too much or too little humidity may lead to bad insulation, leakage of electricity, mechanical property changes, and corrosion. High temperatures may accelerate aging of the insulation materials, significantly shortening the service life of the device.
-
Page 15: Installation Tools
Note: For detailed lightning protection measures, refer to the Lightning Protection Guide from the Related Documents of our website: https://www.tp-link.com/us/configuration-guides/lightning_protection_guide Installation Site When installing the device on a rack or a flat workbench, attach much importance to the following items: The rack or workbench is flat, stable, and sturdy enough to support the weight of 5.5 kg at least. - Page 16 Unmanaged/Easy Smart Rackmountable Switches Figure 2-1 Desktop Installation Feet Bottom of the Device Notch Rack Installation ■ To install the device in an EIA standard-sized, 19-inch rack, follow the instructions described below: 1. Check the efficiency of the grounding system and the stability of the rack. 2.
-
Page 17: Chapter 3 Connection
Unmanaged/Easy Smart Rackmountable Switches Chapter 3 Connection Ethernet Port Connect an Ethernet port of the switch to the computer by RJ45 cable as the following figure shows. Figure 3-1 Connecting the RJ45 Port RJ45 Port RJ45 Cable SFP Port The following figure demonstrates the connection of SFP port to an SFP module. Figure 3-2 Inserting the SFP Module SFP Slot... -
Page 18: Power On
Unmanaged/Easy Smart Rackmountable Switches The power socket, device and rack are well grounded. ■ The device is correctly connected to other network devices. ■ Power On Plug the negative connector of the provided power cord into the power socket of the device and plug the positive connector into a power outlet as the following figure shows. - Page 19 You can find the configuration utility on the resource CD or download it from the official website: https://www.tp-link.com/download-center.html For detailed information about using the configuration utility, refer to the Easy Smart Configuration Utility User Guide on the resource CD. You can find the latest version of this guide on the official website: https://www.tp-link.com/download-center.html Connection...
-
Page 20: Appendix A Troubleshooting
Unmanaged/Easy Smart Rackmountable Switches Appendix A Troubleshooting Q1. What could I do if I forgot the username and password of the Switch? With the switch powered on, press the Reset button for at least 5 seconds to reset the system. The system will be reset to the factory default settings, and the default login user name and password are both admin. -
Page 21: Appendix B Specifications
Unmanaged/Easy Smart Rackmountable Switches Appendix B Specifications Item Content IEEE 802.3i, IEEE 802.3u, IEEE 802.3x IEEE 802.3ab (except TL-SF1016/TL-SF1016DS/TL-SF1024/TL-SF1024D/ TL-SF1048) IEEE 802.1p (for TL-SG1008/ TL-SG1008MP/ TL-SG1016/ TL-SG1016D/ TL-SG1016DE / TL-SG1016PE / TL-SG1016S/ TL-SG1024/ TL-SG1024D/ TL-SG1024DE/TL-SG1024S) Standards IEEE 802.1q (for TL-SG1016DE/TL-SG1016PE/TL-SG1024DE) IEEE 802.3af (for TL-SG1008MP/TL-SG1016PE/TL-SG1218MPE) IEEE 802.3at (for TL-SG1008MP/TL-SG1016PE/TL-SG1218MPE) IEEE 802.3z (for TL-SG1218MPE) - Page 22 Unmanaged/Easy Smart Rackmountable Switches LEDs Power, Link /Act (for TL-SF1016/TL-SF1016DS/TL-SF1024/TL-SF1024D/ TL-SF1048/TL-SG1048) Power, 1000 Mbps, Link/Act, PoE Status, PoE MAX (for TL-SG1008MP) PWR, Speed, PoE Status, PoE MAX, FAN (for TL-SG1016PE) PWR, Link/Act, PoE Status, PoE MAX, FAN (for TL-SG1218MPE) Power, 1000 Mbps, Link/Act (for other switches) Operating Temperature 0°C to 40°C (32°F to 104°F) 0°C to 50°C (32°F to 122°F) (for TL-SG1008MP/TL-SG1218MPE)
- Page 23 Product Name: Unmanaged/Easy Smart Rackmountable Switch Model Number: TL-SG1008/TL-SG1008MP/TL-SF1016/TL-SF1016DS/TL-SG1016/TL-SG1016D/ TL-SG1016S/TL-SG1016DE/TL-SG1016PE/TL-SF1024/TL-SF1024D/TL-SG1024/TL-SG1024D/ TL-SG1024S/TL-SG1024DE/TL-SF1048/TL-SG1048/TL-SG1218MPE Responsible party: TP-Link USA Corporation, d/b/a TP-Link North America, Inc. Address: 145 South State College Blvd. Suite 400, Brea, CA 92821 Website: https://www.tp-link.com/us/ Tel: +1 626 333 0234 Fax: +1 909 527 6803 E-mail: sales.usa@tp-link.com...
- Page 24 We, TP-Link USA Corporation, has determined that the equipment shown as above has been shown to comply with the applicable technical standards, FCC part 15. There is no unauthorized change is made in the equipment and the equipment is properly maintained and operated.
- Page 25 BSMI Notice 安全諮詢及注意事項 ■ ■ 請使用原裝電源供應器或只能按照本產品注明的電源類型使用本產品 . ■ ■ 清潔本產品之前請先拔掉電源線 . 請勿使用液體、噴霧清潔劑或濕布進行清潔 . ■ ■ 注意防潮，請勿將水或其他液體潑灑到本產品上 . ■ ■ 插槽與開口供通風使用，以確保本產品的操作可靠並防止過熱，請勿堵塞或覆蓋開口 . ■ ■ 請勿將本產品置放於靠近熱源的地方 . 除非有正常的通風，否則不可放在密閉位置中 . ■ ■ 請不要私自打開機殼，不要嘗試自行維修本產品，請由授權的專業人士進行此項工作 . 此為甲類資訊技術設備，于居住環境中使用時，可能會造成射頻擾動，在此種情況下，使用者會被要 求採取某些適當的對策 . 限用物質含有情況標示聲明書 限用物質及其化學符號 產品元件名稱 鉛 鎘 汞 六價鉻■...
- Page 26 Safety Information ■ ■ Keep■the■device■away■from■water,■fire,■humidity■or■hot■environments. ■ ■ Do■not■attempt■to■disassemble,■repair,■or■modify■the■device. ■ ■ Place■the■device■with■its■bottom■surface■downward. Please read and follow the above safety information when operating the device. We cannot guarantee that no accidents or damage will occur due to improper use of the device. Please use this product with care and operate at your own risk.
- Page 27 Specifications are subject to change without notice. is a registered trademark of TP-Link Technologies Co., Ltd. Other brands and product names are trademarks or registered trademarks of their respective holders. No part of the specifications may be reproduced in any form or by any means or used to make any derivative such as translation, transformation, or adaptation without permission from TP-Link Technologies Co., Ltd.
- Page 28 To ask questions, find answers, and communicate with TP-Link users or engineers, please visit https://community.tp-link.com to join TP-Link Community. For technical support, the user guide and other information, please visit https://www.tp-link.com/support, or simply scan the QR code. If you have any suggestions or needs on the product guides, welcome to email techwriter@tp-link.com.cn.
