TP-Link TL-SG1008P Installation Manual

Installation Guide
Gigabit Desktop Switch with PoE/PoE+
Package Contents: Switch, Power Adapter, Power Cord and Installation Guide.
Note: For simplicity, we will take TL-SG1008P for example throughout the Guide.

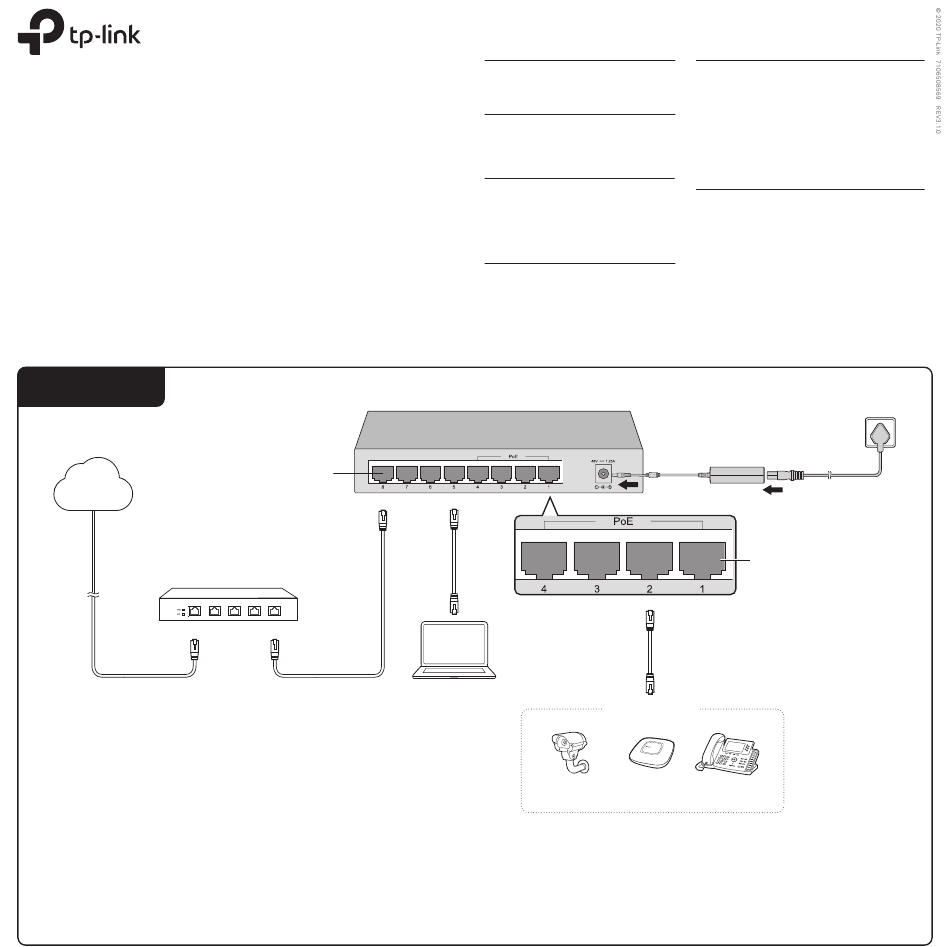

Connection
Internet
WAN Port
Note: 1.
TL-SG1210P has two uplink ports, which typically connect to uplink devices like routers.
Uplink 1 is an SFP port and works with a 1000 Mbps SFP module. Uplink 2 is an RJ45 port.
2. PoE/PoE+ ports typically connect to PoE Devices. Besides, PoE/PoE+ ports can also connect to non-PoE devices, but only transmit data.
3. For TL-SG1008P, maximum PoE power is 15.4 W for each PoE port and 55 W for all PoE ports in total.
For TL-SG1210P, maximum PoE power is 30 W for each PoE port and 63 W for all PoE ports in total.
4. PoE budget calculations are based on laboratory testing. Actual PoE power budget is not guranteed and will vary as a result of client
limitations and environmental factors.
Ethernet Ports (1-8)
Router
LAN Port
LED Explanation
Power
On: Power on
Off: Power off
PoE Status
On: Providing PoE power
Flashing: PoE fault
Off: Not providing PoE power
Link/Act (For TL-SG1008P)
On: A device is linked to the correspoding
port and running properly.
Flashing: Transmitting or receiving data.
Off: No device is linked to the
corresponding port.
1000Mbps (For TL-SG1008P)
On: Running at 1000 Mbps.
Off: Running at 10/100 Mbps or no device
is linked to the corresponding port.
PC
PoE Devices
IP Camera
PoE MAX
For TL-SG1008P:
On: 48 W≤Total power supply < 55 W
Flashing: Total power supply ≥ 55 W
Off: Total power supply < 48 W
For TL-SG1210P:
On: 56 W≤Total power supply < 63 W
Flashing: Total power supply ≥ 63 W
Off: Total power supply < 56 W
Link/Act, Uplink 1, Uplink 2 (For TL-SG1210P)
Green On: Running at 1000 Mbps, but no activity.
Green Flashing: Running at 1000 Mbps and is
transmitting or receiving data.
Yellow On: Running at 10/100 Mbps, but no activity.
Yellow Flashing: Running at 10/100 Mbps and is
transmitting or receiving data.
Off: No device is linked to the corresponding port.
DC Power Adapter
AC Power Cord
PoE Ports (1-4)
AP IP Phone
