Business Networking Solution
Installation Guide
Unmanaged/Easy Smart Rackmountable Switches

Advertisement

Table of Contents
loading

Summary of Contents for TP-Link TL-SG1008

  • Page 1 Business Networking Solution Installation Guide Unmanaged/Easy Smart Rackmountable Switches...
  • Page 2 Remind to take notice. The note contains the helpful information for a better use of the product. Related Document This Installation Guide is also available in PDF on our website. To obtain the latest documentation and product information, visit the official website: https://www.tp-link.com. www.bezpeka-shop.com...
  • Page 3: Table Of Contents

    Contents Chapter 1 Introduction ––––––––––––––––––––––– 1 Product Overview ............. 1 Appearance ................ 1 Chapter 2 Installation –––––––––––––––––––––––– 9 Package Contents ............9 Safety Precautions ............9 Installation Tools ............... 11 Product Installation ............11 Chapter 3 Connection –––––––––––––––––––––––– 13 Ethernet Port ..............13 SFP Port ................
  • Page 4: Chapter 1 Introduction

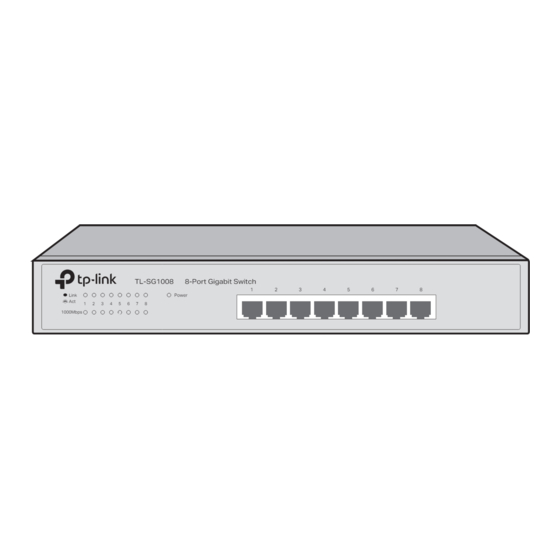

    IP telephones, wireless LAN access points, network cameras, network hubs, embedded computers, and so on. Appearance ■ Front Panel The front panel of TL-SG1008 is shown as the following figure. Figure 1-1 Front Panel of TL-SG1008 TL-SG1008 8-Port Gigabit Switch...
  • Page 5 Unmanaged/Easy Smart Rackmountable Switches The front panel of TL-SF1016 is shown as the following figure. Figure 1-3 Front Panel of TL-SF1016 10/100 Mbps RJ45 Port LEDs The front panel of TL-SF1016DS is shown as the following figure. Figure 1-4 Front Panel of TL-SF1016DS LEDs 10/100 Mbps RJ45 Port The front panel of TL-SG1016 is shown as the following figure.
  • Page 6 Unmanaged/Easy Smart Rackmountable Switches The front panel of TL-SG1016DE is shown as the following figure. Figure 1-8 Front Panel of TL-SG1016DE LEDs 10/100/1000 Mbps RJ45 Port Reset The front panel of TL-SG1016PE is shown as the following figure. Figure 1-9 Front Panel of TL-SG1016PE LEDs 10/100/1000 Mbps RJ45 Port...
  • Page 7 Unmanaged/Easy Smart Rackmountable Switches The front panel of TL-SG1024D is shown as the following figure. Figure 1-13 Front Panel of TL-SG1024D LEDs 10/100/1000 Mbps RJ45 Port The front panel of TL-SG1024S is shown as the following figure. Figure 1-14 Front Panel of TL-SG1024S LEDs 10/100/1000 Mbps RJ45 Port...
  • Page 8 On: Running at 1000 Mbps. Off: Running at 10/100 Mbps or no device is linked to the corresponding port. 1000Mbps Note: For TL-SG1008/TL-SG1008MP/TL-SG1016/TL-SG1016D/TL-SG1016S/ TL-SG1016DE/TL-SG1024/TL-SG1024D/TL-SG1024S/TL-SG1024DE. Green On: Running at 1000 Mbps but no activity. Green Flashing: Running at 1000 Mbps and is transmitting or receiving data.
  • Page 9 On: A device is linked to the corresponding port and running properly. Flashing: Transmitting or receiving data. Off: No device is linked to the corresponding port. Note: For TL-SG1008/TL-SG1008MP/TL-SF1016/TL-SG1016/TL-SG1016D/TL-SG1016S/TL- SF1016DS/TL-SG1016DE/TL-SF1024/TL-SF1024D/TL-SG1024/TL-SG1024D/TL-SG1024S/TL- SG1024DE/TL-SF1048. Green On: Running at 1000 Mbps but no activity.
  • Page 10 Unmanaged/Easy Smart Rackmountable Switches Switch Explanation Switch Indication Off: All the ports transmit data with the same priority. Priority On: The specific ports transmit data with a higher priority than other ports. (For TL-SG1218MP) Isolation Off: Ports can transmit data with each other. (For TL-SG1218MP/TL- SG1016/TL-SG1016D/TL- On: Specific ports cannot transmit data with other downlink ports.
  • Page 11 PE (Protecting Earth) cable of AC cord or with Ground Cable. For detailed information, refer to the Lightning Protection Guide from the Related Documents of our website: https://www.tp-link.com/us/configuration-guides/lightning_protection_guide. Power Socket Plug the female connector of the power cord directly into the power socket and plug the male connector into an AC outlet.
  • Page 12: Chapter 2 Installation

    Unmanaged/Easy Smart Rackmountable Switches Chapter 2 Installation Package Contents Make sure that the package contains the following items. If any of the listed items is damaged or missing, contact your distributor. The figures are for demonstration only. The actual items may differ in appearance and quantity from the depicted.
  • Page 13 Unmanaged/Easy Smart Rackmountable Switches ■ Site Requirements Temperature/Humidity 40°C 0°C Keep the equipment room at an appropriate level of temperature and humidity. Too much or too little humidity may lead to bad insulation, leakage of electricity, mechanical property changes, and corrosion. High temperatures may accelerate aging of the insulation materials, significantly shortening the service life of the device.
  • Page 14: Installation Tools

    Note: For detailed lightning protection measures, refer to the Lightning Protection Guide from the Related Documents of our website: https://www.tp-link.com/us/configuration-guides/lightning_protection_guide. Installation Site When installing the device on a rack or a flat workbench, attach much importance to the following items: The rack or workbench is flat, stable, and sturdy enough to support the weight of 5.5 kg at least.
  • Page 15 Unmanaged/Easy Smart Rackmountable Switches 1. Set the device on a flat surface which is strong enough to support the entire weight of the device with all fittings. 2. Remove the adhesive backing papers from the rubber feet. 3. Turnover the device and attach the supplied rubber feet to the recessed areas on the bottom at each corner of the device.
  • Page 16: Chapter 3 Connection

    Unmanaged/Easy Smart Rackmountable Switches Chapter 3 Connection Ethernet Port Connect an Ethernet port of the switch to the computer by RJ45 cable as the following figure shows. Figure 3-1 Connecting the RJ45 Port RJ45 Port RJ45 Cable SFP Port The following figure demonstrates the connection of SFP port to an SFP module. Figure 3-2 Inserting the SFP Module SFP Slot...
  • Page 17: Power On

    Unmanaged/Easy Smart Rackmountable Switches The power socket, device and rack are well grounded. ■ The device is correctly connected to other network devices. ■ Power On Plug the negative connector of the provided power cord into the power socket of the device and plug the positive connector into a power outlet as the following figure shows.
  • Page 18 User Guide. You can find the latest version of this guide on the official website: https://www.tp-link.com/download-center.html. Using the Configuration Utility You can find the configuration utility from the official website: https://www.tp-link.com/download- center.html. For detailed information about using the configuration utility, refer to the Easy Smart Configuration Utility User Guide.
  • Page 19: Appendix A Troubleshooting

    Unmanaged/Easy Smart Rackmountable Switches Appendix A Troubleshooting Q1. What could I do if I forgot the username and password of the Switch? With the switch powered on, press the Reset button for at least 5 seconds to reset the system. The system will be reset to the factory default settings, and the default login user name and password are both admin.
  • Page 20: Appendix B Specifications

    Unmanaged/Easy Smart Rackmountable Switches Appendix B Specifications Item Content IEEE 802.3i, IEEE 802.3u, IEEE 802.3x IEEE 802.3ab (except TL-SF1016/TL-SF1016DS/TL-SF1024/TL-SF1024D/ TL-SF1048) IEEE 802.1p (for TL-SG1008/TL-SG1008MP/TL-SG1016/TL-SG1016D/ TL-SG1016DE/TL-SG1016PE/TL-SG1016S/TL-SG1024/TL-SG1024D/ TL-SG1024DE/TL-SG1024S/TL-SG1218MP/TL-SG1218MPE/TL-SG1428PE) Standards IEEE 802.1q (for TL-SG1016DE/TL-SG1016PE/TL-SG1024DE/TL-SG1218MPE/ TL-SG1428PE) IEEE 802.3af (for TL-SG1008MP/TL-SG1016PE/TL-SG1218MP/TL-SG1218MPE/ TL-SG1428PE) IEEE 802.3at (for TL-SG1008MP/TL-SG1016PE/TL-SG1218MP/TL-SG1218MPE/ TL-SG1428PE) IEEE 802.3z (for TL-SG1218MP/TL-SG1218MPE/TL-SG1428PE)
  • Page 21 Unmanaged/Easy Smart Rackmountable Switches LEDs Power, Link/Act (for TL-SF1016/TL-SF1016DS/TL-SF1024/TL-SF1024D/ TL-SF1048/TL-SG1048) Power, 1000 Mbps, Link/Act, PoE Status, PoE MAX (for TL-SG1008MP) PWR, Speed, PoE Status, PoE MAX, FAN (for TL-SG1016PE) PWR, Link/Act, PoE Status, PoE MAX, FAN (for TL-SG1218MP/TL-SG1218MPE/ TL-SG1428PE) Power, 1000 Mbps, Link/Act (for other switches) Operating Temperature 0°C to 50°C (32°F to 122°F) (for TL-SG1008MP/TL-SG1218MP/TL-SG1218MPE/TL-SG1428PE)
  • Page 22 EU Declaration of Conformity TP-Link hereby declares that the device is in compliance with the essential requirements and other relevant provisions of directives 2014/30/EU, 2014/35/EU, 2011/65/EU and (EU)2015/863. The original EU Declaration of Conformity may be found at https://www.tp-link.com/en/support/ce/...
