INSTALLATION INSTRUCTIONS
FREESTANDING TUB
HIGH GLOSS ACRYLIC SURFACE
Models: 2549, 2765, 2766, 2767
Thank you for selecting American Standard...the benchmark of fine quality for over 100 years. To ensure that your
installation proceeds smoothly--please read these instructions carefully before you begin.
BEFORE YOU BEGIN....
Local building codes vary by location. Observe all local plumbing and building codes.
Your new bath is shipped to you after careful inspection.
To ensure maximum performance and pleasure from this product, please follow the instructions and cautions.
!
NOTE: Take extra care in handling surfaces of the bath. Use only non-abrasive cloths to avoid scratching.
TOOLS & MATERIALS REQUIRED
TOOLS:
• Level
• Square
• Tape Measure
• Pipe Wrench
• Slip Joint Pliers
ROUGH-IN INFORMATION:

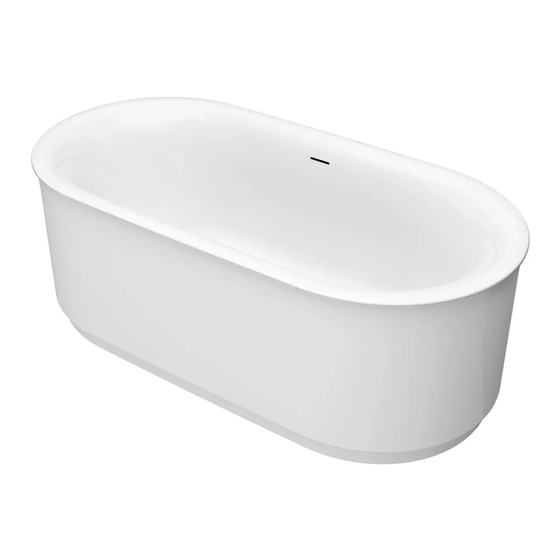

FREESTANDING TUB
Model 2549
Note: An access panel must be
provided to facilitate the connection
of the drain to the drain/waste outlet.
Access must be made through the
floor below the tub.
Using the OS&B
Island Tub Drain or
®
similar product may eliminate the
need for an access panel. Refer to
the manufacturer's installation
instructions for details.
Drain not included, sold separately.
All product names listed herein are trademarks of AS America, Inc. unless otherwise noted.
© AS America, Inc. 2019
• Standard Woodworking Tools
• Personal Safety Equipment
• Caulking Gun
34"
(863mm)
26˚
LUMBAR
ANGLE
19-11/16"
(500mm)
GENERAL SPECIFICATIONS FOR
INSTALLED SIZE
WEIGHT
WEIGHT w/WATER
GAL. TO OVERFLOW
BATHING WELL AT SUMP
BATHING WELL AT RIM
WATER DEPTH TO OVERFLOW
FLOOR LOADING
(PROJECTED AREA)
MATERIALS:
• Silicone Caulking
• Tub & Tile Caulk
68"
(1726mm)
10-7/16"
(265mm)
Ø2-1/8"
(Ø55mm)
21-5/16"
(542mm)
3-1/8"
(80mm)
2-3/4"
(69mm)
64-1/2"
(1636mm)
2549 FREE STANDING BATH
68 x 34 x 24-1/2 in.
(1726 x 863 x 622mm)
145 Lbs. (66 Kg.)
710 Lbs. (322 Kg.)
68 Gal. (257L)
42-5/8 x 20-7/8 In. (1083 x 530mm)
65-1/2 x 31-1/2 In. (1662 x 799mm)
17 In. (431mm)
32 Lbs./Sq.Ft. (155 Kgs./Sq.m)
1-1/4"
(32mm)
17"
(431mm)
34"
(863mm)
24-1/2"
(622mm)
3-1/4"
(83mm)
30-1/2"
(773mm)
755021-100 Rev. 4 8/19
