American Standard 6030ST3 Installation Instructions

INSTALLATION INSTRUCTIONS

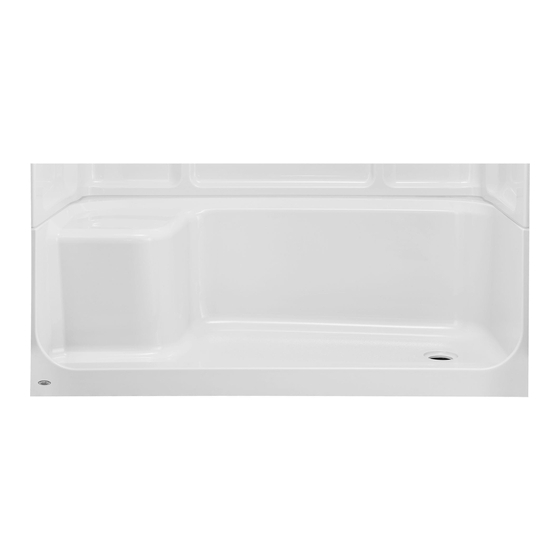

6030ST3 Seated Shower Base
HIGH GLOSS ACRYLIC SURFACE
Thank you for selecting American Standard...the benchmark of fine quality for over 100 years. To ensure
that your installation proceeds smoothly--please read these instructions carefully before you begin.

BEFORE YOU BEGIN....

Local building codes vary by location. Observe all local plumbing and building codes.
Your new bath is shipped to you after careful inspection.
To insure maximum performance and pleasure from this product, please follow the instructions and cautions.
TOOLS & MATERIALS REQUIRED
TOOLS:
• Level
• Square
• Tape Measure
• Pipe Wrench
• Slip Joint Pliers
NOTE: Take extra care in handling surfaces of the bath. Use only non-abrasive cloths to avoid scratching.
All product names listed herein are trademarks of AS America, Inc. unless otherwise noted.
© AS America, Inc. 2017
• Screw Driver
• Standard Woodworking Tools
• Personal Safety Equipment
• Caulking Gun

ROUGH-IN INFORMATION:

6030ST3 SEATED SHOWER BASE
(Left-Hand Outlet shown, Right-Hand Outlet opposite)
9"
(229mm)
15-5/8"
(397 mm)
1-1/8"
(29mm)
19-3/4"
(502mm)
STRINGER
HEIGHT
GENERAL SPECIFICATIONS FOR 6030ST3 SHOWER BASE
INSTALLED SIZE
WEIGHT
WEIGHT w/WATER
GAL. TO OVERFLOW
BATHING WELL AT SUMP
BATHING WELL AT RIM
WATER DEPTH TO OVERFLOW
FLOOR LOADING
(PROJECTED AREA)
PTS.
2
CUBE (FT )
MATERIALS:
• Nails
• Plumber's Putty
• Silicone Sealant
• 1 x 3 or 2 x 4 Stringers
• Drop Cloth
• Mortar Mix or Grout
60"
(1524mm)
1-3/8"
(35mm)
3-1/2"
(89mm)
1"
(25mm)
16-15/16"
(430mm)
SEAT
HEIGHT
20"
(508mm)
60 x 30 x 20 In.
(1524 x 762 x 508mm)
55 Lbs. (25 Kg)
28 Lbs./Sq.Ft. (137 Kgs/Sq.m)
18-3/16"
(462mm)
30"
(762mm)
22-3/8"
(572mm)
1-1/8"
(29mm)
3-1/4" (83mm)
THRESHOLD
HEIGHT
N/A
N/A
N/A
N/A
N/A
9.8
26
755173-100
