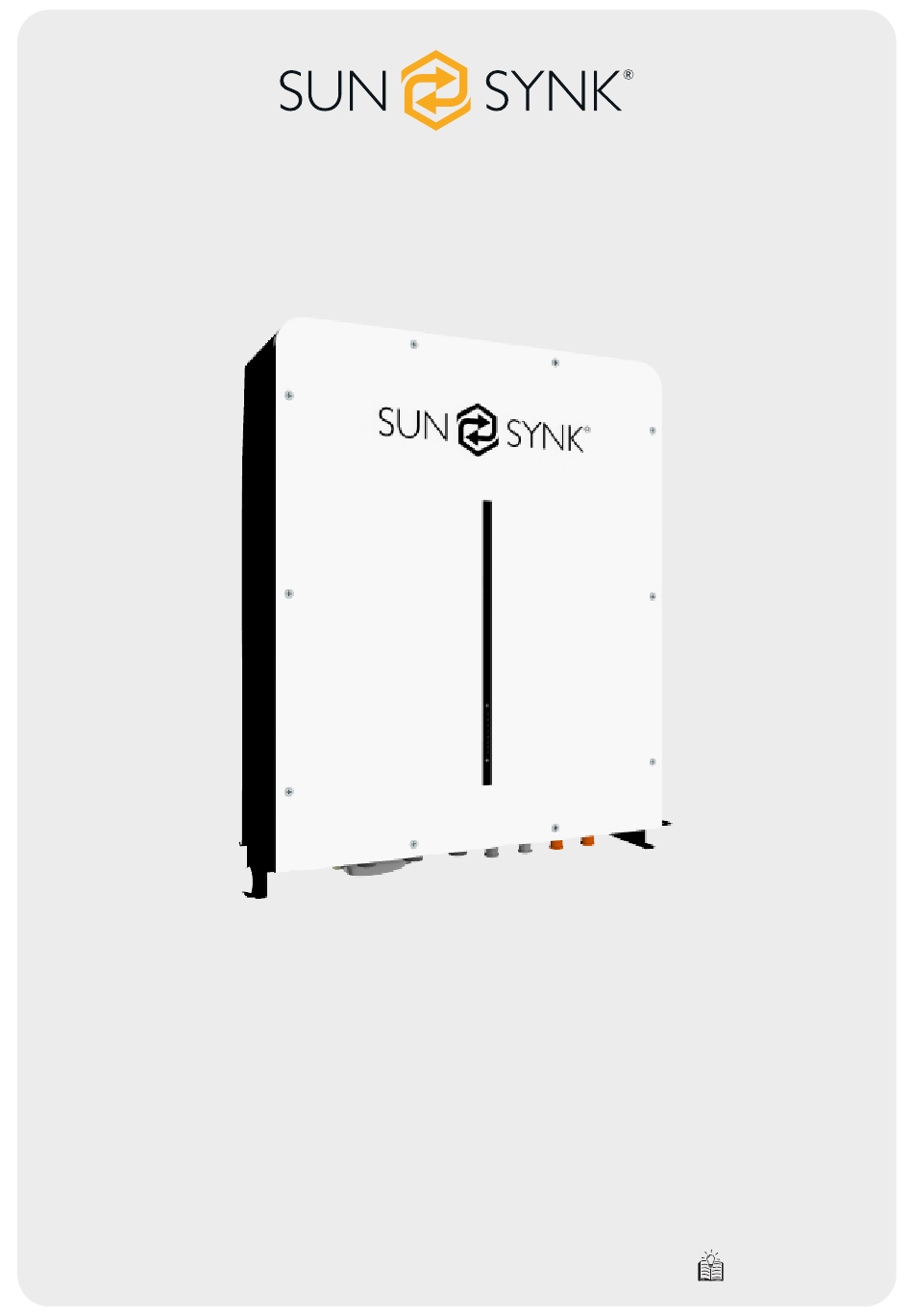

- Page 1 SUNSYNK-L3.0 USER MANUAL www.sunsynk.com sales@sunsynk.com customerservices@sunsynk.com PLEASE RETAIN FOR v.6 (05/06/24) FUTURE REFERENCE...
-
Page 2: Table Of Contents
Basic System Architecture TECHNICAL DATA EQUIPMENT INTERFACE INSTRUCTION INSTALLATION Parts List Installation Precaution Selecting the Mounting Area Tools and Safety Gears Necessary Mounting the Battery Installation Connection Inspection Starting the SUNSYNK-L3.0 Battery Wiring Diagram Symbol Explanation MONITORING INSPECTION, CLEANING AND MAINTENANCE General Information Inspection Cleaning Maintenance Storage TROUBLESHOOTING BATTERY RECOVERY... -
Page 3: Introduction
Please consult relevant technical personnel before expansion. The individual will bear all consequences ƒ caused by personal misoperation, not covered by the Sunsynk warranty. Sunsynk lithium battery is prohibited to work in Lead-acid Mode. Any failure caused by using a Lead-acid ƒ model is not covered by the Sunsynk warranty. -
Page 4: Safety
It is crucial and necessary to read the user manual carefully (in the accessories) before installing or using ƒ the SUNSYNK-L3.0 battery. Failure to do so or to follow any of the instructions or warnings in this docu- ment can result in electrical shock, serious injury, death, or damage to the battery, potentially rendering it inoperable. -
Page 5: Procedures And Precautions Before Connecting
Liquid fire extinguishers are forbidden. In case of fire, only dry fire extinguishers can be used. ƒ Please do not open, repair, or disassemble the battery except staff from SUNSYNK or authorized by ƒ SUNSYNK. We do not undertake any consequences or related responsibility because of violation of safe- ty operation or violation of design, production, and equipment safety standards. -
Page 6: Handling
ƒ Damaged Battery A damaged battery should not be used and should be returned to Sunsynk or properly discarded via a recy- cling facility. Leaking electrolytes can cause skin irruption and chemical burns, so contact should be avoided. Flush eyes with plenty of water for at least 15 minutes, occasionally lifting the upper and lower eyelids. -
Page 7: Basic System Architecture
Basic System Architecture SUNSYNK-L3.0 dimensions are presented below: Contact our customer service or an accredited seller for precise information about application cases of the SUNSYNK-L3.0 battery. SUNSYNK-L3.0 | User Manual... -
Page 8: Technical Data
DC Usable Energy, test conditions: 90% DOD, 0.5C charge & discharge at 25° C. System usable energy may vary due to system configuration parameters. The current is affected by temperature and SOC. The warranty is due whichever reached first of warranty period or energy throughout. SUNSYNK-L3.0 | User Manual... -
Page 9: Equipment Interface Instruction
SOC LED: 5 green LEDs to show the battery’s current capacity. Each light rep- resents 20% of the capacity. Inverter communication terminal: (RJ45 port) follow the CAN protocol (baud rate: 500K), used to output battery information to the inverter. SUNSYNK-L3.0 | User Manual... - Page 10 Protection and Alarm Management and Monitor Charge/Discharge End Intelligent Protect Mode Charge Over Voltage Intelligent Charge Mode Discharge Under Voltage Protect, Charge Current Limit Charge/Discharge Over Current Intelligent Protect Mode High/Low Temperature(cell/BMS) Intelligent Protect Mode Short Circuit Protect SUNSYNK-L3.0 | User Manual...
-
Page 11: Installation
Choose an appropriate indoor location that adheres to the operating temperature range and IP rating ƒ specified for the SUNSYNK-L3.0 lithium battery (IP65). Avoid direct sunlight, rain exposure, and snow accumulation during installation and operation to prevent potential damage. Ensure the selected location is dry, well-ventilated, and away from heat sources or highly flammable ƒ... -
Page 12: Selecting The Mounting Area
The distance from the air outlet of the inverter is more than 0.5 meters. ƒ Do not cover or wrap the battery case or cabinet. ƒ Do not place the SUNSYNK-L3.0 in the children's or pet's reach area. ƒ The installation area shall avoid direct sunlight. ƒ... -
Page 13: Tools And Safety Gears Necessary
If insulated tools are not available, cover the entire exposed metal surfaces of the available tools, except their tips, with electrical tape. We recommend wearing the following safety gear when dealing with the battery pack installation or mainte- nance. Safety Gloves Safety Goggles Safety Shoes SUNSYNK-L3.0 | User Manual... -
Page 14: Mounting The Battery
2. Placement: Position the SUNSYNK-L3.0 lithium battery on a stable and level surface capable of supporting its ƒ weight. Ensure the surface is non-conductive and free from moisture or contaminants. -
Page 15: Connection Inspection
Usage of positive and negative cables. ƒ Connection of the positive and negative terminals. ƒ All the bolts are tightened. ƒ Cables fixation and appearance. ƒ The setting of the dialling address. ƒ The installation of the protecting cover. ƒ SUNSYNK-L3.0 | User Manual... -
Page 16: Starting The Sunsynk-L3.0 Battery
ƒ Check that the isolator between parallel batteries is also in the OFF position. ƒ 3. Battery Connection: Connect the SUNSYNK-L3.0 Lithium battery to the inverter using the appropriate DC cables. ƒ Ensure the connections are tight and secure. ƒ... -
Page 17: Wiring Diagram
ƒ Allow the inverter to complete its shutdown sequence. ƒ 4. Battery Disconnection: Disconnect the SUNSYNK-L3.0 Lithium battery from the inverter by removing the DC cables. ƒ Ensure the connections are handled safely and with appropriate precautions. ƒ 5. Safety Check: Verify that all connections are secure and that there are no signs of damage or overheating. - Page 18 Battery Pack ②AC Breaker ③AC Breaker CT1 CT2 Grid ④AC Breaker Home Load Backup Load ① DC Breaker for battery ② AC Breaker for backup load ③ AC Breaker for grid ④AC Breaker for home load SUNSYNK-L3.0 | User Manual...
- Page 19 ⑩ AC Breaker for home load Battery Pack ⑥ Inverter No.1 (master) Ground ③ ⑨ Battery Pack ⑧ CT1 CT2 Grid L1L2L3 ⑩ Arrow pointing to inverter Home Load Backup Load Master inverter Slave Inverter Slave Inverter SUNSYNK-L3.0 | User Manual...
-
Page 20: Symbol Explanation
Symbol Explanation Many symbols are present with the battery product and used materials to install it. Next, a list of symbols and their meanings is presented. SUNSYNK-L3.0 | User Manual... -
Page 21: Monitoring
CANBUS protocol, ensur- ing continuous communication with the batteries. Users can easily access this monitoring data through the Sunsynk data logger via the Sunsynk Connect app. External monitoring is also supported for added conveni- ence. - Page 22 The power tab in the battery section shows the amount of power going into and out of the battery during the chosen time period. This helps you understand how much power the battery is using. The SOC tab displays the battery's state of charge. SUNSYNK-L3.0 | User Manual...
- Page 23 The voltage tab indicates the state of the voltage of the battery. The current tab shows the current through the battery at any given time. SUNSYNK-L3.0 | User Manual...
- Page 24 If you select the custom tab, you'll find a graph that provides detailed insights into the inverter's operations, including those related to the battery. The parameter tab grants access to all available data for the battery. SUNSYNK-L3.0 | User Manual...
- Page 25 The graph displays the selected options you've chosen, with a maximum of ten selections at a time. You can select and view different battery parameters for the required operational period. Hovering your cursor over the graph allows you to inspect and get more details. SUNSYNK-L3.0 | User Manual...
-
Page 26: Inspection, Cleaning And Maintenance
Do not dismantle or dissect any battery in the SUNSYNK-L3.0; it's strictly prohibited. ƒ After over-discharging the SUNSYNK-L3.0 battery, recharge it within 48 hours. You can also charge the ƒ SUNSYNK-L3.0 in parallel. Connect the charger to the output port of any SUNSYNK-L3.0 after connecting batteries in parallel. -
Page 27: Troubleshooting
After checking the above data, please send it to our personnel service. Thus, we will evaluate your problem and reply with the best solution. SUNSYNK-L3.0 | User Manual... -
Page 28: Battery Recovery
99%. This high-purity copper can then undergo further refining to produce electrolytic copper. Recovery of Diaphragm The diaphragm material is mainly harmless and has no recycling value. List of Recycling Equipment Automatic dismantling machine, pulverize, wet gold pool, etc. SUNSYNK-L3.0 | User Manual... -
Page 29: Transportation Requirements
PI965 Section I for transport by water, air, or land. For transportation of lithium-ion batteries assigned to Class 9, use Class 9 Miscellaneous Dangerous Goods and UN Identification labels. Refer to relevant transportation documents for further guidance. SUNSYNK-L3.0 | User Manual... - Page 30 Room 702-704, 7/F Texwood Plaza, 6 How Ming Street, Kwun Tong, Kowloon, Hong Kong. UK Address: Sunsynk UK Ltd, 17 Turnstone Business Park, Mulberry Avenue, Widnes, Cheshire, WA8 0WN. SA Address: Globaltech Sunsynk South Africa (Pty) Ltd, Unit 2 Highview Boulevard, Ferndale 2194.
