FRAME SETUP
CRU DataPort | SCSI frame
The CRU DataPort I SCSI frame assembly has a SCSI ID jumper block located on the bottom-right corner,
beside the SCSI header. Refer to Figure 8 "Back view of CRU DataPort I frame." for more details.
7 Not to scale
US PATENT
AUTHORIZATION
SCSI ID
1
oooo BAA

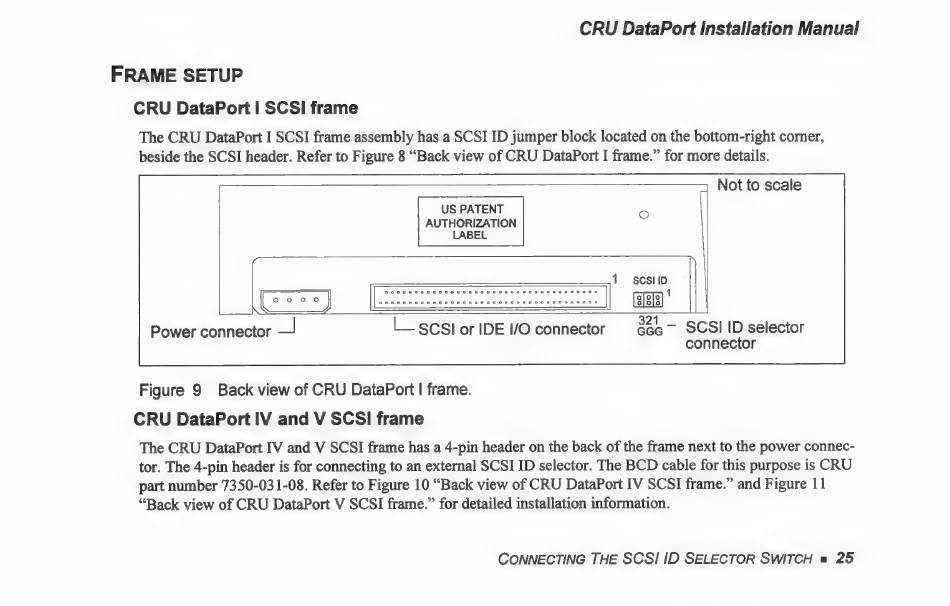

Figure 9 Back view of CRU DataPort I frame.
CRU DataPort IV and V SCSI frame
The CRU DataPort IV and V SCSI frame has a 4-pin header on the back of the frame next to the power connec-
tor. The 4-pin header is for connecting to an external SCSI ID selector. The BCD cable for this purpose is CRU
part number 7350-031-08. Refer to Figure 10 "Back view of CRU DataPort IV SCSI frame." and Figure 11
*Back view of CRU DataPort V SCSI frame." for detailed installation information.
