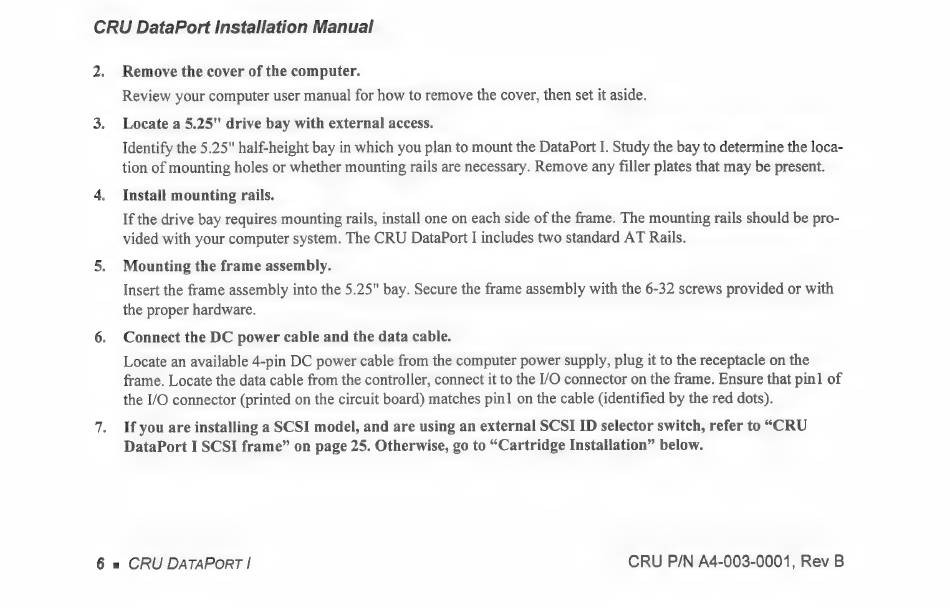

2. Remove the cover of the computer.
Review your computer user manual for how to remove the cover, then set it aside.
3. Locate a 5.25" drive bay with external access.
Identify the 5.25" half-height bay in which you plan to mount the DataPort I. Study the bay to determine the loca-
tion of mounting holes or whether mounting rails are necessary. Remove any filler plates that may be present.
4. Install mounting rails.
If the drive bay requires mounting rails, install one on each side of the frame. The mounting rails should be pro-
vided with your computer system. The CRU DataPort I includes two standard AT Rails.
5. Mounting the frame assembly.
Insert the frame assembly into the 5.25" bay. Secure the frame assembly with the 6-32 screws provided or with
the proper hardware.
6. Connect the DC power cable and the data cable.
Locate an available 4-pin DC power cable from the computer power supply, plug it to the receptacle on the
frame. Locate the data cable from the controller, connect it to the I/O connector on the frame. Ensure that pin1 of
the I/O connector (printed on the circuit board) matches pin1 on the cable (identified by the red dots).
7. If you are installing a SCSI model, and are using an external SCSI ID selector switch, refer to "CRU
DataPort I SCSI frame" on page 25. Otherwise, go to *Cartridge Installation" below.
