CRU DataPort Installation Manual

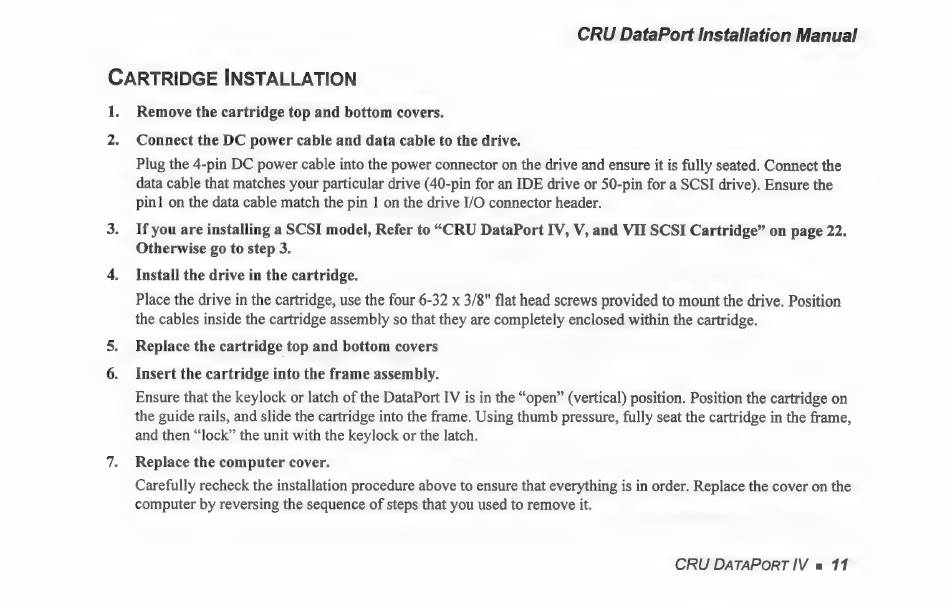

CARTRIDGE INSTALLATION
1. Remove the cartridge top and bottom covers.
2. Connect the DC power cable and data cable to the drive.
Plug the 4-pin DC power cable into the power connector on the drive and ensure it is fully seated. Connect the
data cable that matches your particular drive (40-pin for an IDE drive or 50-pin for a SCSI drive). Ensure the
pinl on the data cable match the pin 1 on the drive I/O connector header.
3. Ifyou are installing a SCSI model, Refer to "CRU DataPort IV, V, and VII SCSI Cartridge" on page 22.
Otherwise go to step 3.
4. Install the drive in the cartridge.
Place the drive in the cartridge, use the four 6-32 x 3/8" flat head screws provided to mount the drive. Position
the cables inside the cartridge assembly so that they are completely enclosed within the cartridge.
5. Replace the cartridge top and bottom covers
6. Insert the cartridge into the frame assembly.
Ensure that the keylock or latch of the DataPort IV is in the "open" (vertical) position. Position the cartridge on
the guide rails, and slide the cartridge into the frame. Using thumb pressure, fully seat the cartridge in the frame,
and then "lock" the unit with the keylock or the latch.
7. Replace the computer cover.
Carefully recheck the installation procedure above to ensure that everything is in order. Replace the cover on the
computer by reversing the sequence of steps that you used to remove it.
