CRU DataPort Installation Manual
CRU DataPort I cartridge
The CRU DataPort I SCSI model cartridge has a 5-pin connector, as shown in Figure 6, for connecting the BCD
cable from cartridge to drive. The optional cable set (CRU part number 7350-039-01) contains two cables. This
procedure uses the cable with three minitek connectors on one end and a 5-pin in-line connector on the other end.
Refer to Figure 6 for details.
Inside rear wall of cartridge
!|loooo
2
L| 1 (Red dot)

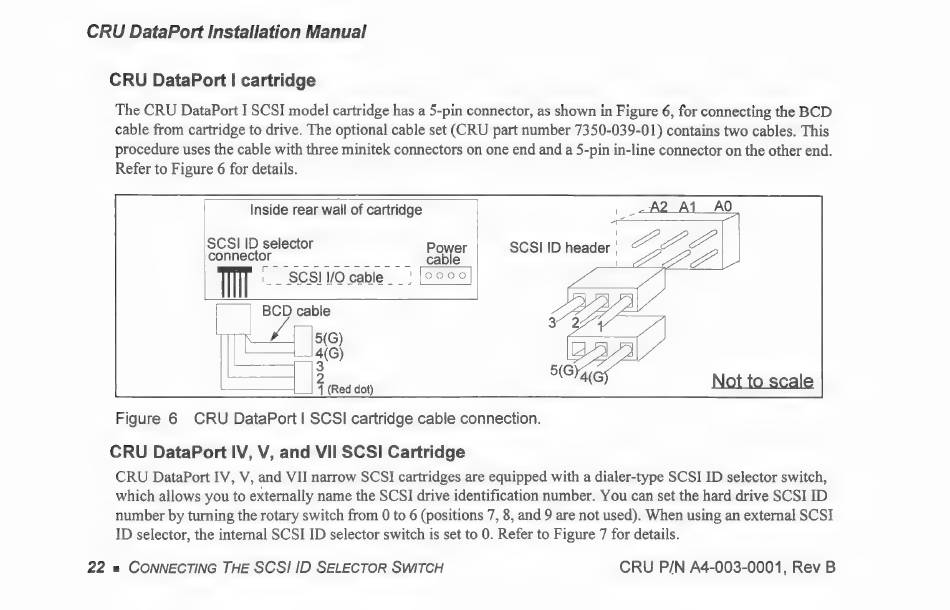

Figure 6 CRU DataPort I SCSI cartridge cable connection.
CRU DataPort IV, V, and VII SCSI Cartridge
CRU DataPort IV, V, and VII narrow SCSI cartridges are eguipped with a dialer-type SCSI ID selector switch,
which allows you to externally name the SCSI drive identification number. You can set the hard drive SCSI ID
number by turning the rotary switch from 0 to 6 (positions 7, 8, and 9 are not used). When using an external SCSI
ID selector, the internal SCSI ID selector switch is set to 0. Refer to Figure 7 for details.
22 » CONNECTING THE SCSI ID SELECTOR SWITCH CRU P/N A4-003-0001, Rev B
