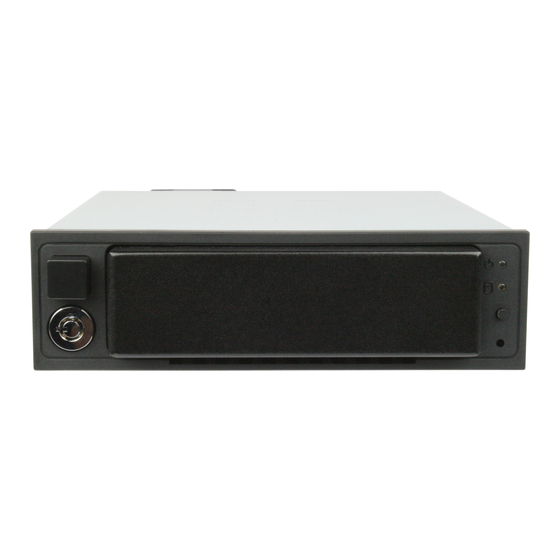

CRU Data Express DX175 User Manual

Up to 50,000 carrier insertions
Hide thumbs
1
2
3
4
5
6
Table of Contents

Advertisement

Quick Links

Download this manual
Data Express

User Manual

Features
•
Short frame length is ideal for fitting in smaller computers
•
Toolless entry into the drive carrier
•
Temperature Control Cooling System auto-adjusts fan speed
depending on need
•
Push-button carrier ejection mechanism
•
Keylock secures the carrier from accidental ejection
•
Rated for up to 50,000 carrier insertions
DX175
®

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Data Express DX175 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for CRU Data Express DX175

Summary of Contents for CRU Data Express DX175

  • Page 1: User Manual

    Data Express DX175 ® User Manual Features • Short frame length is ideal for fitting in smaller computers • Toolless entry into the drive carrier • Temperature Control Cooling System auto-adjusts fan speed depending on need • Push-button carrier ejection mechanism •...

  • Page 2: General Information

    Data Express DX175 User Manual 1 General Information 1.1 Identifying Parts Front Eject Button Carrier Status Lights Frame Power Button Keylock Error Reporting Disable Switch Rear SATA Power and Data Connectors Cooling Fan Drive Auto Spinup Config Fan Speed Config 1.2 LED Behavior...

  • Page 3: Frame Installation

    Data Express DX175 User Manual 2 Frame Installation a. Slide the DX175 receiving frame into an open 5.25-inch drive bay on your computer. b. Secure the frame to the chassis with the mounting screws provided. c. Attach a SAS or SATA data cable to the SAS/SATA data connector on the rear of the frame and attach the other end to the appropriate SAS or SATA host inside your computer.

  • Page 4: Other Configuration Options

    Data Express DX175 User Manual Your DX175 removable drive enclosure is now ready to use! If the drive inside is already formatted, it can be used right away. If the drive is brand new or its format is not compatible with your computer, the drive will need to be formatted before being used.

  • Page 5: Fan Speed

    Data Express DX175 User Manual 5.4 Fan Speed Adjust the fan speed by adjusting the “Fan” jumper located on the rear of the DX175 frame. Fan Jumper Settings • High - Fan is set to high speed • Low - Fan is set to low speed •...
  • Page 6 CRU or its suppliers be liable for any costs of procurement of substitute products or services, lost profits, loss of information or data, computer mal- function, or any other special, indirect, consequential, or incidental damages arising in any way out of the sale of, use of, or inability to use any CRU product or service, even if CRU has been advised of the possibility of such damages.
