Operating instructions VisionLine 2.0 camera systems

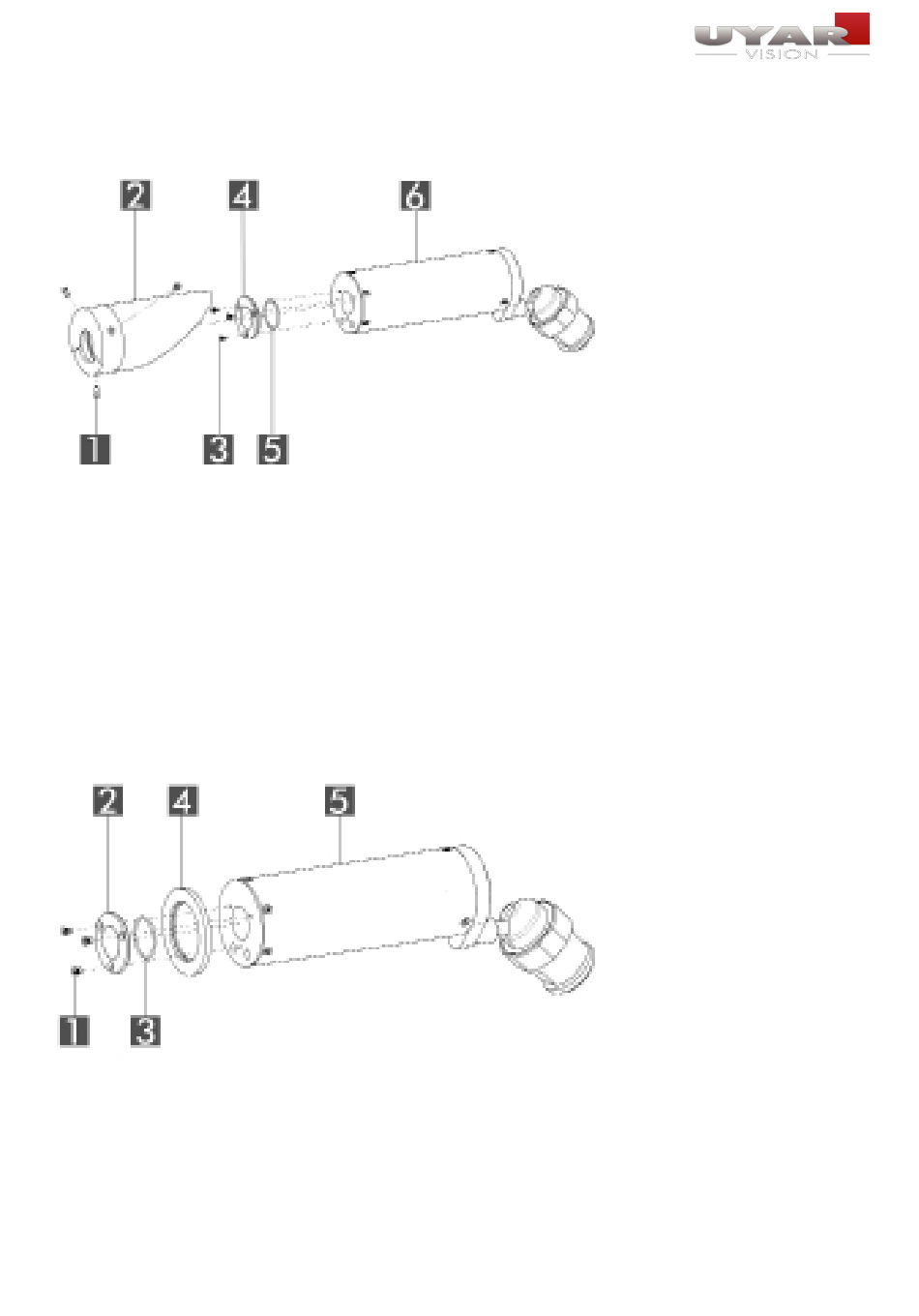

Pane change VisionLine EAC
First loosen the three countersunk screws (pos. 1) from the air attachment (pos. 2).
Then remove it from the camera housing (pos. 6). Three further countersunk screws (pos. 3) must be
loosened on the face side so that the pane (pos. 4) with holder can be loosened. Replace both the
pane and the supplied O-ring (pos. 5) behind the pane. First tighten the three countersunk screws
(pos. 3) on the front, then mount the air attachment.
Pane change VisionLine EC
Loosen the three countersunk screws (pos. 1) and remove the pane (pos. 2) incl. outer ring (pos. 4).
Replace both the pane (pos. 2) and the supplied O-ring (pos. 3) behind the pane. Then mount the
new pane including outer ring (pos. 4) and tighten the three countersunk screws (pos. 1) on the face
side.
1. Countersunk screw M3x8
2. Air attachment
3. Countersunk screw M3x5
4. Special glass pane
5. O-ring
6. Camera housing EAC
1. Countersunk screw M3x5
2. Special glass pane
3. O-ring
4. Outer ring
5. Camera housing EC
