Summary of Contents for UYAR VisionLine RWC 2.0

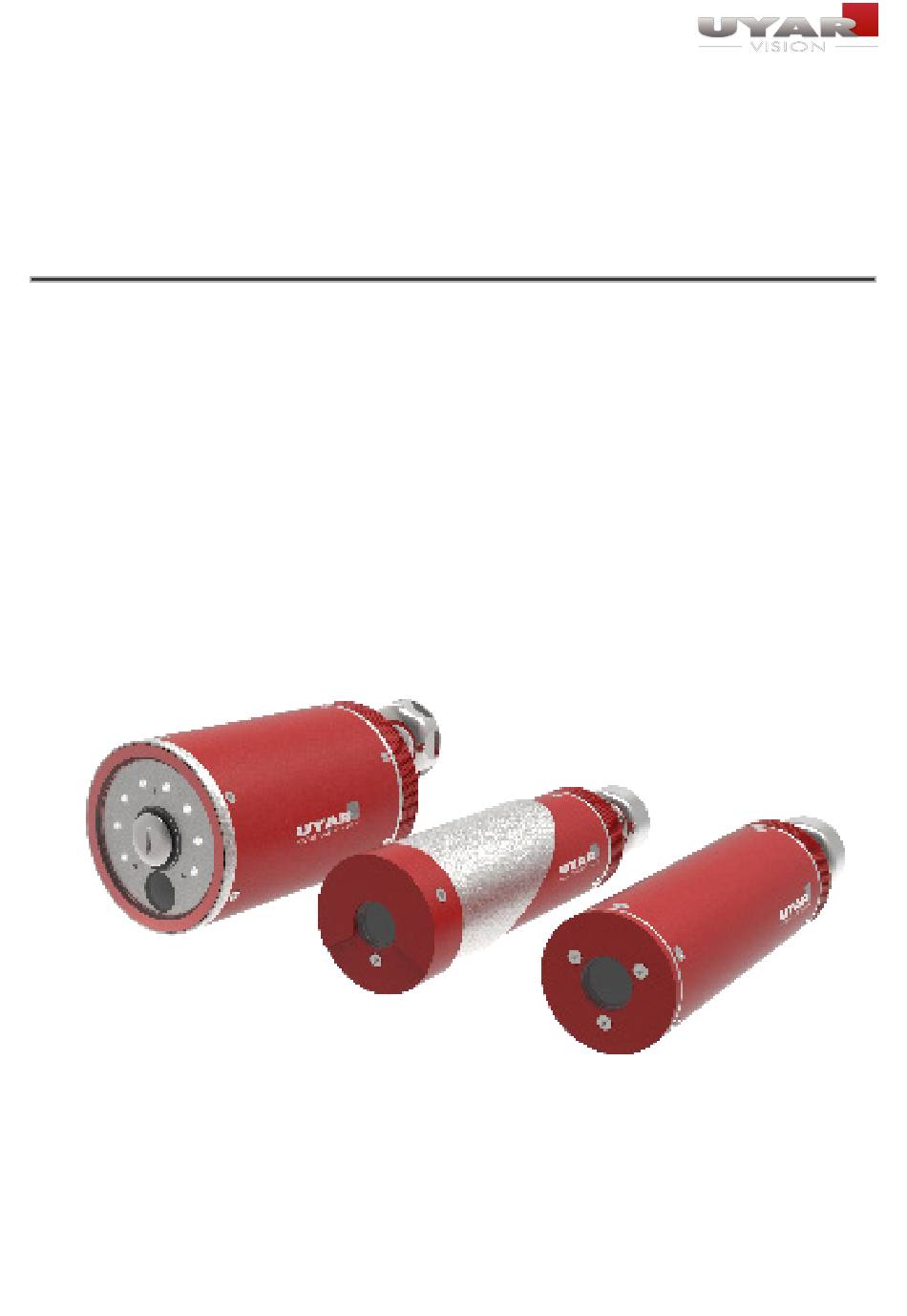

- Page 1 Operating instructions VisionLine RWC 2.0 VisionLine EAC 2.0 VisionLine EC 2.0...
-
Page 2: Table Of Contents
Operating instructions VisionLine Table of contents Notes on symbols and markings ......................3 Preface ................................4 Illustration of the EC declaration of conformity VisionLine ............5 1 Introduction ............................7 1.1 Liability ............................7 1.2 Warranty ............................7 1.3 Return and handling......................... 8 2 Description of the camera system .................... -
Page 3: Notes On Symbols And Markings
Operating instructions VisionLine 2.0 camera systems Notes on symbols and markings This operating manual uses symbols and images to help you understand how to use the product safely and to warn you of potential hazards due to incorrect connection, mounting, selection and operation. It is important that you know the meaning of the notes to this manual exactly in order to use this camera system correctly. -
Page 4: Preface
©2023 UYAR GmbH & Co. KG Copyright of the operating instructions The copyright to this manual remains with the UYAR GmbH & Co. KG. These operating instructions are intended for the operating personnel. It contains rules and drawings of a technical nature which are not allowed, neither as a whole nor in part, to be reproduced, distributed or exploited for the purposes of competition without authorization or communicated to others. -
Page 5: Introduction
In these cases the liability is transferred to the operator. UYAR GmbH & Co. KG will charge the operator for any resulting repairs. The manufacturer is not liable for any accidental loss resulting through thedue to use or non-use of this product, such as loss of business incomesprofits. -
Page 6: Return And Handling
The UYAR camera systems of the RWC and EAC series are mounted inside the working area of a machine tool. The rotating special pane of glass in the VisionLine RWC throws both the impinging coolant and the chips away to the outside and thus out of sight. - Page 7 Operating instructions VisionLine 2.0 camera systems VisionLine EC 2.0 Thanks to the well-sealed housing with IP67 standard, the VisionLine EC models can be used wherever conventional cameras fail after a short time. The housing of the VisionLine EC is not only dust- and waterproof: All seals are also resistant to oils and cooling lubricants.
-
Page 8: Structure Of The Camera Systems
Operating instructions VisionLine 2.0 camera systems Structure of the camera systems 2.2.1 VisionLine RWC 2.0 2.2.2 VisionLine EAC 2.0... - Page 9 Operating instructions VisionLine 2.0 camera systems 2.2.3 VisionLine EC 2.0 2.2.4 Hinge Hinge external ball joint...
-
Page 10: Installation
These installation instructions include the standard installation for industrial processing machines. Ho- wever, depending on the type of construction or the type of system another mounting style can be more appropriate. If you have any questions, please contact us directly: UYAR GmbH & Co. KG Carl-Bosch-Straße 6 33790 Halle (Westf.) -
Page 11: Mechanical Installation
Operating instructions VisionLine 2.0 camera systems Mechanical installation The following installation instructions are equally valid for the VisionLine RWC, EAC and EC ■ models. The respective installation instructions can be found in one of the following chapters, depending on your camera: 3.2.2 Installation of the wall mount ■... - Page 12 Operating instructions VisionLine 2.0 camera systems 3.2.2 Installation of the wall mount 1. Counter-sunk screw 2. Washer 3. Machine wall 4. O-ring 5. External ball joint If you have not purchased a magnetic holder for your camera system, a Ø8.2mm hole is required at the position specified in Chapter 3.1.
- Page 13 Operating instructions VisionLine 2.0 camera systems 3.2.3 Installation of the wall bushing „assembly seal“ If the camera is positioned, a suitable position for the wall duct of the hose package must be found. Ideally, this should be freely accessible. The position should also be determined in such a way that there is enough hose left outside the machine to be able to position the flying connection in a meaningful and accessible manner.
- Page 14 Operating instructions VisionLine 2.0 camera systems 1. Machine wall 2. Assembly seal Guide the hose package with the attached assembly seal (pos. 2) from the interior of the machine through the hole in the machine wall. The hose package must be aligned with the connections so that there is an optimal hose and cable routing.
-
Page 15: Flying Connection
Data of the camera side installed M12 connector: The appropriate circuit diagram can be found in the chapter: 3.4.1 Electrical connection diagram of the model VisionLine RWC 2.0 - 24V ■ 3.4.2 Electrical connection diagram of the models VisionLine EAC 2.0 / EC 2.0 - 24V ■... -
Page 16: Electrical Installation
The electrical installation is only permitted by a qualified electrician. Danger due to elec- tric currents! Please note the different information on the power connection for the VisionLine RWC and VisionLine EAC / EC models! 3.4.1 Electrical connection diagram of the VisionLine RWC 2.0 - 24V... - Page 17 Operating instructions VisionLine 2.0 camera systems 3.4.2 Electrical connection diagram of the VisionLine EAC 2.0 / EC 2.0 - 24V...
-
Page 18: Pneumatic Installation
Operating instructions VisionLine 2.0 camera systems Pneumatic installation CAUTION Make sure that the system is not under pressure before starting to work! Risk of injury! Notice for the Model VisionLine EC: Since the VisionLine EC model does not need to be supplied with compressed air, a blanking plug is located in the compressed air inlet of the control box when delivered. -
Page 19: Operation
Now switch on the camera system. ■ After powering up the system on the control box, it may take up to 30 seconds before the first ■ footage is transferred to your monitor. Your new UYAR camera system is now ready for use! -
Page 20: Control
Operating instructions VisionLine 2.0 camera systems Control After the successful commissioning, your camera system is already running in operating mode. Since our components are designed for continuous operation, you only have to turn off the camera for main- tenance. To do this, press the on/off switch on the control box. Users with an optional operating unit also have the option to deactivate the system using the “Main- tenance”... -
Page 21: Maintenance / Servicing
Maintenance / Servicing Of particular importance is the regular check for contamination and if necessary the prompt and thoro- ugh cleaning. Only with regular care and cleaning the trouble-free and permanent operation of UYAR camera systems is possible. With our special glass panes, which are installed in all models of the VisionLine RWC, you have acqui- red a low-maintenance and robust product that makes it easy to clean or even change the special glass pane. - Page 22 Operating instructions VisionLine 2.0 camera systems 4.3.1 Changing the special glass pane The special glass panes of our cameras are extremely robust and designed for continuous operation under the influence of cooling lubricantslant and metal chips. Nevertheless, the special glass pane is a spare or wear part on all models. The, permanent operation of cooling lubricants and metal chip bombardmentwhich can lead to deposits, scratches or other defects.
- Page 23 Operating instructions VisionLine 2.0 camera systems Pane change VisionLine EAC 1. Countersunk screw M3x8 2. Air attachment 3. Countersunk screw M3x5 4. Special glass pane 5. O-ring 6. Camera housing EAC First loosen the three countersunk screws (pos. 1) from the air attachment (pos. 2). Then remove it from the camera housing (pos.
-
Page 24: Error Diagnostics
Operating instructions VisionLine 2.0 camera systems Error diagnostics Disturbance / error Reason Remedy Power supply provided by Put power supply into operation costumer is out of service Rocker switch is in position „I“: System still remains out of service Power supply not connected Connect plug Fuse damaged / triggered Change the fuse... -
Page 25: Decomissioning / Disposal
Operating instructions VisionLine 2.0 camera systems 4.5 Decomissioning / Disposal According to the WEEE (Waste of Electrical and Electronic Equipment) guideline electro- nic and electrical devices does not belong into the household waste. This product and its components must be recycled or disposed separately. The consumer obliges to dispose the product in accordance with the legal regulations.
