Operating instructions VisionLine 2.0 camera systems
3.5

Pneumatic installation

CAUTION
Make sure that the system is not under pressure before starting to work! Risk of injury!
Notice for the Model VisionLine EC:
Since the VisionLine EC model does not need to be supplied with compressed air, a blanking plug is
located in the compressed air inlet of the control box when delivered. This is not allowed to be removed,
otherwise there is a danger of liquid entering the control box.

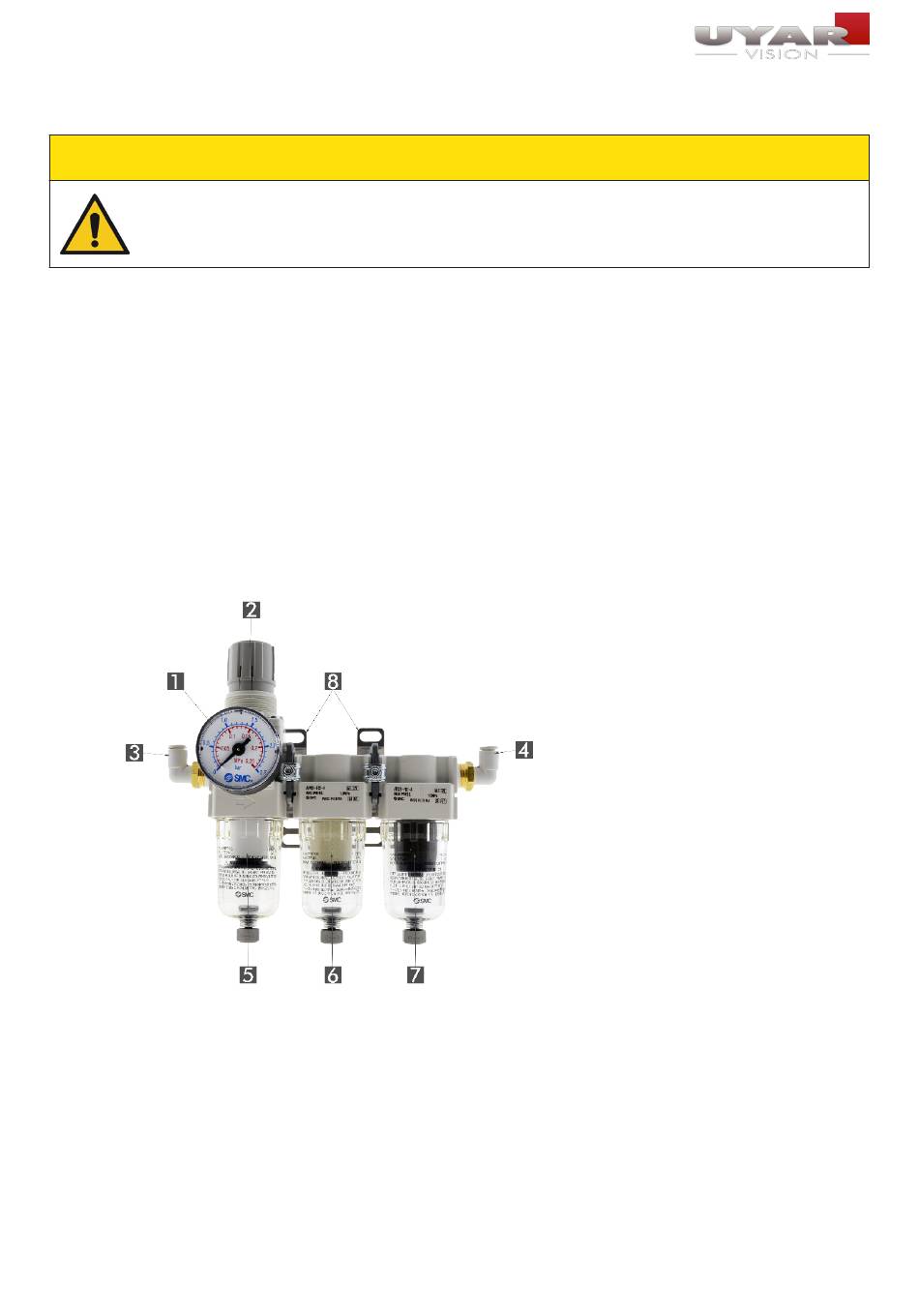

Mount the air service unit in a suitable place. This must be chosen so that:
the pressure gauge (pos.1) of the air service unit is always visible,
the pressure regulator (pos.2) of the air service unit is freely accessible and movable,
all pneumatic lines are not kinked, crushed or otherwise restricted in their function.
Connect the output side (pos.4) of the air service unit to the control box via a standard pneumatic hose,
type PA6.
Connect the input side (pos.3) of the air service unit to your in-house compressed air network with a
standard pneumatic hose.
18
1. Pressure gauge
2. Pressure regulator
3. Air service unit input
4. Air service unit output
5. Coarse filter
(5 micrometer)
6. Fine filter
(>0,3 micrometer)
7. Super fine filter
(>0,01 micrometer)
8. Mounting brackets
18
