Operating instructions VisionLine 2.0 camera systems
3.2.3 Installation of the wall bushing „assembly seal"
If the camera is positioned, a suitable position for the wall duct of the hose package must be found.
Ideally, this should be freely accessible. The position should also be determined in such a way
that there is enough hose left outside the machine to be able to position the flying connection in a
meaningful and accessible manner.

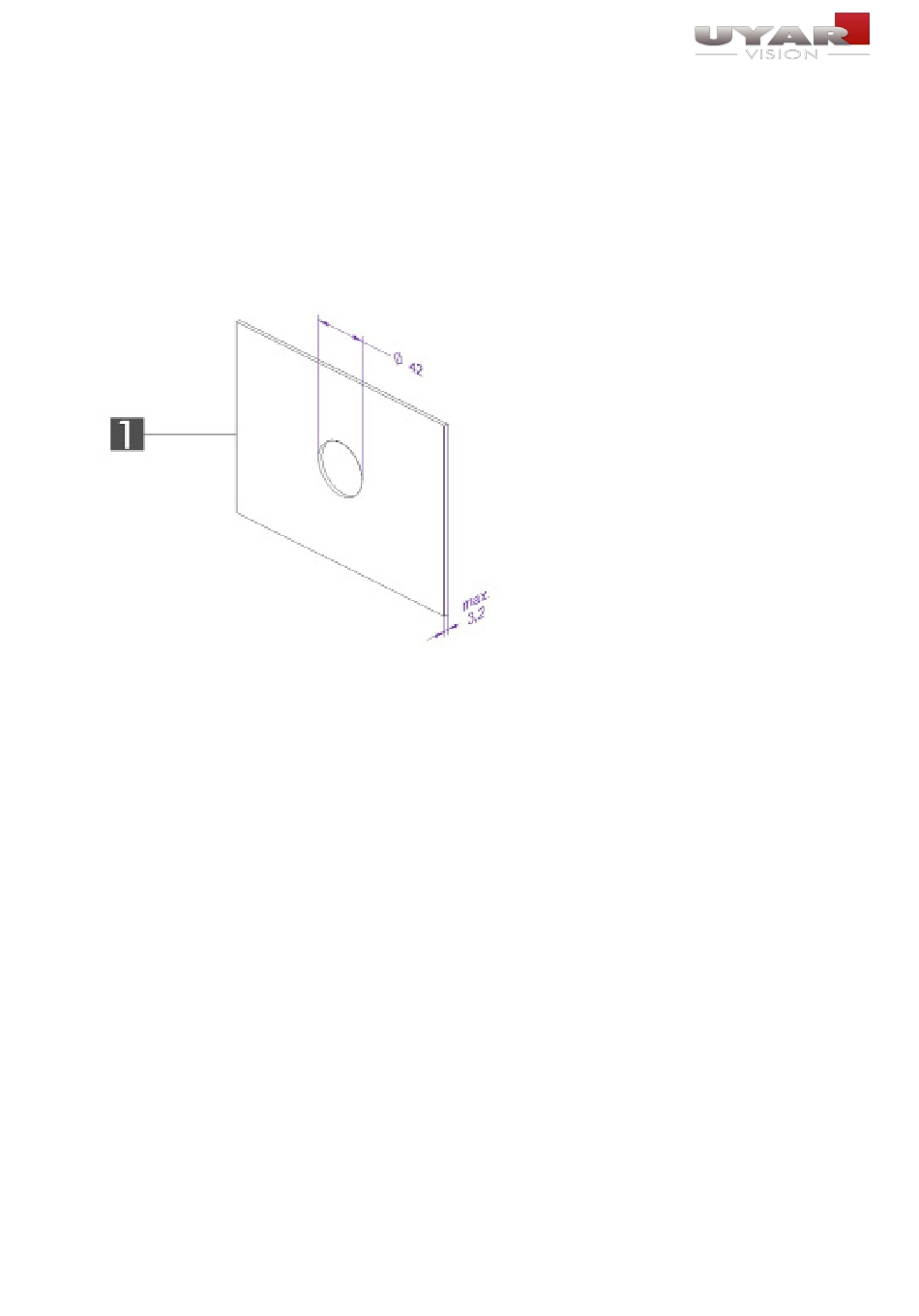

At the position just determined, a Ø42mm hole is required in the machine wall (pos. 1). This should
preferably be inserted into the machine wall using a step drill or a sheet metal punch. The maximum
machine wall thickness must not exceed 3.2mm. Make sure that the contact surfaces on both sides
are free of burrs and dirt so that the assembly seal seals properly.
1. Machine wall
13
13
