3.2.2 Installation of the wall mount
If you have not purchased a magnetic holder for your camera system, a Ø8.2mm hole is required at the
position specified in Chapter 3.1. Here the camera is attached to the external ball joint (incl. O-ring)

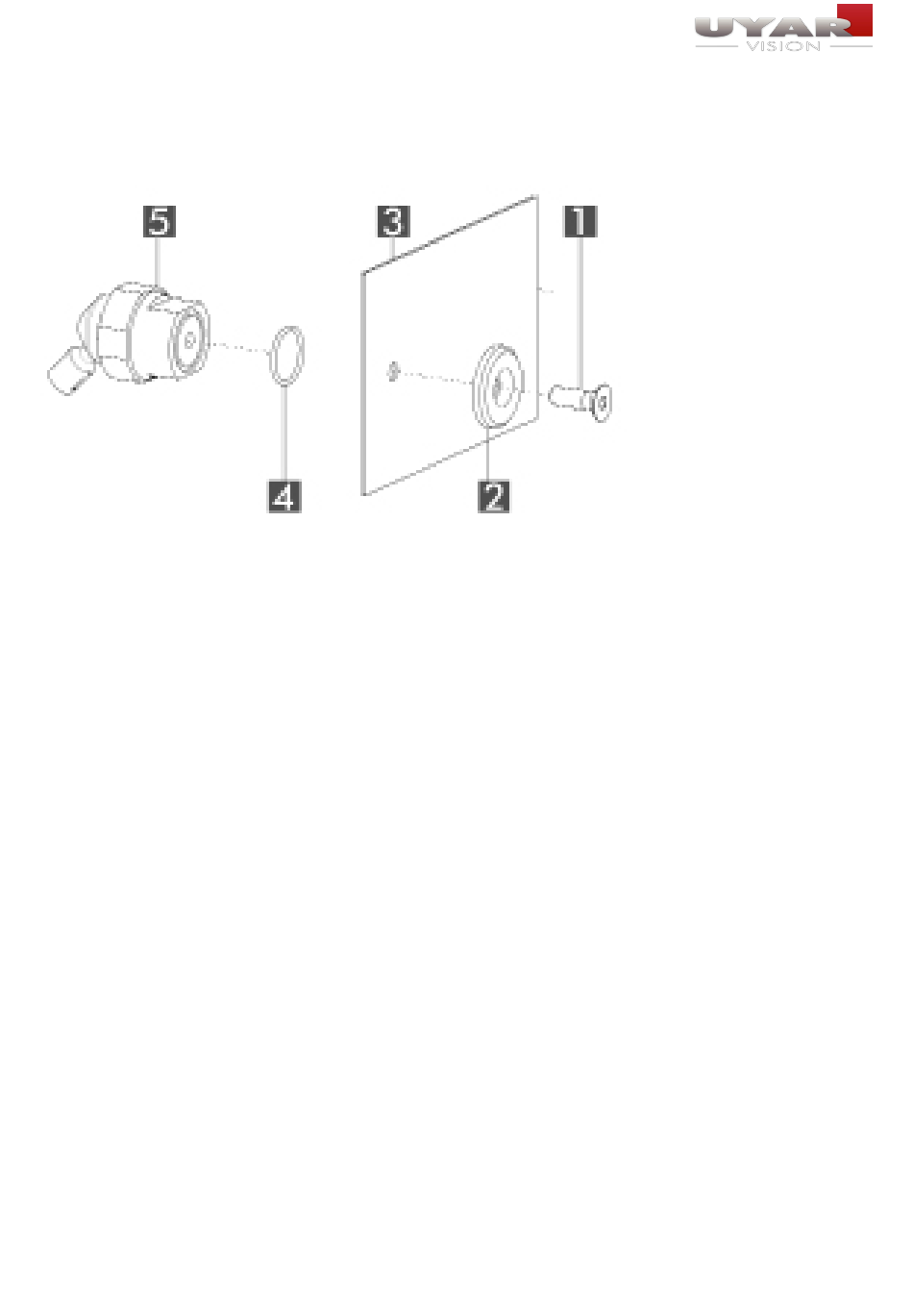

with washer and countersunk screw (included in delivery) according to the above exploded view.
12
1. Counter-sunk screw
2. Washer
3. Machine wall
4. O-ring
5. External ball joint
12
