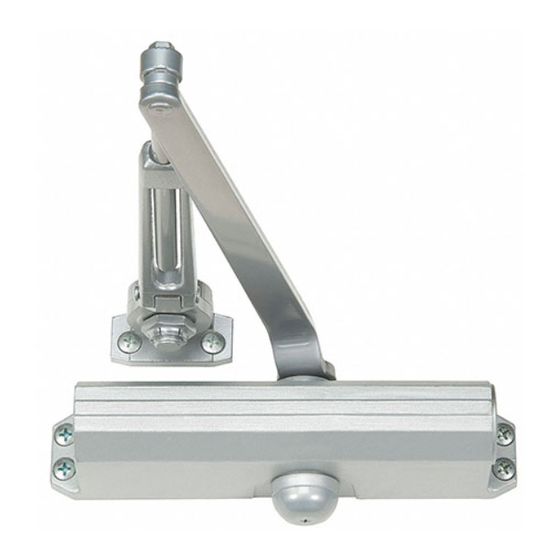

150 Series Non-Handed Door Closer
Arm Model 151
Installation Instructions
Hold Open arm model, adjustable size 1-6
WARNING
This product can expose you to lead which is known to the state of
California to cause cancer and birth defects or other reproductive harm.
For more information go to:
www.P65warnings.ca.gov.
Regular Arm
Right Hand Door - RH
Left Hand Reverse - LHR
Left Hand Door - LH
Right Hand Reverse - RHR
Included Components
Closer
Dial Screw
Pinion Cap
1/8" Hex Wrench
Screw Pack
(Refer to page 2 for a list of contents)
To Determine Your Hand of Door:
Right Hand
Reverse
LEFT
HAND
DOOR
Copyright © 2019, 2023, ASSA ABLOY Accessories and Door Controls Group, Inc. All rights reserved. Reproduction in whole or in part without
the express written permission of ASSA ABLOY Accessories and Door Controls Group, Inc. is prohibited.
80-9350-3504-010 Rev 2 02/23
.
Right Hand Door - RH
Left Hand Reverse - LHR
Shoe
Main Arm
Dial
Pinion Screw
Set
Screw
Hold Open Arm
Arm Assembly
To Identify Your Model:
Left Hand
Reverse
RIGHT
HAND
DOOR
Size
Code
Approved 2023-02-24
READ AND FOLLOW ALL INSTRUCTIONS.
SAVE THESE INSTRUCTIONS.
Top Jamb Mount
Left Hand Door - LH
Right Hand Reverse - RHR
Optional Components
50COV
Cover
Main Arm
214
Plate
Soffit Adapter Plate
588 Soffit Plate
Used with Parallel Arm
Closers Only
Tools Needed:
Spring Power
Adjustment
Date
Code
1 - 6 = 151
Parallel Arm
Right Hand Door - RH
Left Hand Reverse - LHR
Right Hand Reverse - RHR
Legacy Friction Hold Open Arm
6-32 x 5/16" Pan Head
Self Tapping Screw
NOTE: Legacy FHO arm has
installation orientation.
Refer to document number
80-9300-0003-000 for details.
Left Hand Door - LH
Advertisement
Related Manuals for Yale 150 Series
Summary of Contents for Yale 150 Series
- Page 1 150 Series Non-Handed Door Closer Arm Model 151 Installation Instructions Hold Open arm model, adjustable size 1-6 WARNING This product can expose you to lead which is known to the state of READ AND FOLLOW ALL INSTRUCTIONS. California to cause cancer and birth defects or other reproductive harm.
-
Page 2: Supplied Hardware
150 Series Hold Open Door Closer ATTENTION: y Always consult door/frame manufacturer for fastener compatibility. An incorrectly installed or improperly adjusted door closer can cause y Door and frame must be properly reinforced. property damage or personal injury. These installation instructions y Adjust closing time speed between 3 and 7 seconds from 90°... - Page 3 150 Series Hold Open Door Closer 150 Regular Arm Installation (Right Hand Shown) 1. Prepare door and frame. 1-3/4 (152) (44) 1-1/4 (32) (22) (19) 9-1/16 (230) Opening Dimension “A” to 100° 7 (178) 101° to 120° 6 (152) *121° to 180°...
- Page 4 150 Series Hold Open Door Closer 150 Top Jamb Arm Installation (Right Hand Shown) 1. Prepare door and frame. Opening Dimension “A” 9-1/16 to 100° 7-1/2 (191) (230) 101° to 120° 6 (152) (19) *121° to 180° 3-1/2 (89) Top of...
- Page 5 150 Series Hold Open Door Closer 150 Parallel Arm Installation (Right Hand Shown) 1. Prepare door and frame. 2-3/4 Door Dimension Dimension Dimension (70) Opening “A” “B” “C” (10) to 100° 9-1/4 (235) 7-5/8 (194) 8-5/8 (219) 101° to 130°...
- Page 6 Fax: 1-800-338-0965 yalecommercial.com Yale Commercial is a business associated with ASSA ABLOY Access and Egress Hardware Group, Inc., an ASSA ABLOY Group company. Copyright © 2019, 2023 ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved. 80-9350-3504-010 Rev 2 02/23 Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc.
