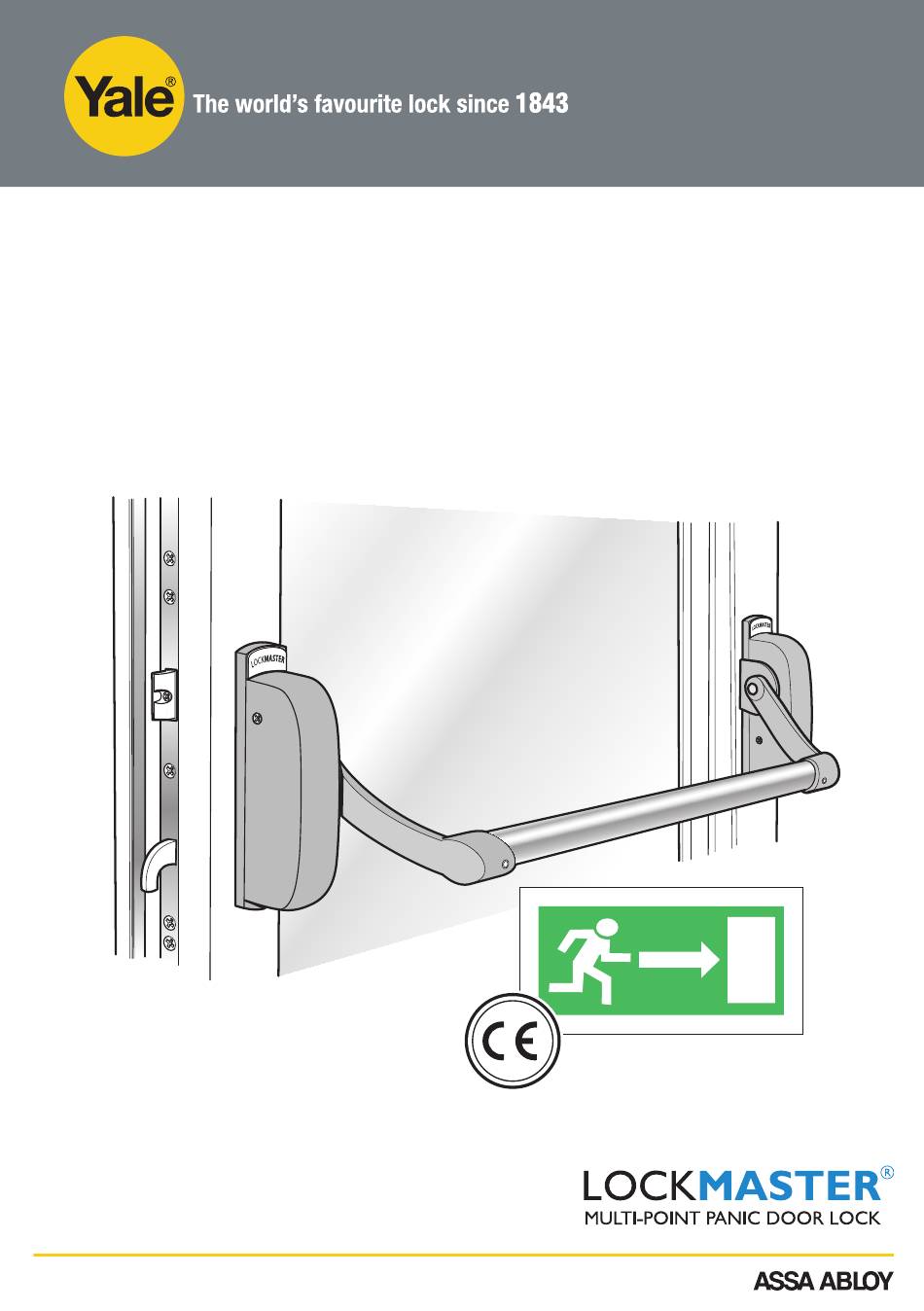

- Page 1 Lockmaster Panic Exit Device ® User Guide An ASSA ABLOY Group brand...
- Page 2 Certificate of Constancy of Performance (CoCoP) for your doorset. Any emergency exit device or panic exit device fitted to a doorset must have been tested and CE marked (Certificate of Performance available on the Yale DWS Web Site) to relevant standards EN 179, EN 1125, prEN 13633 or prEN 13637.
- Page 3 (03) Operations Hold Operating Mortice Panic Device To lock device (from inside) 1. Close the door fully and engage the latch 2. Slide the green snib upwards approx 10mm 3. Pull cross arm towards you in an upward arc to throw hooks and rollers to the locked position - The hooks and rollers should Lock engage in strikers...
- Page 4 (04) Maintenance and service inspection Undo covers and inspect parts and functionality Oil moving parts See Maintenance pages Keep log of inspections Panic push bar funtionality test Hold Lock Test functionality Door 1 Test functionality Door 2 (Double door system only) Open Hold Lock...
- Page 5 (05) Maintenance and service inspection - Optional Outside Access Device Undo covers and inspect parts and functionality Oil moving parts See Maintenance pages Keep log of inspections Test functionality Lock Test functionality Open Test functionality Lock 1 4 5 ° Open 3 5 °...
- Page 6 (06) Maintenance Log Book, page 1 Exit Door No. Location MAINTENANCE INSTRUCTIONS European Patent Application No. 09155542.5 NOTE: To ensure performance in accordance with BS EN1125 the following routine maintenance checks should be undertaken at regular intervals. WEEKLY A visual inspection and operation of the device to ensure that all components are working correctly. Ensure that the strikers are free from obstruction, latches move freely and pass by the striker when operated.
- Page 7 (07) Maintenance Log Book, page 2 Installation and Maintenance Requirements for Panic Exit Devices INSTALLATION AND FIXING INSTRUCTIONS European Patent Application No. 09155542.5 On double doorsets with rebated meeting stiles and where both leaves are fitted with exit devices, it is essential to check that either leaf will open when its respective device is activated and also that both leaves will open freely when both exit devices are operated simultaneously.
- Page 8 (08) Maintenance Log Book, page 3 Installation and Maintenance Requirements for Panic Exit Devices European Patent Application No. 09155542.5 Date Description Signature An ASSA ABLOY Group brand...
- Page 9 (09) Maintenance Log Book, page 4 European Patent Application No. 09155542.5 Date Description Signature An ASSA ABLOY Group brand...
- Page 10 (10) Maintenance Log Book, page 5 European Patent Application No. 09155542.5 Date Description Signature An ASSA ABLOY Group brand...
- Page 11 (11) Maintenance Log Book, page 6 European Patent Application No. 09155542.5 Date Description Signature An ASSA ABLOY Group brand...
-
Page 12: Support Available
Maintenance Ongoing maintenance guidance and record log PACKAGING THE YALE BRAND, with its unparalleled global reach and Yale Door and Window Solutions range of products, reassures more people in more countries School Street than any other consumer locking solution.
