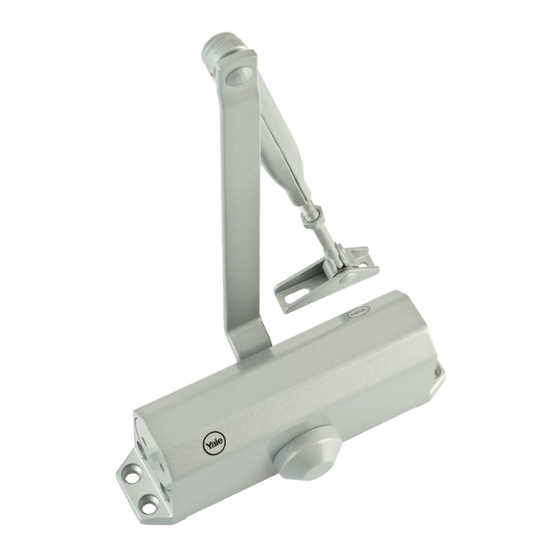

Yale 3000 Series Installation Instructions Manual

Parallel Rigid (PR), Holder/Stop,
Additional Closer Options:
- "DL" indicates Delayed Action closing.
- "T" indicates Thumbturn actuated hold open control; units
are handed.
Optional Accessories:
- 3148 Drop Plate (use with slim cover or no cover)
- 3158 Drop Plate (use with full cover)
- 293L, 293S, 890, 891 Soffit Plate Accessories.
NOTE: For special applications a separate door and frame preparation template is packed with these
instructions. In those cases, use this instruction sheet for installation sequence and closer adjustments only.

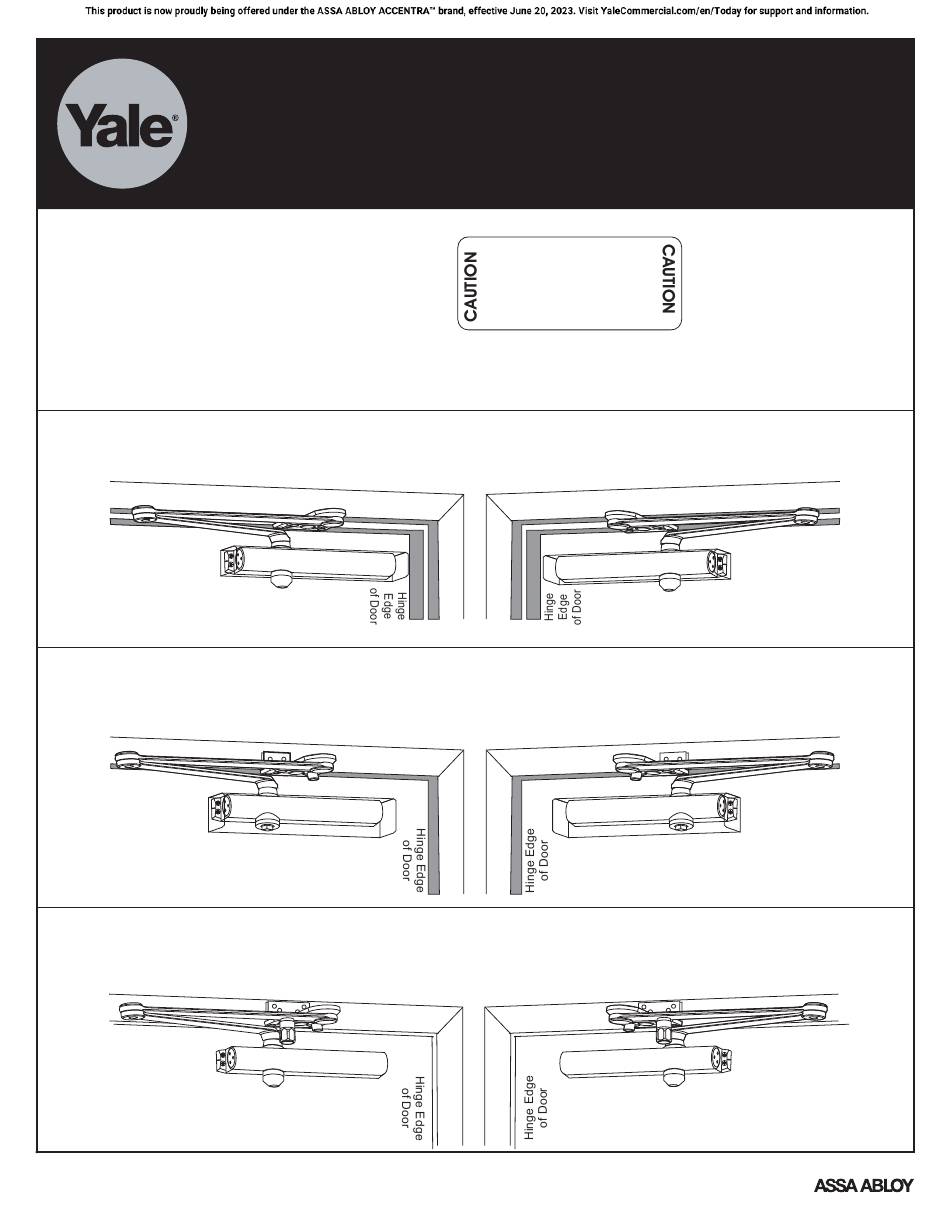

Closer mounts on opposite to hinge (push) side of door. PR3301 Parallel Rigid Non Hold Open arm illustrated. Slim Line Cover shown.
Right Hand Door – RH
Left Hand Reverse – LHR
Closer mounts on opposite to hinge (push) side of door. 3521 Holder/Stop arm illustrated. Full Cover shown.
Right Hand Door – RH
Left Hand Reverse – LHR
Closer mounts on opposite to hinge (push) side of door. 3521T Holder/Stop arm with Thumbturn Hold Open illustrated.
Closer Cover not shown. 293L accessory required for this application (supplied separately).
Right Hand Door – RH
Left Hand Reverse – LHR
An ASSA ABLOY Group brand
Non-Hold Open and Hold Open
Standard Frame Installation
See Pages 3 and 4
Narrow Frame Installation
890 and 891 accessories required for this application (supplied separately).
See Pages 3 and 4
Flush Partition Installation
See Pages 3 and 4
3000 Series
Holder/Stop with Thumbturn Arms
Installation Instructions
An incorrectly installed or improperly
adjusted door closer can cause
property damage or personal injury.
These instructions should be followed
to avoid the possibility of
misapplication or misadjustment.
Model Numbers Included:
PR3301/ PR330X
PR3311/ PR331X*
PR3501/ PR350X
PR3511/ PR351X*
3321(T) / 332X(T)
3521(T) / 352X(T)
Note 'X' Designates Size 2, 3, 4, 5, or 6
*Hold open units are handed
Left Hand Door – LH
Right Hand Reverse – RHR
Left Hand Door – LH
Right Hand Reverse – RHR
Left Hand Door – LH
Right Hand Reverse – RHR
80-9303-2209-010 (10-10)
