Watchguard AP430CR Quick Start Manual

WatchGuard
Quick Start Guide

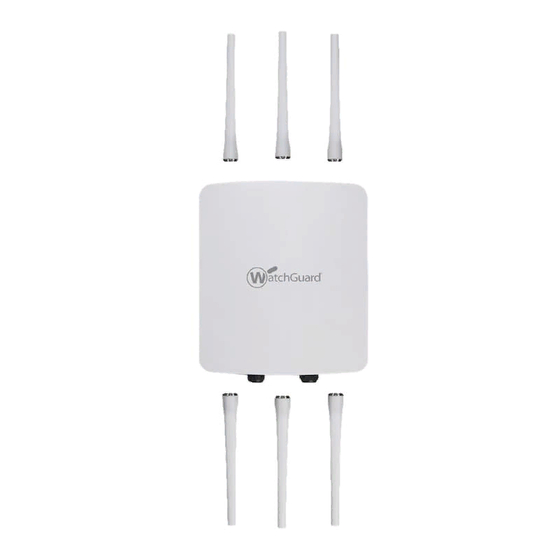

AP430CR
2
MOUNT THE AP
WALL MOUNT
POLE MOUNT
AP
®
Wall Mount Screws
Wall and Pole Ground
Pole Mount
Mount Screws Screw
Clamps
1
ACTIVATE YOUR AP
GO TO:
watchguard.com/activate
3
CONNECT THE AP
Plug one end of the Ethernet cable from your network
into the LAN 1 (PoE+) port on the bottom of the AP.
Make sure the other end of the Ethernet cable is
connected to your network through a hub, switch, or
injector with PoE+ (802.3at) power enabled.
REV DESCCRIPTION
A
Access Point connected to PoE+ injector
Access Point connected to switch with PoE+ power
A0
UNIT SCALE SHEET MODEL No. AP430CR
DEG
ANGLE MM 0,333 1 of 1 PART NAME
POLE MOUNT
A B C D
DIM
0-5 0.02 0.05 0.10 0 -30 0.1 APPROVED CHECKED DESIGNED PART No.
5-10 0.05 0.10 0.15 31 -60 0.3
10-50 0.10 0.15 0.20 61 -90 0.5 Tony Peace Peter
LOCATION SIGN DATE
Peter
11-May-21
PoE+
REV A
